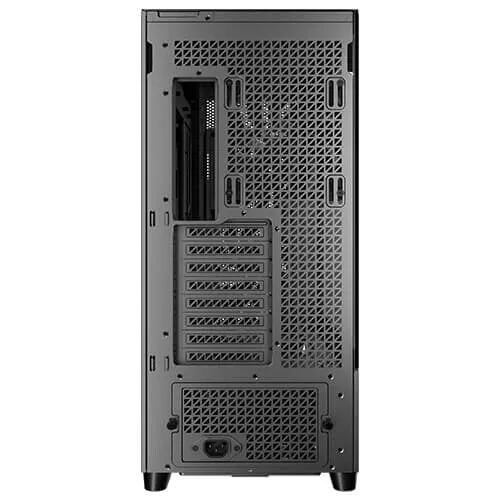

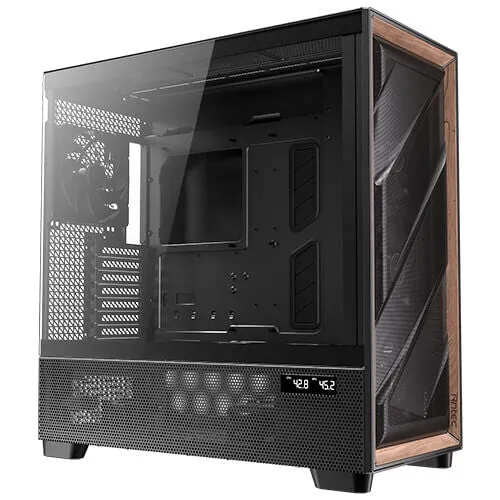

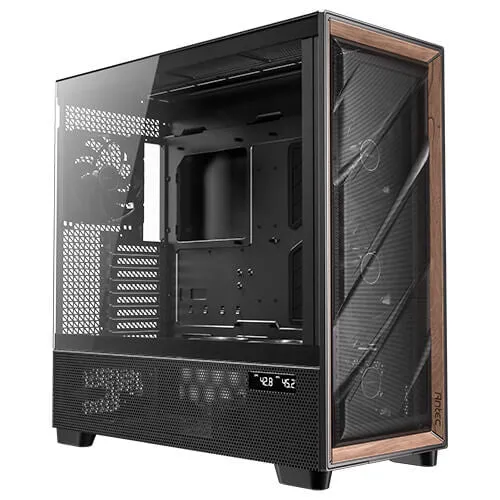

Antec FLUX PRO EUV Full Tower Black, Wood
- Full Tower PC Gaming
- ATX, EATX, ITX, micro ATX
- Supported HDD sizes: 2.5,3.5″ HDD/SSD combo cage
- Number of 2.5″ bays: 2 Number of 3.5″ bays: 4
- Side window Tempered glass panel(s) Anti-dust filter
- Glass, Plastic, Steel, Tempered glass, Wood
- Black, Wood
FLUX PRO
Full Tower Case
Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 6 fans included, delivering enhanced GPU cooling performance.
Flux Airflow
Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.
Multi-Directional Vent Design
Pre-Installed
6 x High-Performance
PWM FANs
With built-in ARGB &
PWM fan control hub in sync with M/B
Flux Vertical Cooling
Air intake via the PSU chamber maximizes heat dissipation while enhancing the intake effect for the graphics card.
Flux Horizontal Cooling
Air intake via the front mesh provides smooth venting channel throughout the case.
Premium Wood
Front panel is crafted with a combination of metal mesh and wood (walnut) to create a high-quality texture with different materials, integrating seamlessly into your home design.
Innovative iShift PSU 90° Mount
In addition to the standard PSU mount orientation,a 90-degree rotated option powered by the includedextension cable is available. Plug in the cable connectorfrom the right side, routing has never been easier.
Support 180mm long PSU.
PSU Installation
Left side of PSU chamber is detachable, making it easy to install the power supply.
CPU/GPU Dual Temperature Display
Intuitive hardware temperature display design with 4 different modes:
– GPU & CPU On
– GPU & CPU Off
– Only CPU On
– Only GPU On
*Antec iUnity software must be installed.
ANTEC IUNITY
The Antec iUnity provides instant data on PC specs, loads, and usage.
Removable Top Cooling Bracket
Mount the fans/radiators on the cooling bracket first and install the cooling bracket back to the case.
Removable Cooling Bracket on Top of PSU Shroud
When fans (2 available) are installed on the case bottom, remove the top shroud bracket to maximize the airflow, fulfilling the optimal vertical cooling scheme.
Removable Cooling Bracket on Top of PSU Shroud
Remove all three PSU shroud covers to install 3 x 120mm fans or a 360mm push-pull radiator.
Removable Front Cooling Bracket
– Vertically adjustable to 5 positions to fit the huge top AIO.
– Full cut-out design for enhanced air intake.
– Can install fans or radiators.
Recommended Water Cooling Configuration
Fan & Radiator Support
Can only accommodate Top 420mm + Front 360mm radiator, or Front 420mm + Top 360mm radiator at the same time.
Support Vertical GPU
Mount With Vertical Bracket
Fully-open PCI slot covers can be removed to install the graphics card vertically.
Tool-Free Panel Design
Optimal Cable Routing Experience
Cable Management
– Cable tie x 3
– Velcro strap X 3
Modular Hard
Drive Cage
I/O Panel
Dust plugs included.
Bottom full-size pull-out dust filter
For easy cleaning and strong dust prevention.
| Design | |
|---|---|
| Maximum PSU length | 47 cm |
| Maximum graphics card length | 45.5 cm |
| Maximum CPU cooler height | 19 cm |
| LED indicators | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 8 |
| Number of internal 3.5″ bays | 4 |
| Number of 2.5″ bays | 2 |
| Number of 3.5″ bays | 4 |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX |
| Product colour | Black, Wood |
| Material | Glass, Plastic, Steel, Tempered glass, Wood |
| Type | PC |
| Form factor | Full Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply location | Bottom |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2×2 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Pulse-width modulation (PWM) support | Yes |
| Top radiator sizes supported | 120,240,360 mm |
| Rear radiator sizes supported | 120,140 mm |
| Bottom radiator sizes supported | 120,240 mm |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Bottom fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 140 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 140 mm |
| Storage | |
|---|---|
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5″ |
| Weight & dimensions | |
|---|---|
| Weight | 13.6 kg |
| Height | 545 mm |
| Depth | 530 mm |
| Width | 245 mm |
| Packaging data | |
|---|---|
| Package weight | 16.6 kg |
