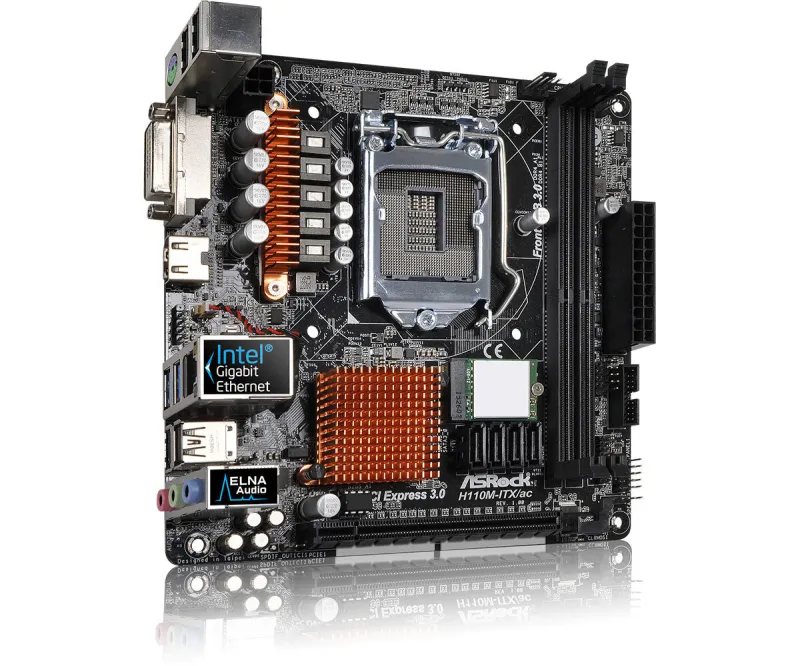

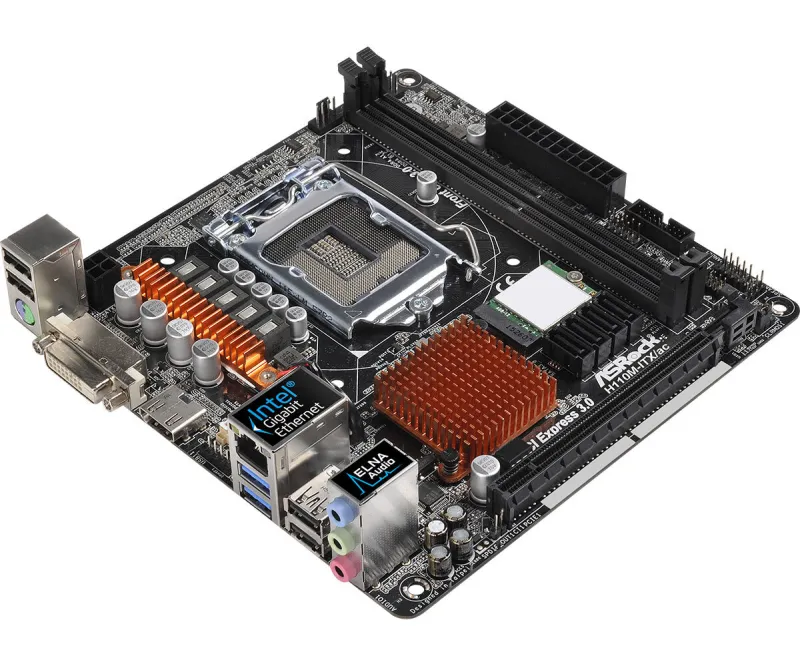

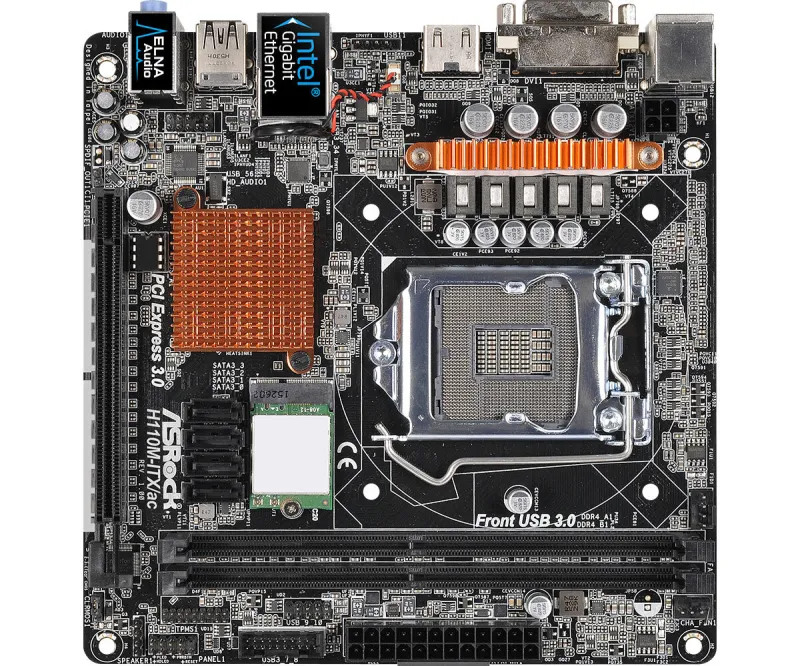

Asrock H110M-ITX/ac Intel® H110 LGA 1151 (Socket H4) mini ITX
- Intel LGA 1151 (Socket H4) Intel® Celeron®, Intel® Pentium®
- Mini PC mini ITX Intel® H110 Realtek ALC892 7.1 channels
- DDR4-SDRAM 2 DIMM Maximum internal memory: 32 GB
- M.2, SATA III
- Intel 1024
- BIOS type: UEFI AMI 64 Mbit ACPI version: 5.0
- Gigabit Ethernet Wi-Fi Bluetooth 4.0
– ASRock Super Alloy
– Supports 6th Generation Intel® Core™ Processors (Socket 1151)
– Supports DDR4 2133
– 1 PCIe 3.0 x16
– Graphics Output Options: DVI-D, HDMI
– 1 Dual Band 802.11ac WiFi + BT v4.0 Module, 2 ASRock WiFi 2.4/5 GHz Antennas
– 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
– 4 SATA3, 1 M.2
– 4 USB 3.0 (2 Front, 2 Rear)
– Supports Full Spike Protection, ASRock Live Update & APP Shop
| Processor |
| Processor thermal power (max) |
95 W |
| Intel Core i3/i5/i7/i9 series |
i3-6xxx, i5-6xxx, i7-6xxx |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
Intel® Celeron®, Intel® Pentium® |
| Processor socket |
LGA 1151 (Socket H4) |
| Processor manufacturer |
Intel |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
32 GB |
| Supported memory clock speeds |
2133 MHz |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR4-SDRAM |
| Storage controllers |
| Supported storage drive interfaces |
M.2, SATA III |
| Graphics |
| Discrete graphics support |
Yes |
| DirectX version |
12.0 |
| Maximum resolution |
4096 x 2160 pixels |
| Graphics card family |
Intel |
| Parallel processing technology support |
Not supported |
| Maximum graphics card memory |
1024 MB |
| Internal I/O |
| TPM connector |
Yes |
| Chassis intrusion connector |
Yes |
| Number of chassis fan connectors |
1 |
| CPU fan connector |
Yes |
| Number of EATX power connectors |
1 |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |
| Rear panel I/O ports |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| DVI-D ports quantity |
1 |
| HDMI ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
4 |
| Network |
| Bluetooth version |
4.0 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Wake-on-LAN ready |
Yes |
| LAN controller |
Intel® I219-V |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Yes |
| Cooling type |
Passive |
| Power source type |
ATX |
| PC health monitoring |
CPU, Fan, Temperature, Voltage |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC892 |
| Motherboard chipset |
Intel® H110 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
mini ITX |
| Component for |
Mini PC |
| Expansion slots |
| Number of M.2 (M) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| BIOS |
| ACPI version |
5.0 |
| BIOS memory size |
64 Mbit |
| BIOS type |
UEFI AMI |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Packaging content |
| Drivers included |
Yes |
| Cables included |
SATA |
| Other features |
| Quick installation guide |
Yes |
