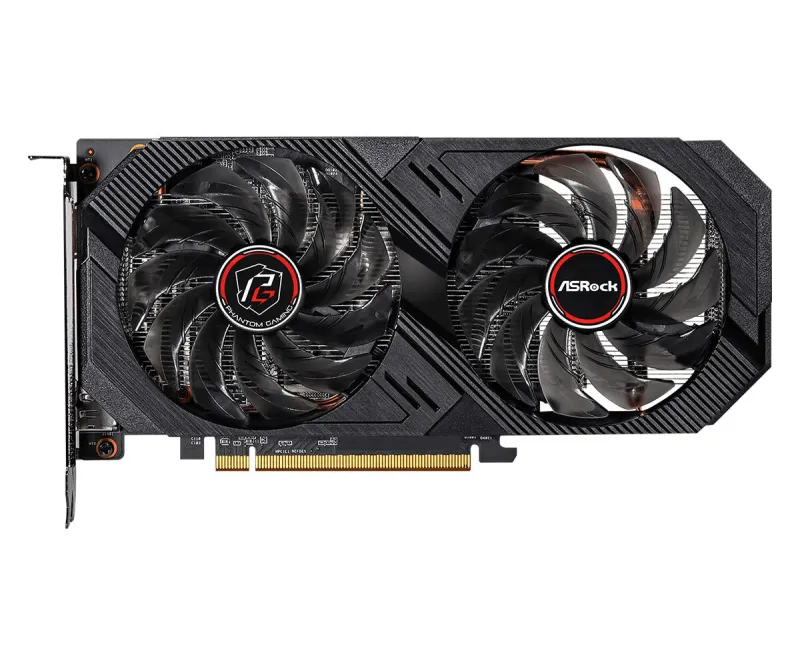

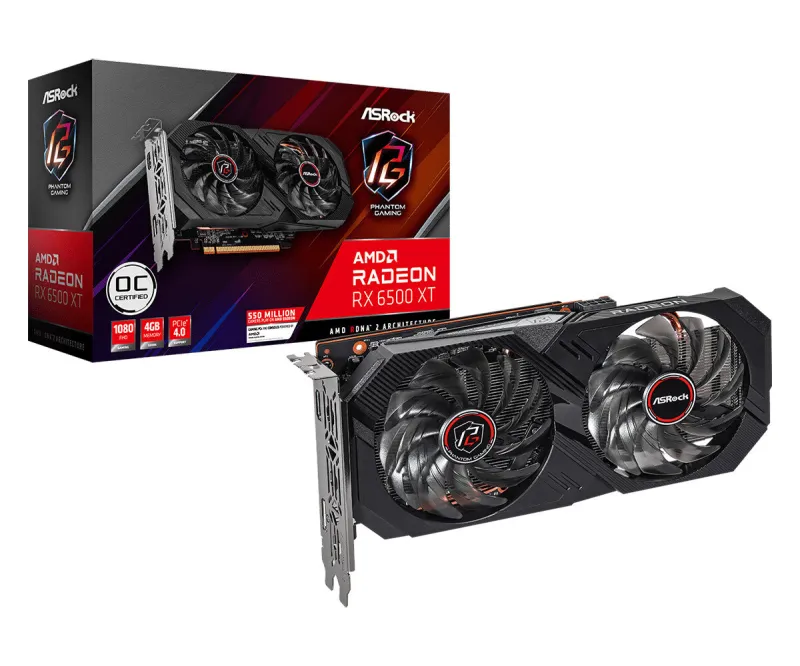

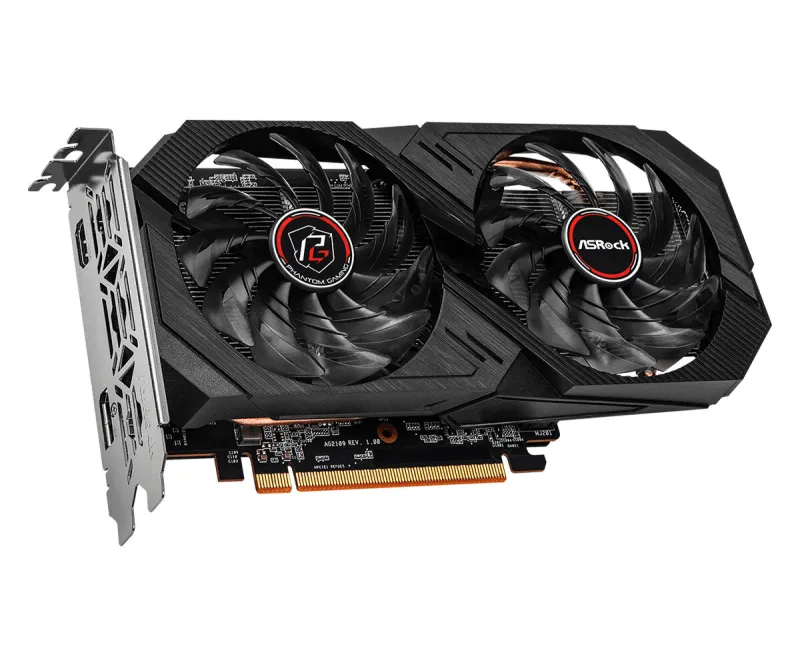

Asrock Phantom Gaming RX 6500 XT 4GB OC AMD Radeon RX 6500 XT GDDR6
- Dual Fan Design
- Stylish Metal Backplate
- Striped Axial Fan
- 0dB Silent Cooling
- Super Alloy Graphics Card
- ASRock Tweak 2.0
- AMD FidelityFX™ Super Resolution
- Hardware Raytracing
Dual Fan Design
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.
Premium 90A Power Choke
Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock’s high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
ASRock Tweak 2.0
Pro and Easy-to-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
PCI Express 4.0 Support
This graphics card features PCI Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. Get ready for the next generation of PC gaming.
| Processor | |
|---|---|
| Stream processors | 1024 |
| Maximum displays per videocard | 2 |
| Processor boost clock speed (Gaming mode) | 2650 MHz |
| Processor boost clock speed | 2820 MHz |
| Processor frequency | 2365 MHz |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Radeon RX 6500 XT |
| Graphics processor family | AMD |
| Memory | |
|---|---|
| Memory bandwidth (max) | 144 GB/s |
| Data transfer rate | 18 Gbit/s |
| Memory clock speed | 18000 MHz |
| Memory bus | 64 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 4 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 400 W |
| Weight & dimensions | |
|---|---|
| Height | 129 mm |
| Depth | 42 mm |
| Length | 240 mm |
| Weight | 459 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| General | |
|---|---|
| Product family | Phantom Gaming |
| Product series | D |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
