ASUS A23 PLUS TG ARGB WHITE
- Hidden Connectors: Compatible with motherboards featuring hidden connectors, which maximizes clean cable management for a clutter-free build
- Broad Compatibility: A23 PLUS supports up to 360 mm radiators, graphics cards up to 380 mm long and CPU air coolers up to 165 mm tall

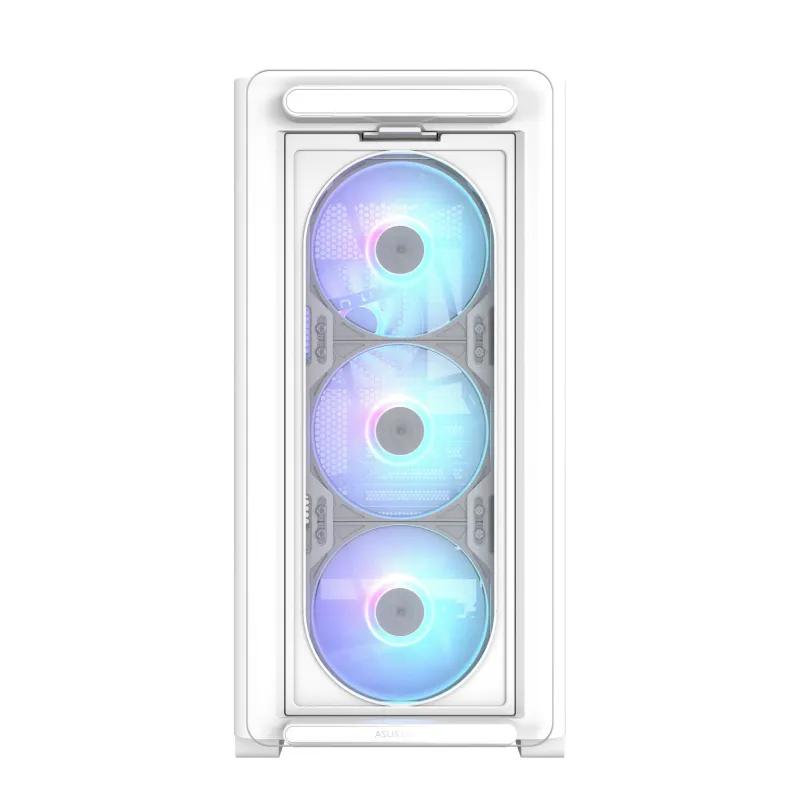

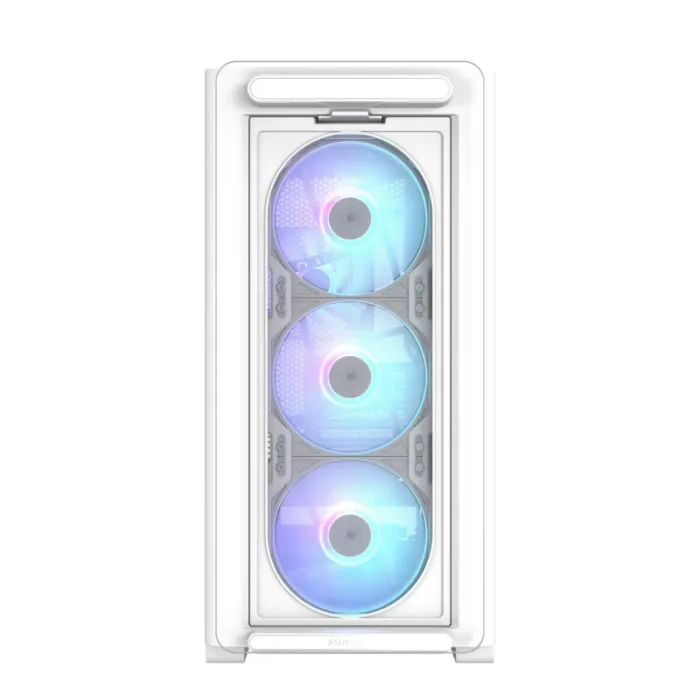

- Standoff-mounted tempered-glass front panel: Enlarged window design lets users fully enjoy the captivating visuals of the front ARGB fans

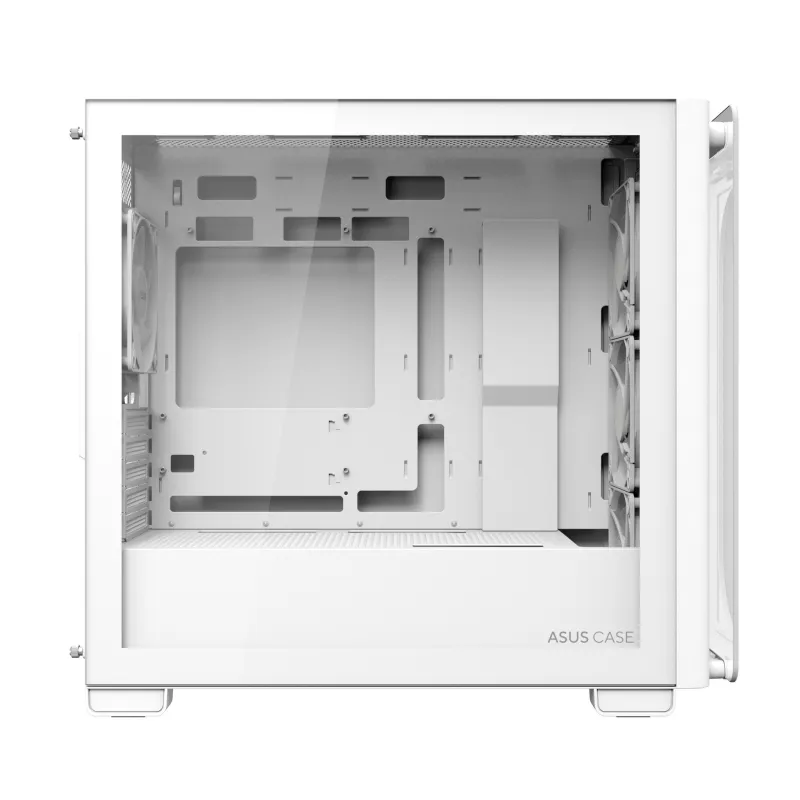

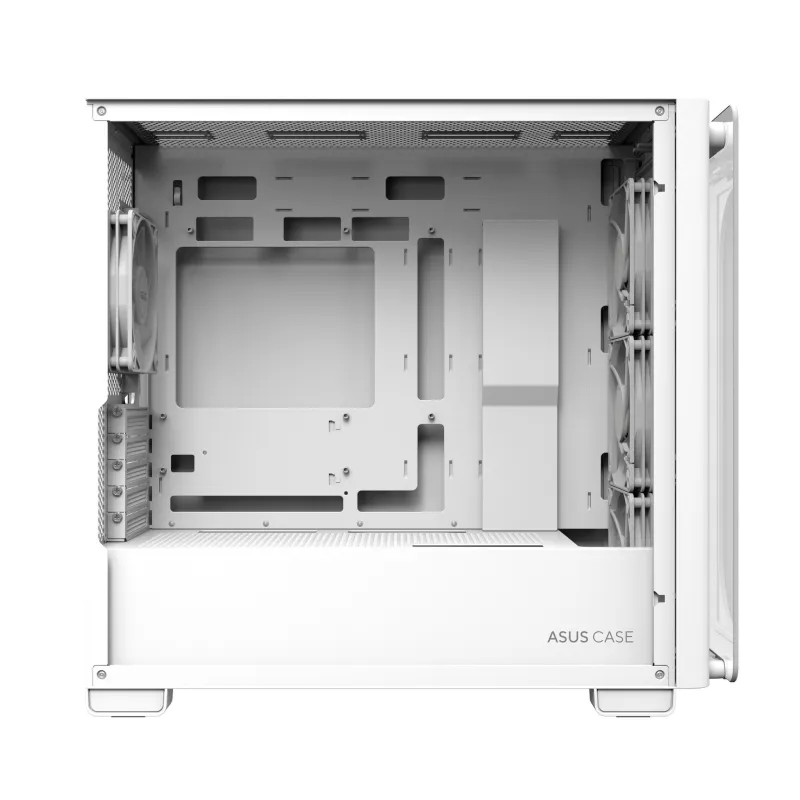

- Ample cable management: The A23 PLUS provides a compartment behind the motherboard that is 33 mm wide to keep your wiring tucked away and tidy
Discover Hidden Potential
The ASUS A23 PLUS is a PC case crafted for minimalist mainstream DIY PC builders, with support for a variety of AIO coolers and graphics cards, and the four pre-installed ARGB fans provide plenty of airflow potential to keep things running smoothly.
Hidden Connectors
In addition to supporting conventional mini-ITX and micro-ATX motherboards, the A23 PLUS is also compatible with the TUF GAMING B760M-BTF WIFI, whose innovative connectors and headers are located on the underside to maximize clean cable management.
| Design |
| Maximum PSU length |
21 cm |
| Maximum graphics card length |
38 cm |
| Maximum CPU cooler height |
16.5 cm |
| On/off button |
Yes |
| Cable management |
Yes |
| Tempered glass panel(s) |
Yes |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Number of expansion slots |
5 |
| Number of 2.5″ bays |
3 |
| Number of 3.5″ bays |
2 |
| Supported motherboard form factors |
micro ATX, Mini-ITX |
| Product colour |
White |
| Type |
PC |
| Power supply |
| Power supply included |
No |
| Ports & interfaces |
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Cooling |
| Top radiator sizes supported |
140,240,360,120,280 mm |
| Rear radiator sizes supported |
120 mm |
| Front radiator sizes supported |
120,140,240,280,360 mm |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 120 mm |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
3x 120 mm |
| Storage |
| Supported HDD sizes |
2.5,3.5″ |
| Weight & dimensions |
| Weight |
8.9 kg |
| Height |
479 mm |
| Depth |
450 mm |
| Width |
220 mm |
| Packaging data |
| Package weight |
10.1 kg |
| Package height |
493 mm |
| Package depth |
566 mm |
| Package width |
290 mm |
