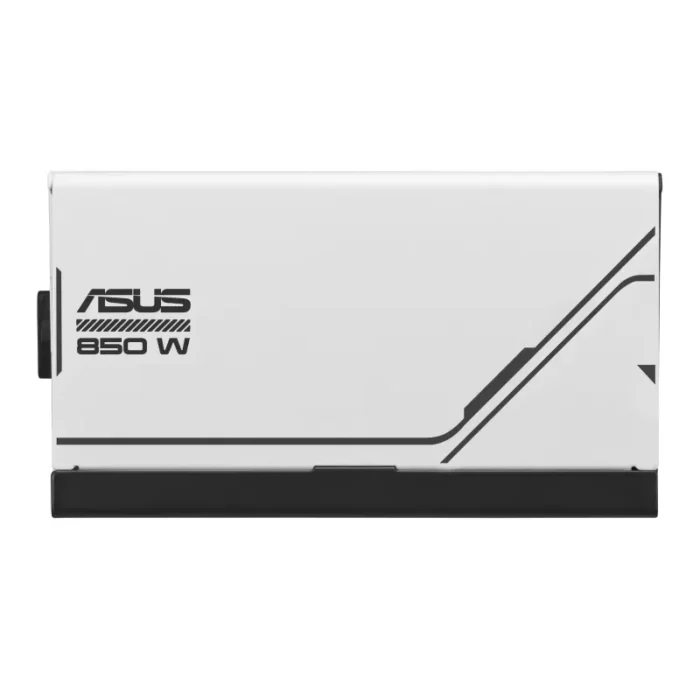

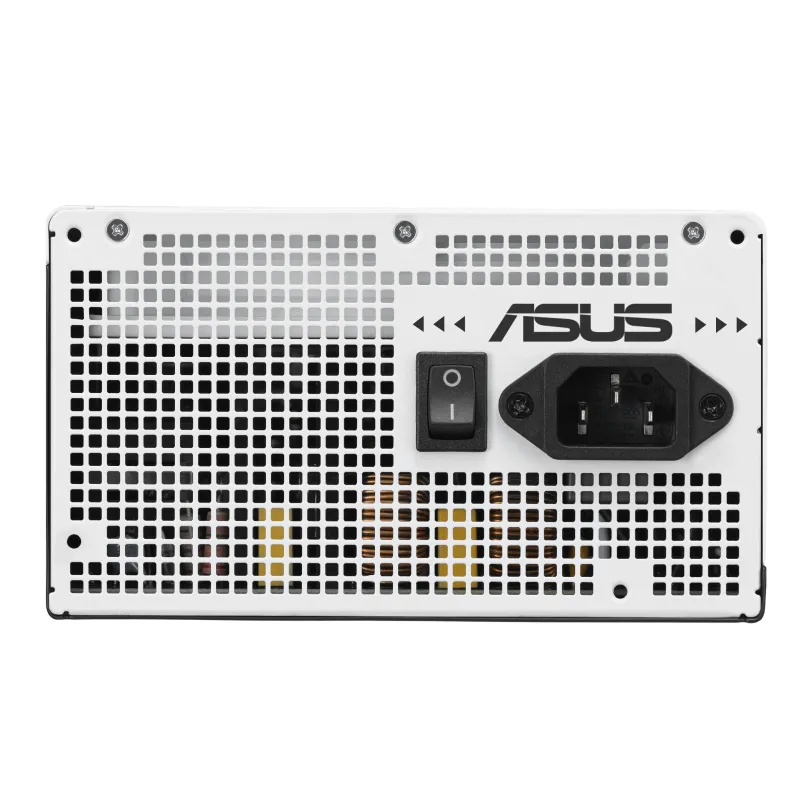

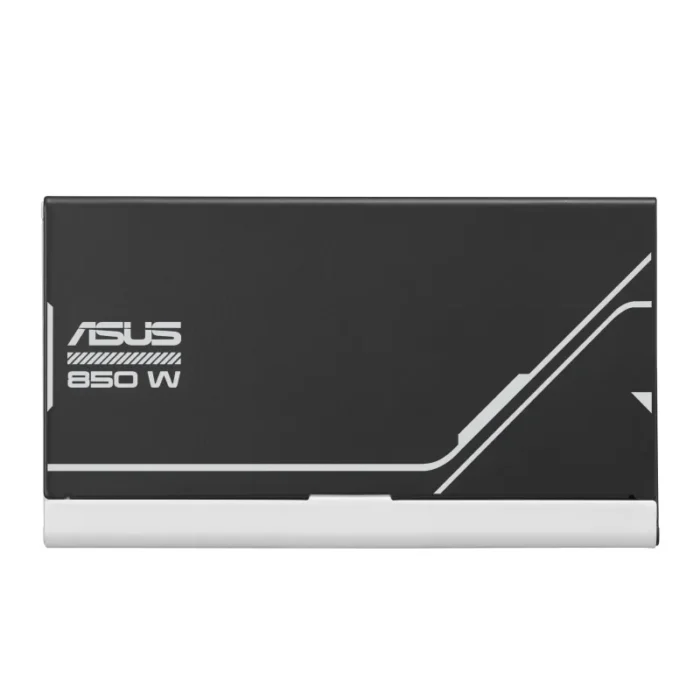

ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White
- Dual ball fan bearings that can last up to twice as long as sleeve bearing designs
- An 80 Plus gold certification is the result of low-ESR capacitors and other premium components
- ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards
Prime Performance
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
| Power |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Max output current (+5Vsb) |
2.5 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V) |
70.5 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
12.5 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
110 W |
| Combined power (+12V) |
846 W |
| Combined power (+3.3V) |
110 W |
| Power Factor Correction (PFC) type |
Active |
| AC input voltage |
100 – 240 V |
| Total power |
850 W |
| Ports & interfaces |
| Cabling type |
Fully-Modular |
| CPU power cable length |
65 cm |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power cable length |
67.5 cm |
| PCI Express power connectors (8-pin) |
3 |
| PCI Express power connectors (16-pin) |
1 |
| Peripheral (Molex) power cable length |
400,150 mm |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| SATA power cable length |
400,120 mm |
| Number of SATA power connectors |
5 |
| Motherboard power cable length |
61 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
| Mean time between failures (MTBF) |
120000 h |
| ATX version |
3.0 |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
| Illumination |
Yes |
| Fan location |
Top |
| Number of fans |
1 fan(s) |
| Cooling type |
Active |
| Product colour |
Black, White |
| Certificates |
| Compliance certificates |
RoHS |
| Packaging content |
| Cables included |
CPU, PCIe, SATA, Peripheral (Molex) |
| Weight & dimensions |
| Weight |
1.5 kg |
| Height |
86 mm |
| Depth |
150 mm |
| Width |
150 mm |
| Packaging data |
| Package type |
Box |
| Package weight |
2.92 kg |
| Package height |
144 mm |
| Package depth |
208 mm |
| Package width |
346 mm |
