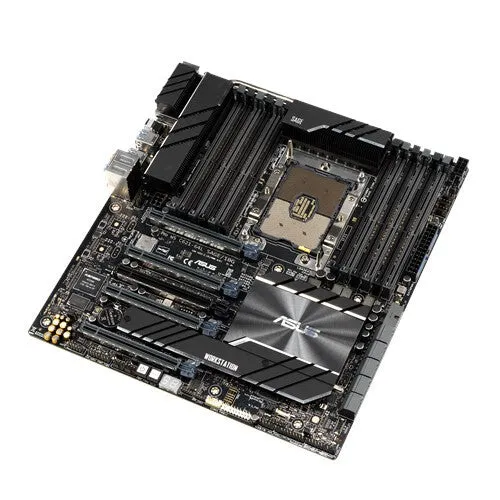

ASUS MB Pro WS C621-64L SAGE/10 G Intel® C621 LGA 3647 (Socket P) CEB

• Single-socket motherboard is designed for Intel Xeon W-3200 processors and Intel Xeon Scalable processors
• Dual Intel 10G LAN offers increased data throughput and improved efficiency, making it ideal for large file transfers and backup
• Fits up to four double-decked actively or passively cooled graphics cards with true PCIe Gen 3 x16 link bandwidth, and supports NVIDIA Tesla and Quadro
• Supports up to 12 DIMMs for up to 1.5 TB of memory with Error-correcting code (ECC) for increased accuracy in designs and simulations and system reliability
• Ultra-efficient VRM heatsink: Metal-fin-array design maximizes surface area for heat dissipation to enable unthrottled performance
• Complete IT infrastructure management with ASMB9 out-of-band remote management and in-band ASUS Control Center software
• Next-gen transfer speeds with an up to 32 Gbps M.2, plus an up to 10 Gbps USB 3.2 Gen 2 Type-A and Type-C

PRO WORKSTATION MOTHERBOARD
ASUS Pro Workstation motherboards are designed for professionals working in AI, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software with support for out-of-band management, so they’re also an efficient and cost-effective option for IT administrators.

Breakthrough performance in a single-socket solution
Built for advanced workstation professionals, Pro WS C621-64L SAGE/10G is powered by the latest Intel Xeon W-3200 processors that support up to 28 cores, 56 threads and 64 PCIe 3.0 in a single socket. Designed for faster visualizations, simulations and rendering capabilities across demanding applications of all types, Pro WS C621-64L SAGE/10G also supports Intel Xeon Scalable processors, which utilize the same six-channel LGA3647 socket as the Intel Xeon W-3200 processors.

Dual onboard 10G LAN
Featuring dual onboard 10G LAN ported by the cutting-edge Intel® X550 10GBASE-T Ethernet Controller, Pro WS C621-64L SAGE/10G provides server-grade connectivity and supports high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.

Four GPUs support, faster bandwidth
Pro WS C621-64L SAGE/10G fits up to four double-decked actively or passively cooled graphics cards, which each support PCIe Gen 3 x16 link bandwidth to ensure fast and fluid animations and model rendering. It also supports the latest NVIDIA Tesla and Quadro graphics cards to deliver the horsepower needed to run design, modeling, medical research, and processing-intensive simulations and rendering applications.

Make your memory faster and reliable
Along with 12 DIMM for up to 1.5 TB of memory, Pro WS C621-64L SAGE/10G supports Error-correcting code (ECC) to eliminate application or system crashes by automatically detecting and repairing single-bit memory errors.

Comprehensive IT infrastructure management
Pro WS C621-64L SAGE/10G features an embedded ASMB9-iKVM and ASUS Control Center software to provide comprehensive out-of-band and in-band management features for enterprise and small or mid-size businesses.
The embedded ASMB9 iKVM supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline.
The ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

Multiple Ultra-efficient heatsinks. A header to keep ahead
Pro WS C621-64L SAGE/10G features a thoughtful thermal design to ensure maximum performance with no CPU throttling. Its ultra-efficient VRM heatsink with a metal fin array maximizes surface area for heat dissipation, and its heatsinks and a connecting heat-pipe that’s situated in the direct path of airflow combine to ensure optimal cooling performance — even under the most demanding workloads

M.2 heatsink. Keep your SSD cooler
Pro WS C621-64L SAGE/10G features an ultra-efficient heatsink to reduce M.2 SSD temperatures for optimal storage performance and improved SSD longevity.

SafeSlot. Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using an insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Ready for Intel Xeon W-3200 Processors
The Intel Xeon W-3200 processors are purpose built and optimized for advanced workstation professionals in a single-socket solution. These processors are designed for heavily and lightly threaded, I/O-intensive workloads across architecture, engineering, and construction (AEC), media and entertainment (M&E), artificial intelligence (AI), oil & gas, and data sciences.

Ready for Intel Xeon Scalable Processors
Drive actionable insight, count on hardware-based security, and deploy dynamic service delivery with Intel Xeon Scalable processors. Support your hybrid cloud infrastructure and most demanding applications – including in-memory analytics, artificial intelligence, autonomous driving, high performance computing (HPC), and network transformation.
