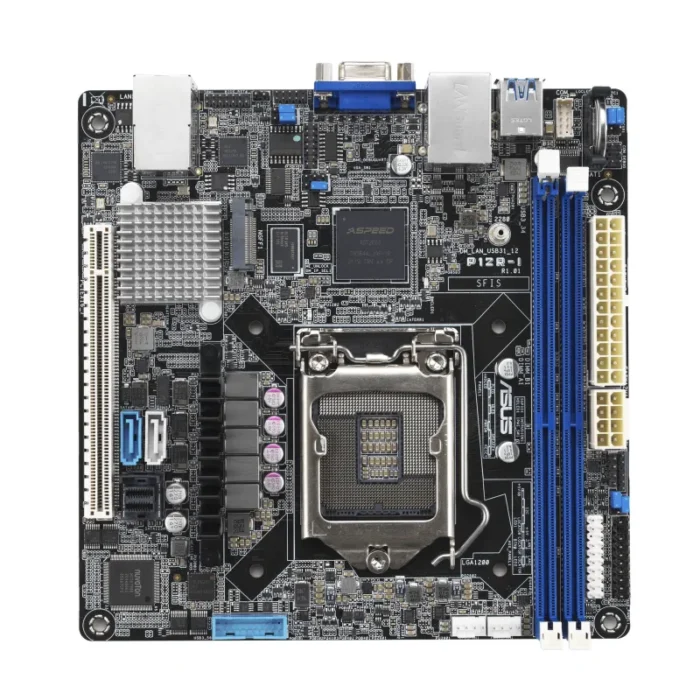

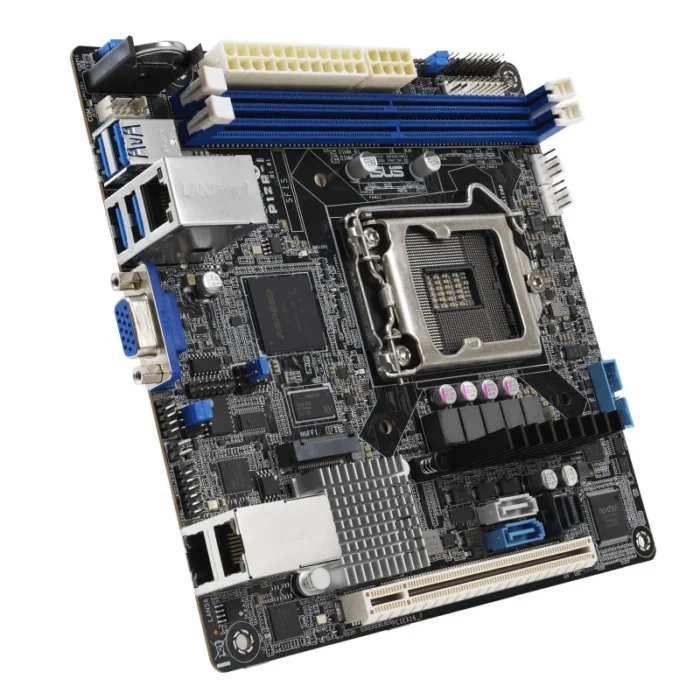

ASUS P12R-I ASMB10 Intel C252 LGA 1200 (Socket H5) ATX
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
- Flexible expandability with six native SATA HDDs and 1 PCI Express Gen4 slot
- Dual Intel I210AT Gigabit Ethernet with teaming support
- One M.2 support to 2280 PCIe Gen4 x4 Link for faster OS booting
- Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R-I server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R-I server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.
ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.
ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
| Processor | |
|---|---|
| Compatible processor series | Intel® Pentium®, Intel Xeon E |
| Processor socket | LGA 1200 (Socket H5) |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Graphics | |
|---|---|
| On-board graphics card memory | 64 MB |
| Graphics card | AST2600 |
| Graphics card family | ASPEED |
| Internal I/O | |
|---|---|
| Serial port headers | 1 |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Rear panel I/O ports | |
|---|---|
| Number of SAS ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Network | |
|---|---|
| Wi-Fi | No |
| LAN controller | Intel® I210-AT |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Motherboard chipset | Intel C252 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Component for | Server |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express x16 slots | 1 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 20 – 90% |
| Operating temperature (T-T) | 10 – 50 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Packaging data | |
|---|---|
| Package weight | 1.1 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Depth | 170 mm |
| Width | 170 mm |
