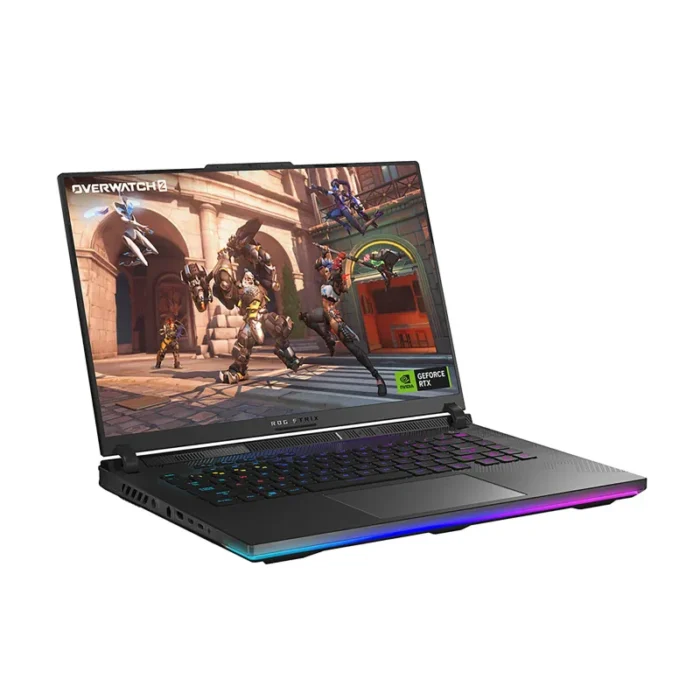

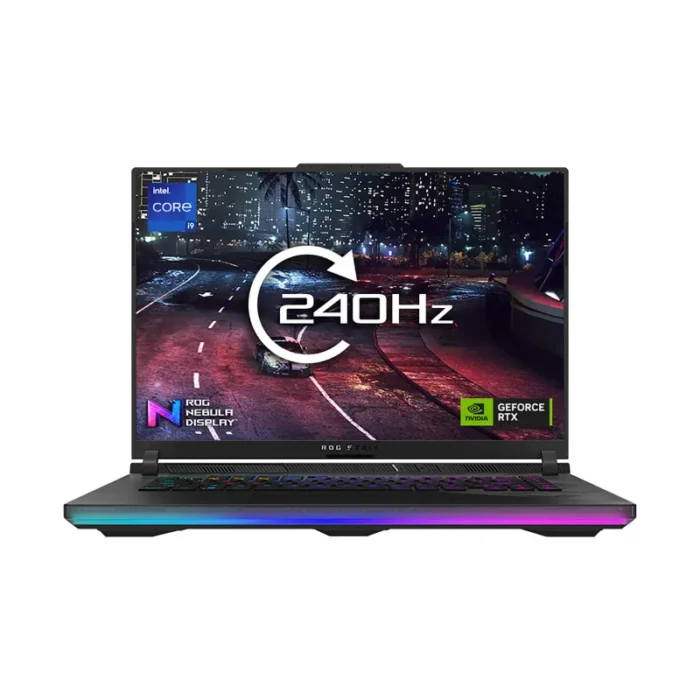

ASUS ROG Strix SCAR 16 G634JZR-N4086W Intel® Core™ i9 i9-14900HX Laptop 40.6 cm (16″) WQXGA 32 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 4080 Wi-Fi 6E (802.11ax) Windows 11 Home Black
- Intel® Core™ i9 Processor 14900HX with 24 cores and 32 threads at up to 65W TDP
- An NVIDIA GeForce RTX™ 4080 Laptop GPU with 175W max TGP with NVIDIA Advanced Optimus
- Dazzling 16-inch 2.5K Nebula Display, 16:10 aspect ratio, 240Hz/3ms, and 100% DCI-P3
- Game with confidence thanks to Tri-Fan Technology, full-surround vents, and Conductonaut Extreme liquid metal
- Dolby Vision and Dolby Atmos support for immersive content
Beat the best. Break all limits.
Dominate your games with the flagship pairing of an Intel® Core™ i9 Processor 14900HX and an NVIDIA® GeForce RTX™ 4080 Laptop GPU with a max TGP of 175W, as well as a dedicated MUX Switch and NVIDIA Advanced Optimus. With dazzling 16-inch Nebula Display, paired with full-surround vents wand Tri-Fan Technology, the 2024 ROG Strix SCAR 16 and SCAR 18 are here to take the gaming world by storm.
| Design |
| Market positioning |
Gaming |
| Form factor |
Clamshell |
| Colour name |
Off Black |
| Product colour |
Black |
| Product type |
Laptop |
| Display |
| Display response rise/fall |
3 ms |
| Maximum refresh rate |
240 Hz |
| RGB colour space |
DCI-P3 |
| Colour gamut |
100% |
| Display brightness |
500 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:10 |
| LED backlight |
Yes |
| HD type |
WQXGA |
| Touchscreen |
No |
| Display resolution |
2560 x 1600 pixels |
| Display diagonal |
40.6 cm (16″) |
| Processor |
| Processor base power |
55 W |
| Maximum turbo power |
157 W |
| Processor cache type |
Smart Cache |
| Processor cache |
36 MB |
| Efficient-core base frequency |
1.6 GHz |
| Performance-core base frequency |
2.2 GHz |
| Efficient-core Max Turbo Frequency |
4.1 GHz |
| Performance-core Max Turbo Frequency |
5.8 GHz |
| Efficient cores |
16 |
| Performance cores |
8 |
| Processor boost frequency |
5.8 GHz |
| Processor cores |
24 |
| Processor model |
i9-14900HX |
| Processor generation |
Intel® Core™ i9 (14th gen) |
| Processor family |
Intel® Core™ i9 |
| Processor manufacturer |
Intel |
| Memory |
| Memory channels |
Dual-channel |
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory clock speed |
5600 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
32 GB |
| Storage |
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
2 |
| Total SSDs capacity |
2 TB |
| Storage media |
SSD |
| Total storage capacity |
2 TB |
| Graphics |
| NVIDIA G-SYNC |
Yes |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board graphics card family |
Intel® UHD Graphics |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
12 GB |
| Discrete graphics card model |
NVIDIA GeForce RTX 4080 |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Atmos |
| Camera |
| Front camera HD type |
HD |
| Front camera |
Yes |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Power adapter barrel connector |
6.0 mm |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| Keyboard |
| Keyboard backlit zone |
Per-key RGB |
| Keyboard backlit colour |
RGB |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Pointing device |
NumberPad |
| Software |
| Trial software |
McAfee 30 days, Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Home |
| Battery |
| Fast charging time (50%) |
30 min |
| Fast charging |
Yes |
| Battery capacity |
90 Wh |
| Number of battery cells |
4 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| DC-in jack |
Yes |
| AC adapter output voltage |
20 V |
| AC adapter output current |
16.5 A |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| AC adapter power |
330 W |
| Security |
| Password protection type |
BIOS, User |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Weight & dimensions |
| Height (rear) |
3.04 cm |
| Height (front) |
2.26 cm |
| Depth |
264 mm |
| Width |
354 mm |
| Weight |
2.55 kg |
| General |
| Product family |
ROG |
| Product series |
Strix SCAR 16 |
