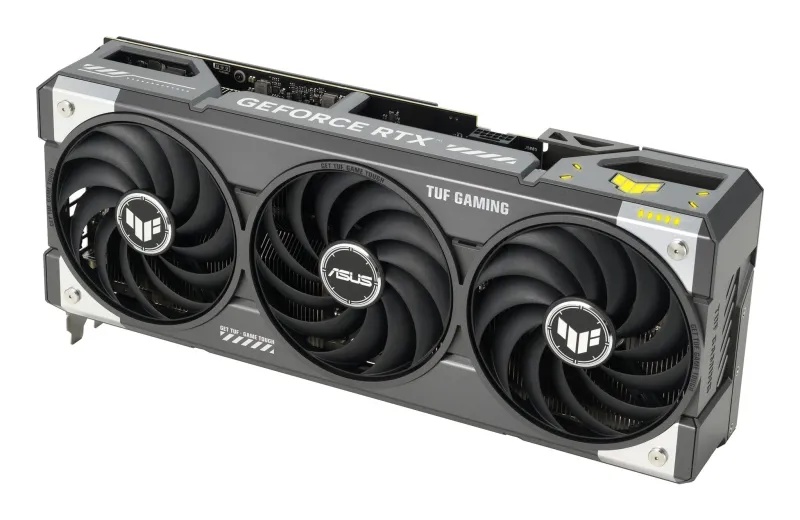

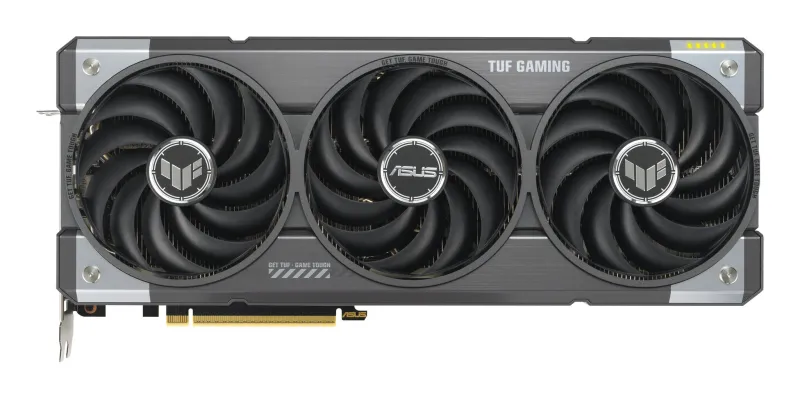

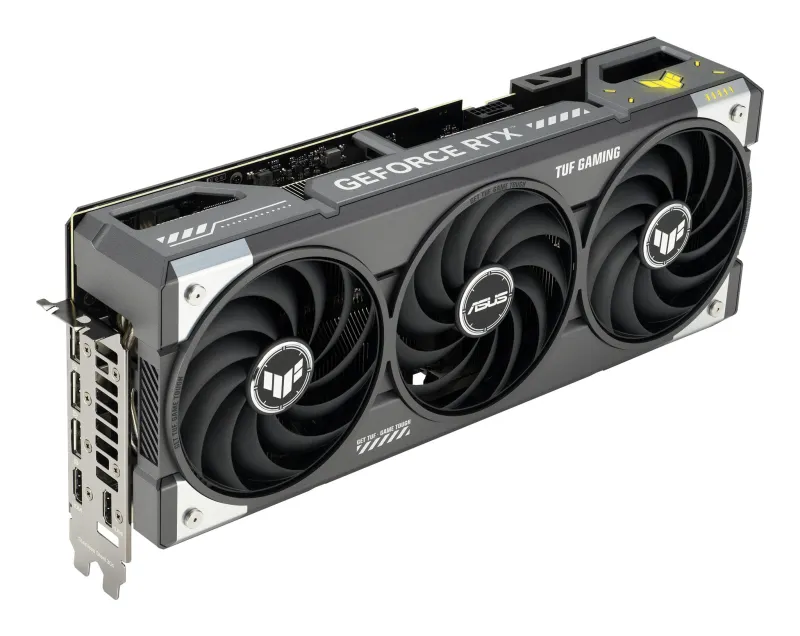

ASUS TUF-RTX5070-O12G-GAMING NVIDIA GeForce RTX 5070 12 GB GDDR7
- NVIDIA GeForce RTX 5070 12 GB GDDR7
- 7680 x 4320 pixels 192 bit 28 Gbit/s PCI Express 5.0
- HDMI ports quantity: 2 DisplayPorts quantity: 3
- OpenGL version: 4.6
- 1x 16-pin
Game TUF. Built to Last.
ASUS TUF Gaming GeForce RTX™ 5070
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5070, designed to withstand the harshest conditions and deliver unparalleled performance.
TUF Chokes & MOSFETs
Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.
TUF Capacitors
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
Dual-ball Fan Bearings
Dual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor frequency (OC mode) | 2640 MHz |
| Processor boost clock speed | 2610 MHz |
| CUDA cores | 6144 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 5070 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 28 Gbit/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR7 |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 2.1b |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 2 |
| Interface type | PCI Express 5.0 |
| Performance | |
|---|---|
| Overclocked (OC) edition | Yes |
| NPU performance up to | 1026 TOPs |
| Dual Link DVI | No |
| HDCP version | 2.3 |
| HDCP | Yes |
| OpenGL version | 4.6 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Illumination | Yes |
| Illumination colour | Multi |
| Number of slots | 3.125 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | ASUS Axial-tech |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 750 W |
| Weight & dimensions | |
|---|---|
| Height | 140 mm |
| Depth | 62.5 mm |
| Length | 329 mm |
| Weight | 1.53 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.33 kg |
| Package height | 87 mm |
| Package depth | 226 mm |
| Package width | 420 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
