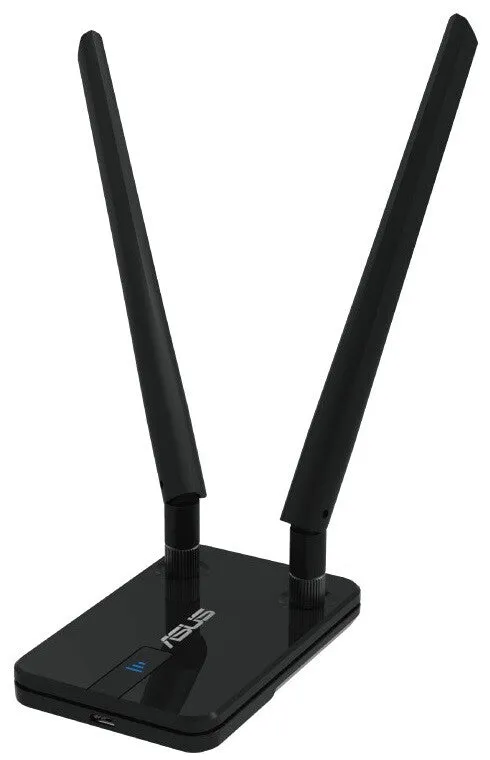

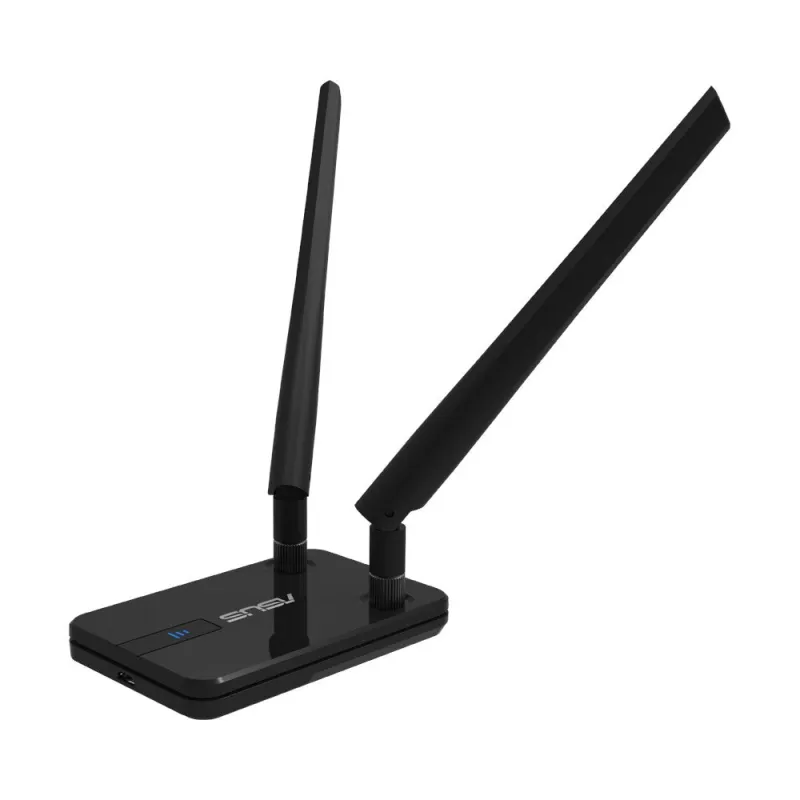

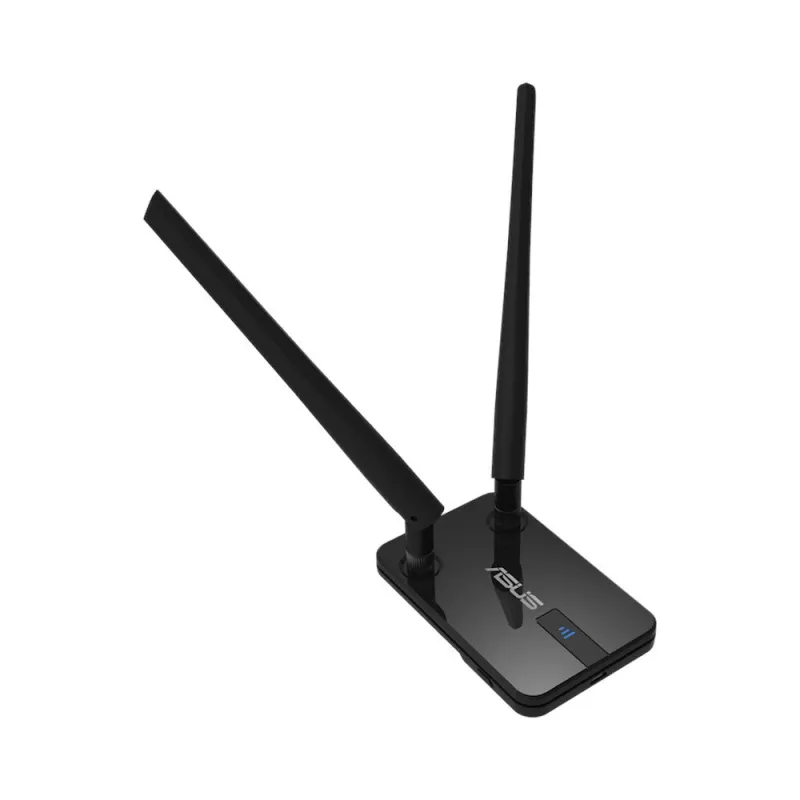

ASUS USB-N14 WLAN 300 Mbit/s
- Dual detachable 5dBi high-gain antenna supports up to 10x signal coverage
- Bundled USB extension cable for flexible placement to pinpoint best reception
- EZ WPS – Wi-Fi configuration setting in just 2 steps with WPS hardware push button
Advanced N speed
802.11n Wi-Fi offers the connection speeds you need to enjoy smooth HD streaming, online multiplayer gaming, downloading, and much more.
Adjustable cable enhances reception
Get more flexibility when placing the USB-N14 adapter with the bundled USB extension cable. Greater freedom of placement means better reception, as it allows you to fine-tune positioning for the best signal available.
External high-gain antenna supports up to 10X signal coverage.
With the detachable high-gain antenna you get the option to greatly increase your signal coverage up to 10X more extensive than Wireless-g adapters. Detachable design means you can connect and disconnect antennas at will, and even upgrade them in future if needed.
One push setup
Simply setup a connection between your router and devices with two button presses thanks to auto detection and network integration. No manual settings input required, and security is assured thanks to strong encryption.
| Ports & interfaces |
| USB ports quantity |
1 |
| Interface |
WLAN |
| Host interface |
USB |
| Connectivity technology |
Wireless |
| Network |
| Security algorithms |
128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS |
| Modulation |
16-QAM, 64-QAM, CCK, OFDM |
| WLAN data transfer rates supported |
300 Mbit/s |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Top Wi-Fi standard |
Wi-Fi 4 (802.11n) |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate |
300 Mbit/s |
| Design |
| LED indicators |
Yes |
| Antenna connector type |
R-SMA |
| Antenna |
Yes |
| Product colour |
Black |
| Component for |
PC/Laptop |
| Internal |
No |
| System requirements |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported |
Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions |
| Height |
11 mm |
| Depth |
90 mm |
| Width |
55 mm |
| Packaging content |
| Manual |
Yes |
| Other features |
| Detachable antenna(s) |
Yes |
| Gain |
5 dBi |
