ATEN 4-Port USB DisplayPort Secure KVM Switch (PSD PP v4.0 Compliant)
- Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
- Always-on chassis intrusion detection – renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected
- Configurable Device Filtration – supports administrative configuration to filter USB HID devices
- Port selection via pushbuttons / Remote Port Selector (RPS) only to enhance security
ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).
ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

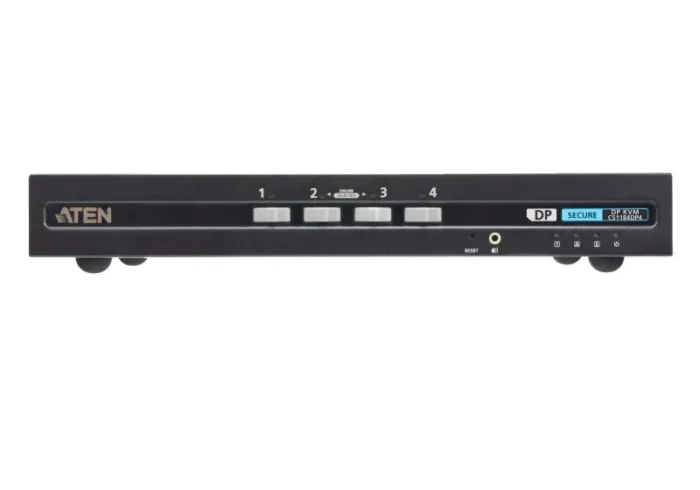

To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1.With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

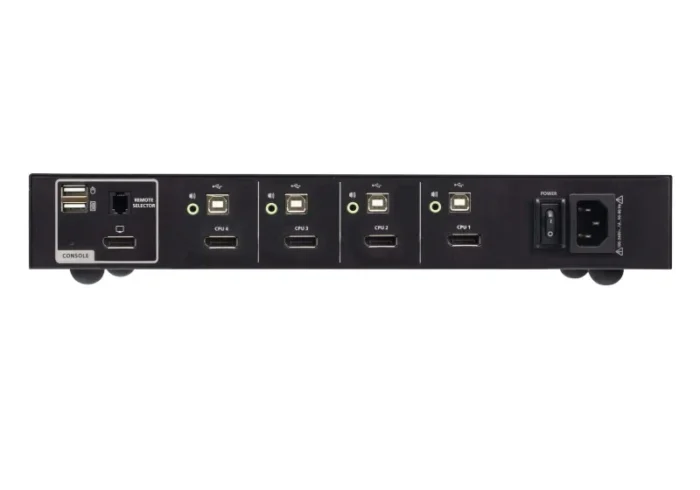

| Ports & interfaces | |
|---|---|
| RJ-11 ports quantity | 1 |
| Headphone outputs | 4 |
| Audio connections | Yes |
| Console ports | DisplayPort, USB A |
| Console USB ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 4 |
| DisplayPorts quantity | 4 |
| Video port type | DisplayPort |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 4 |
| Performance | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Design | |
|---|---|
| Push button | Yes |
| LED indicators | Yes |
| Wired remote switch | Yes |
| Housing material | Metal |
| Product colour | Black |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Power consumption (typical) | 9.1 W |
| Input current | 1 A |
| AC input frequency | 50 – 60 Hz |
| Input voltage | 100 – 240 V |
| Power source | AC |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 80% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.95 kg |
| Height | 44 mm |
| Depth | 335 mm |
| Width | 163.9 mm |
| Packaging data | |
|---|---|
| Package weight | 2.54 kg |
| Package volume | 14583.175999 cm³ |
| Package height | 233 mm |
| Package depth | 540 mm |
| Package width | 116 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Cables included | AC |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case volume | 54651.513938 cm³ |
| Master (outer) case gross weight | 8.26 kg |
| Master (outer) case height | 258 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case width | 375 mm |
| Master (outer) case net weight | 5.85 kg |
