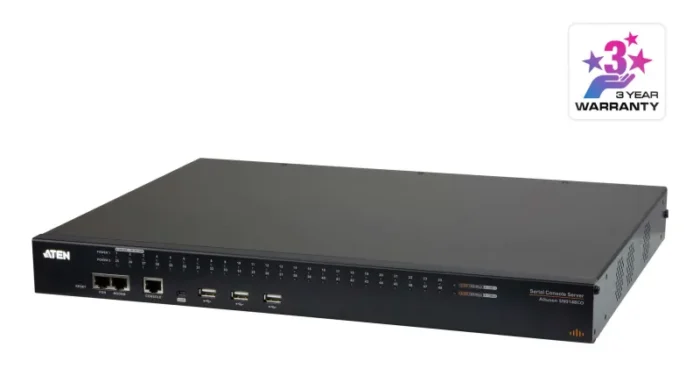

ATEN 48-Port Serial Console Server W/Dual POW
- Secure in-band and out-of-band remote serial console access
- Versatile serial operating modes – Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP Server/Client, and Virtual Modem
- Auto-sensing DTE/DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
- Online/Offline detection of connected serial devices (including terminal blocks) – automatically send event notifications when the devices are offline for device status monitoring
ATEN launches a new generation of Serial Console Servers, the SN01xxCO Series (SN0108CO / SN0116CO / SN0132CO / SN0148CO). With dual power / LAN in SN01xxCO models, they integrate cutting edge technologies to provide convenient installation, secure serial device access, easy management and comprehensive control for data centers.
1x SN0148CO Serial Console Server
1x LIN6-04U1-M18G Laptop USB Console Cable
2x LIN2-418K-E12G Power Cords (AC models)
1x KC06-0029-B02G Mounting Kit
2x 0X12-0017-301G Lok-U-Plug
1x 0X12-0017-401G Lok-U-Plug Installation Tool
1x Foot Pad Set (4 pcs.)
1x User Instructions
| Technical details |
| Rack mounting |
Yes |
| Product colour |
Black |
| Package height |
130 mm |
| Package width |
453 mm |
| Package weight |
6.75 kg |
| Package depth |
575 mm |
| Ports & interfaces |
| USB 2.0 ports quantity |
3 |
| Certificates |
| Certification |
RoHS |
| Power |
| AC input voltage |
100 – 240 V |
| Operational conditions |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage relative humidity (H-H) |
0 – 80% |
| Logistics data |
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case gross weight |
6.75 kg |
| Master (outer) case height |
130 mm |
| Master (outer) case length |
575 mm |
| Master (outer) case width |
453 mm |
| Master (outer) case net weight |
5.73 kg |
- leaflet
- leaflet
- manual pdf
- Quick Start Guide
