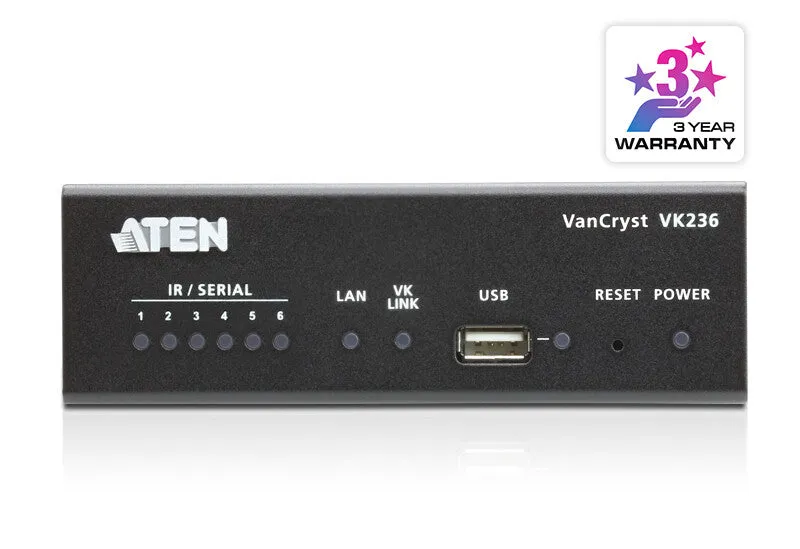

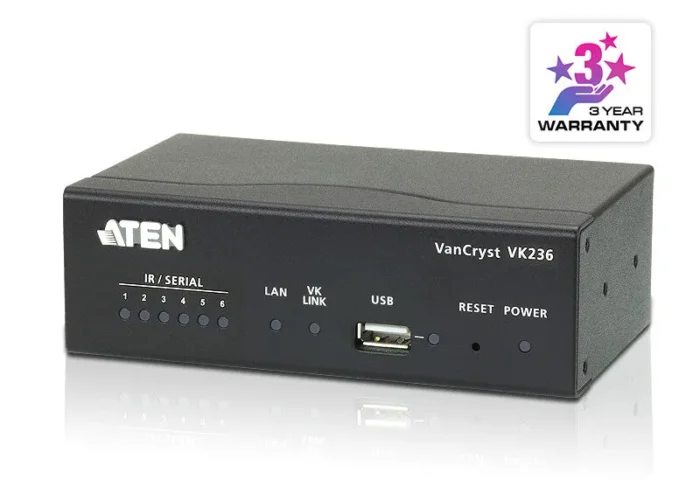

ATEN 6-Port IR/Serial Expansion Box
- Provides 6 IR/Serial ports to expand the ATEN Control System

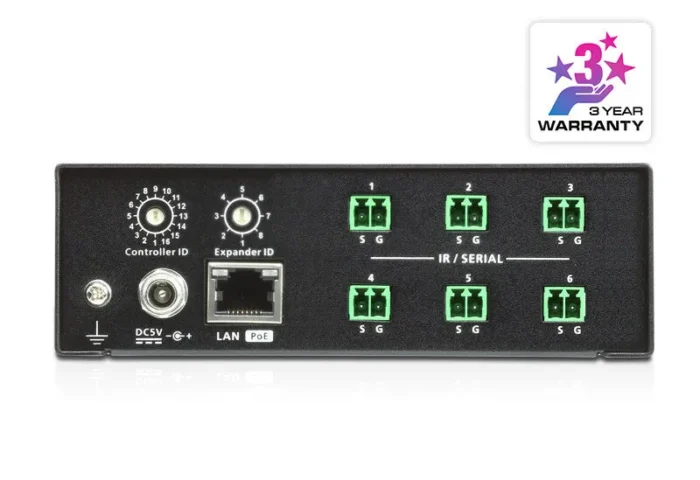

- ID Switch pairs the VK236 with a controller to instantly configure the network settings
- Up to eight VK236 expansion boxes can be added to a single Control Box
- Supports Power over Ethernet (PoE) or DC power supply
The VK236 6-Port IR/Serial Expansion Box provides six additional IR/Serial ports for a flexible expansion of the ATEN Control System.
This allows users to control additional IR/serial devices in an environment where more devices are required. With the advantage of an Ethernet-based connection, the expansion box can be easily connected to the VK2100 Control Box via a LAN connection from a variety of locations across a network.
1x VK236 6-Port IR/Serial Expansion Box
1x Mounting Kit
6x Terminal Blocks
1x User Instructions
| Network |
| Connectivity technology |
Wired |
| Technical details |
| Package depth |
239 mm |
| Storage temperature (T-T) |
-20 – 60 °C |
| Manual |
Yes |
| Package height |
160 mm |
| Package width |
59 mm |
| Package weight |
715 g |
| Product colour |
Black |
| Master (outer) case height |
175 mm |
| Master (outer) case length |
325 mm |
| Master (outer) case width |
250 mm |
| Master (outer) case net weight |
3.35 kg |
| Ports & interfaces |
| I/O ports |
6 x RS-232, 1 x RJ-45, 1 x USB Type A |
| Operational conditions |
| Operating temperature (T-T) |
0 – 50 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Logistics data |
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case gross weight |
3.8 kg |
| Weight & dimensions |
| Weight |
670 g |
| Dimensions (WxDxH) |
75.8 x 130 x 42 mm |
