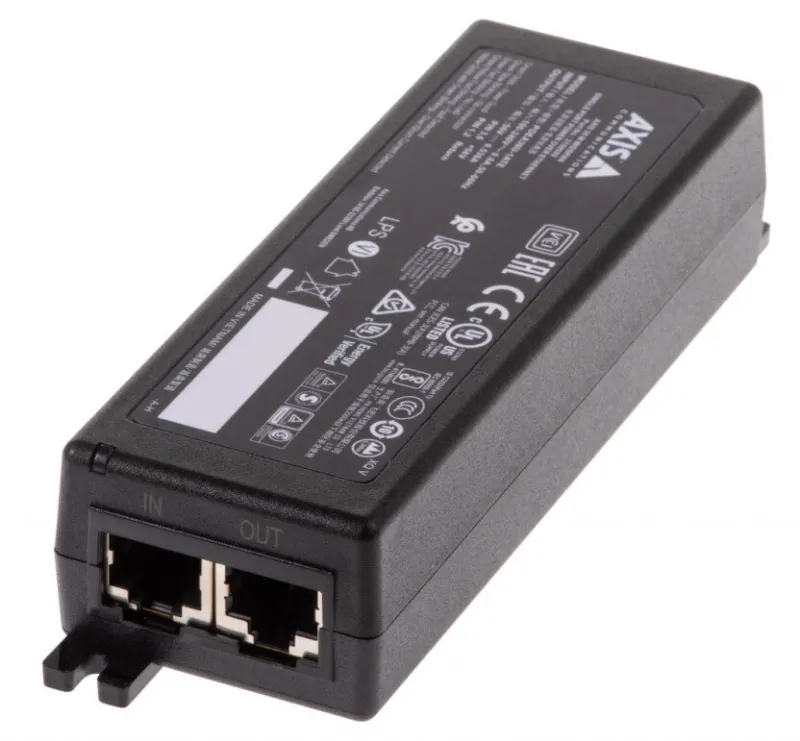

Axis 02172-002 security camera accessory Midspan
- 10/100/1000 Mbps; 100 to 240 V AC; IEEE 802.3af and IEEE 802.3at; Plug-and-play
AXIS 30 W Midspan is a 1-port midspan that can deliver up to 30 W to one network device. It is IEEE 802.3af (15 W) and IEEE 802.3at (30 W) compliant, which ensures compatibility with most Axis network products with built-in PoE. Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure.
| Features | |
|---|---|
| Certification | IS 13252,UL 60950-1, UL 62368-1, CCC, EMC EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, CISPR 24, EAC, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| LED indicators | Yes |
| Housing material | Plastic |
| Product colour | Black |
| Compatibility | M5054, M5055, M5065, M5525-E, P5414-E, P5415-E, P5654-E, P5655-E, Q6074, Q6074-E, Q6075, Q6075-E, Q6128-E, Q6154-E, Q6155-E, M1065-L, M1134, M1135, M1135-E, M1137, M1137-E, M1145-L, M2025-LE, M2026-LE Mk II, P1214, P1214-E, P1224-E, P1244, P1245, P1254, P1264, P1265, P1275, P1375, P1375-E, P1377, P1377-LE, P1378, P1378-LE, P1445-LE-3, P1447-LE, P1448-LE, P1455-LE, Q1615 Mk III, Q1615-LE Mk III, Q1645, Q1645-LE, Q1647, Q1647-LE, Q1659, Q1700-LE, Q1785-LE, Q1786-LE, Q1798-LE, P1280-E, P1290-E, Q1941-E, Q1941-E PT, Q1942-E, Q1942-E PT, Q2901-E, Q2901-E PT, M3015, M3016, M3037-PVE, M3057-PLVE, M3058-PLVE, M3064-V, M3065-V, M3066-V, M3067-P, M3068-P, M3075-V, M3115-LVE, M3116-LVE, M3205-LVE, M3206-LVE, M4206-LV, M4206-V, P3227-LV, P3227-LVE, P3228-LV, P3228-LVE, P3245-LV, P3245-LVE, P3245-V, P3245-VE, P3247-LV, P3247-LVE, P3248-LV, P3248-LVE, P3255-LVE, P3367-V, P3367-VE, P3374-LV, P3374-V, P3375-LV, P3375-LVE, P3375-V, P3375-VE, P3715-PLVE, P3717-PLE, P3719-PLE, P3904-R Mk II, P3905-R Mk II, P3925-R, P3935-LR, P9106-V, Q3515-LV, Q3515-LVE, Q3517-LV, Q3517-LVE, Q3517-SLVE, Q3518-LVE, Q3527-LVE, Q3615-VE, Q3617-VE, Q3708-PVE, Q3709-PVE, Q9216-SLV, A1001, A1601, T90C20 IR-LED, T90D20, T90D25, M7104, P7304, Q7411, Q7424-R Mk II, A9161, A9188, A9188-VE, A8207-VE Mk II, I8016-LVE, F34, F41, F44 T91G61 T91H61, D2110-VE, C1310-E, C1410 |
| Brand compatibility | Axis |
| Type | Midspan |
| Ports & interfaces | |
|---|---|
| Ethernet LAN | Yes |
| Power | |
|---|---|
| Output voltage | 56 V |
| Input frequency | 47-63 Hz |
| Input voltage | 100-240 V |
| Rated power | 30 W |
| Weight & dimensions | |
|---|---|
| Weight | 145 g |
| Width | 46 mm |
| Depth | 140.1 mm |
| Height | 30 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | -40 – 75% |
| Operating temperature (T-T) | -20 – 40 °C |
| Technical details | |
|---|---|
| Doesn’t contain | Halogen, PVC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299020 |
