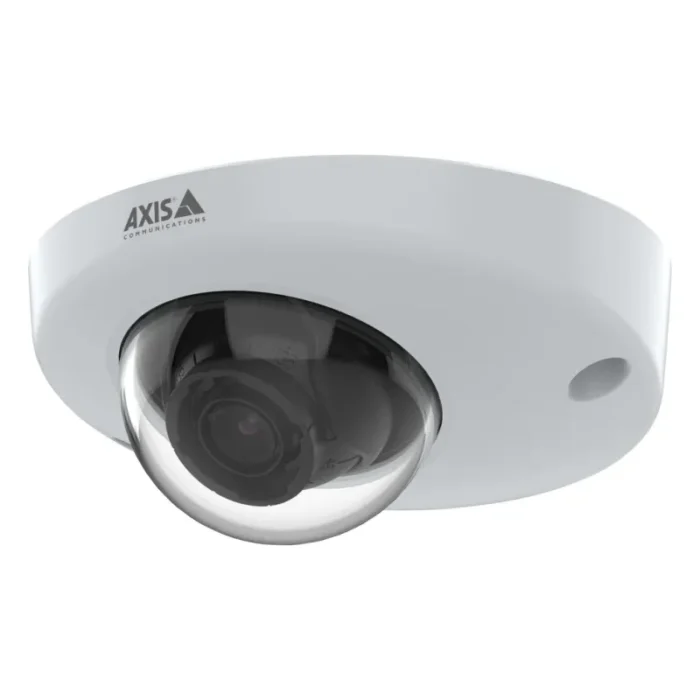

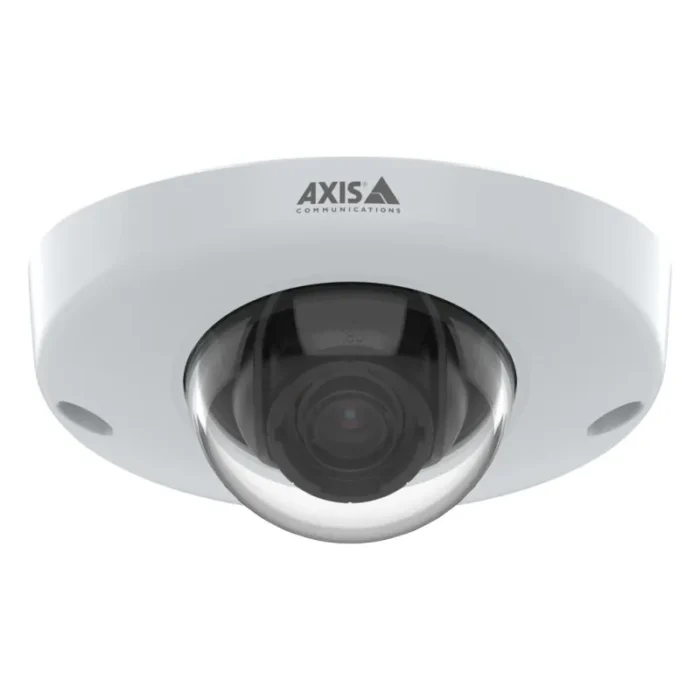

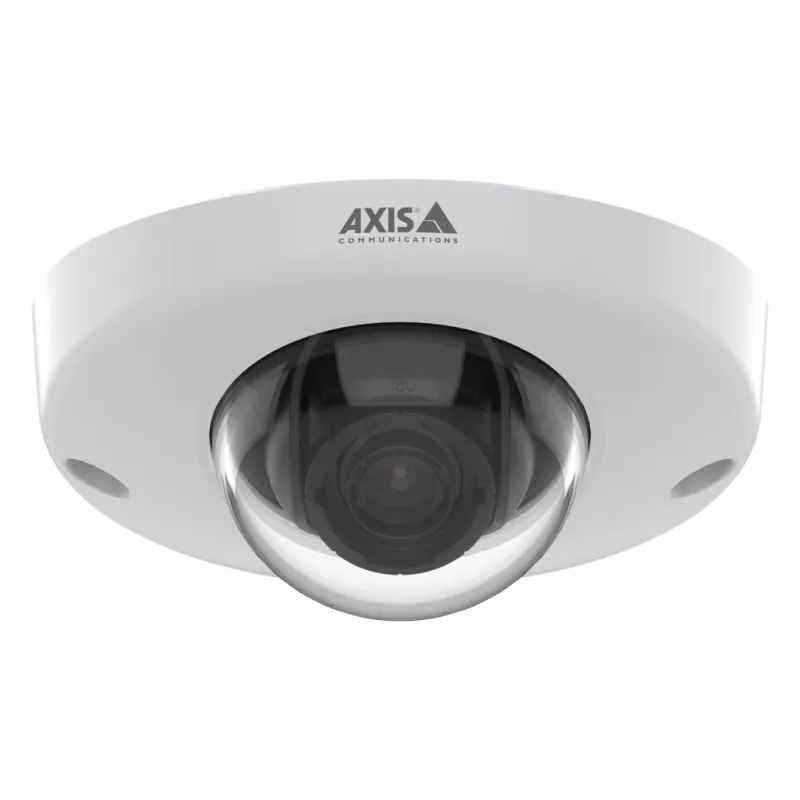

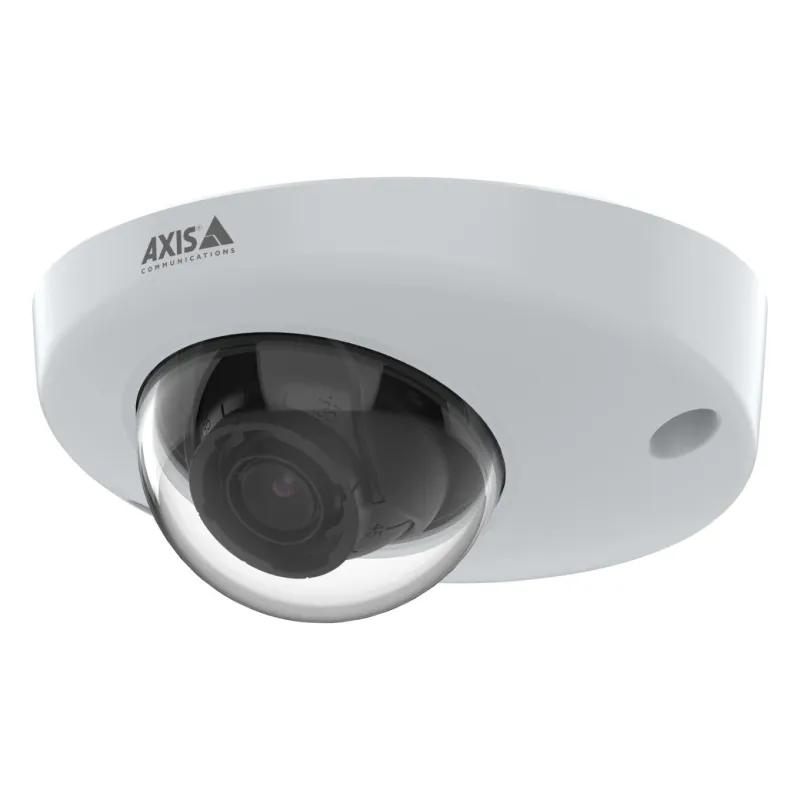

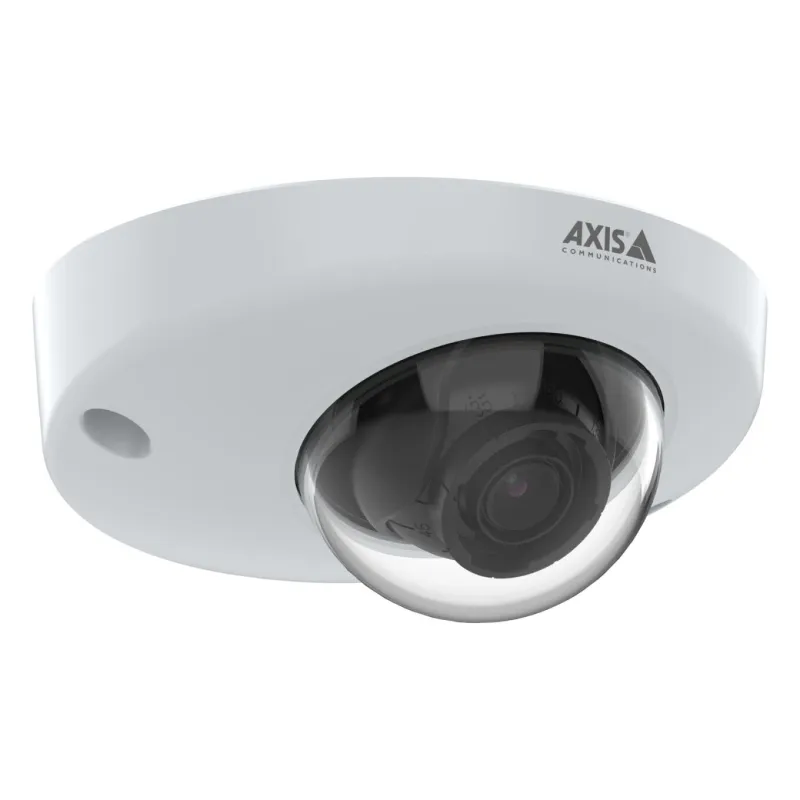

Axis 02670-001 security camera Dome IP security camera Indoor 1920 x 1080 pixels Wall
- Compact, rugged design; Complies with EN50155; Lightfinder and Forensic WDR; Traffic Light mode; Zipstream
This compact and discreet 2 MP onboard camera complies with rolling stock standards such as EN50155 and EN45545. It can withstand vibrations and a wide range of temperatures. Additionally, with AXIS TP3826-E housing this dome camera can be mounted on the outside of a vehicle. Thanks to Lightfinder and Forensic WDR, it provides details even in challenging light conditions. And with traffic light mode it can distinguish the color of traffic lights in dark scenes. Optional M12 lenses are available to adjust field of view for customized monitoring purposes.
| Performance | |
|---|---|
| Certification | CE, ECE, KC, RCM, UL/cUL, UKCA, VCCI, WEEE |
| Languages support | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of languages | 19 |
| Built-in processor | Yes |
| Wide Dynamic Range (WDR) | Yes |
| PTZ modes | Digital PTZ |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Product colour | White |
| Mounting type | Wall |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera pixel size | 2.8 µm |
| Pan range | -30 – 30° |
| Tilt angle range | 15 – 90° |
| Lens viewing angle, vertical | 47° |
| Lens viewing angle, horizontal | 88° |
| Angle of rotation | 175° |
| Minimum illumination | 0.04 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9″) |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Maximum aperture number | 2 |
| Lens diameter | 3.6 mm |
| Zoom capability | Yes |
| Night vision | |
|---|---|
| Night vision | No |
| Video | |
|---|---|
| Privacy masking | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Video recording | Yes |
| Video compression formats | H.264, H.265, M-JPEG |
| Total megapixels | 2 MP |
| Maximum resolution | 1920 x 1080 pixels |
| Network | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Gigabit Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Digest authentication | Yes |
| Network access storage (NAS) | Yes |
| Pixel counter | Yes |
| Password protection | Yes |
| Power | |
|---|---|
| Power consumption (Power over Ethernet (PoE)) | 2.2 W |
| Power consumption (max) | 3.8 W |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 100% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | -30 – 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 241 g |
| Diameter | 11 cm |
| Height | 50 mm |
| Packaging content | |
|---|---|
| Packaging content | Windows decoder 1-user license, lens tool |
| Manual | Yes |
| Number of cameras | 1 |
