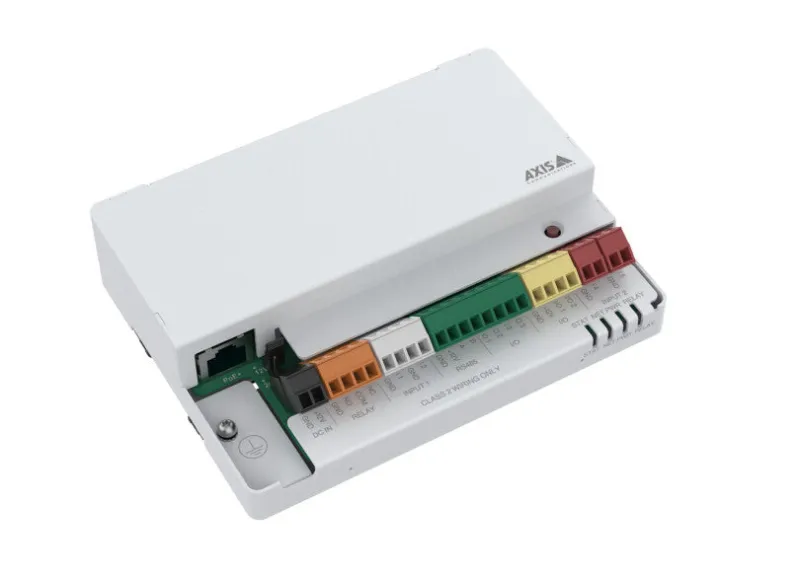

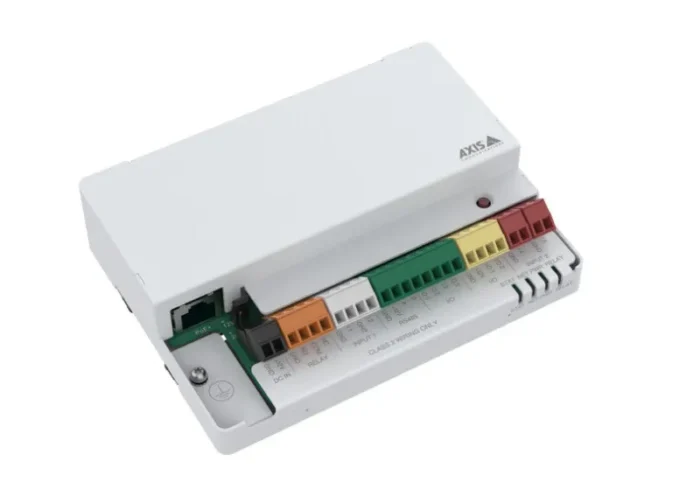

Axis 02861-001 digital/analogue I/O module Relay channel
- Module type: Digital
- Signal direction: Input/output
- 8 channels
- Channel type: Relay channel
- White
AXIS A9210 offers 10 I/O ports including 2 configurable I/Os, 5 inputs, 3 outputs, and 1 form C relay output, allowing you to extend the functionality of any Axis product or third-party system. You can monitor inputs from cameras, analytics alarm buttons, environmental sensors, and more, so you can detect and respond to system events. This scalable device offers flexible installation and can be installed anywhere. It’s easy to integrate with third-party advanced security systems such as VMSs, and alarm and intrusion systems. Furthermore, with multi-drop technology, you can add up to16 expansion modules for even more I/O functionality
| Features |
| Product colour |
White |
| Supported network protocols |
IPv4, IPv6, HTTP, HTTPSb , TLSb , QoS Layer 3 DiffServ, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SOCKS, SSH, MQTT v3.1.1, Syslog |
| Channel type |
Relay channel |
| Channels quantity |
8 channels |
| Signal direction |
Input/output |
| Module type |
Digital |
| Power |
| DC input voltage |
12 V |
| Operational conditions |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
-40 – 55 °C |
| Relative humidity |
5 – 95% |
| Weight & dimensions |
| Weight |
466 g |
| Height |
31.3 mm |
| Depth |
102.8 mm |
| Width |
147 mm |
