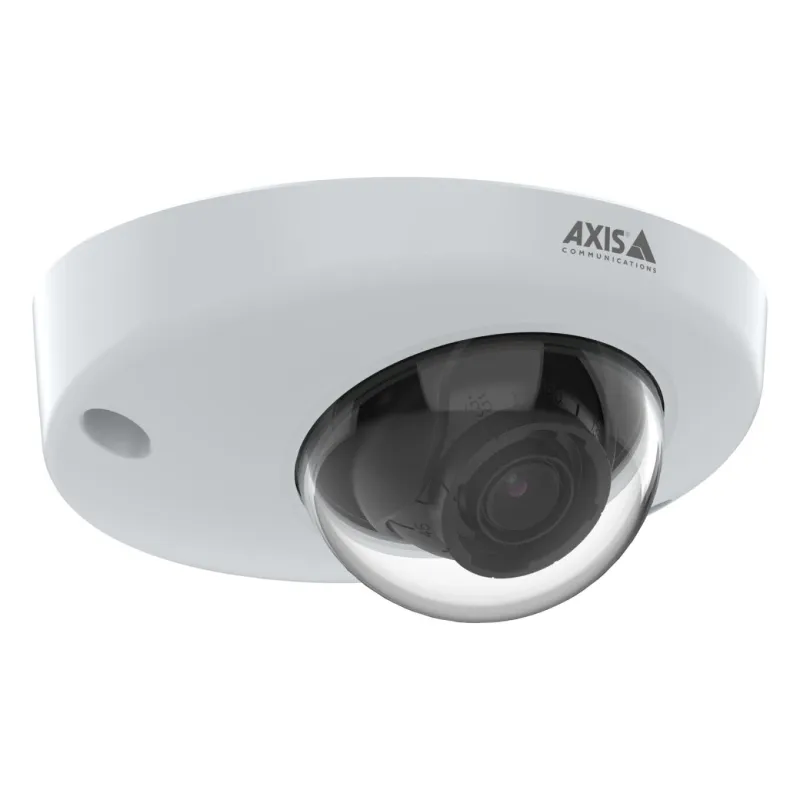

Axis M3905-R Dome IP security camera Indoor 1920 x 1080 pixels Ceiling
- Indoor IP security camera
- CMOS 25.4 / 2.9 mm (1 / 2.9″) 2 MP 1920 x 1080 pixels
- Wired Ethernet LAN
- Dome Ceiling
- IP66, IP67 IK10
- Black, White
- 241 g

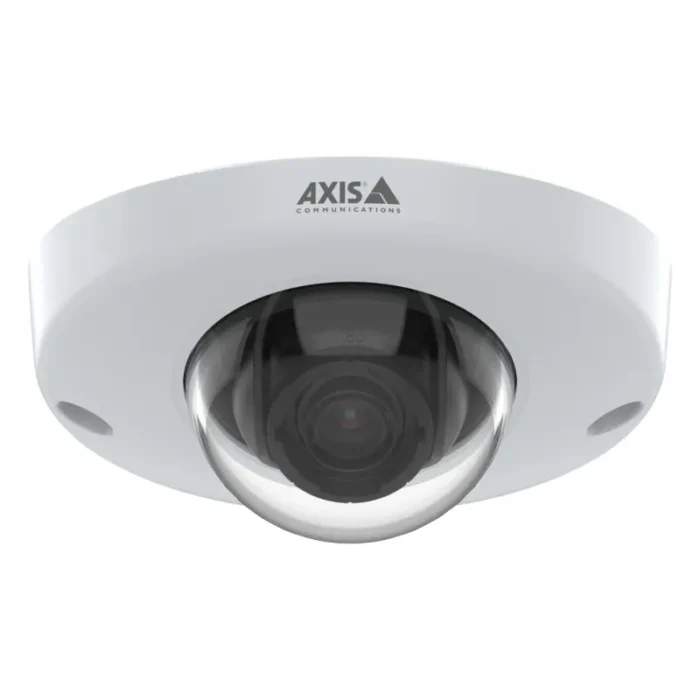

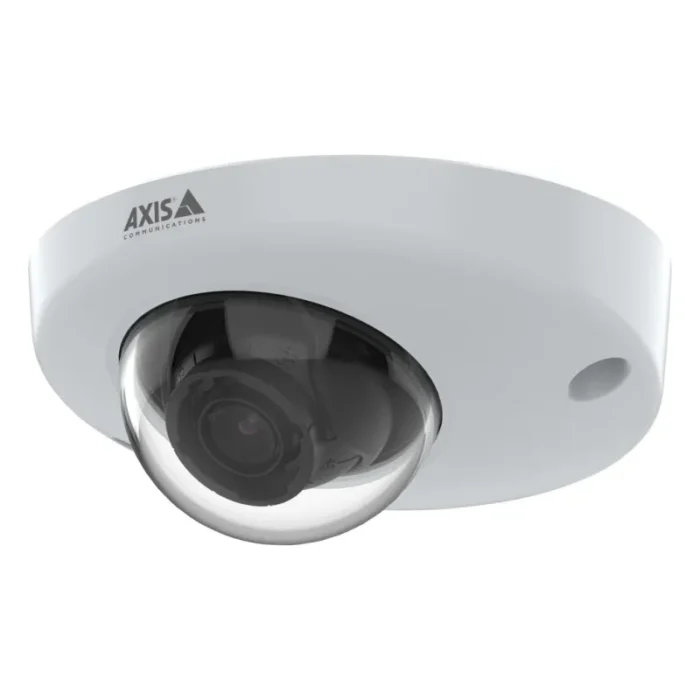

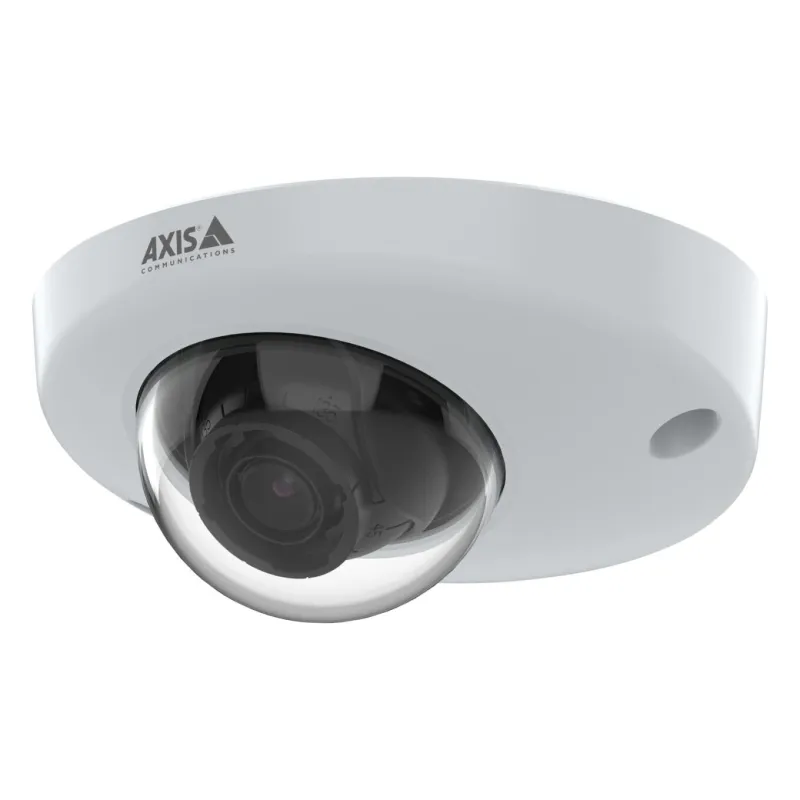

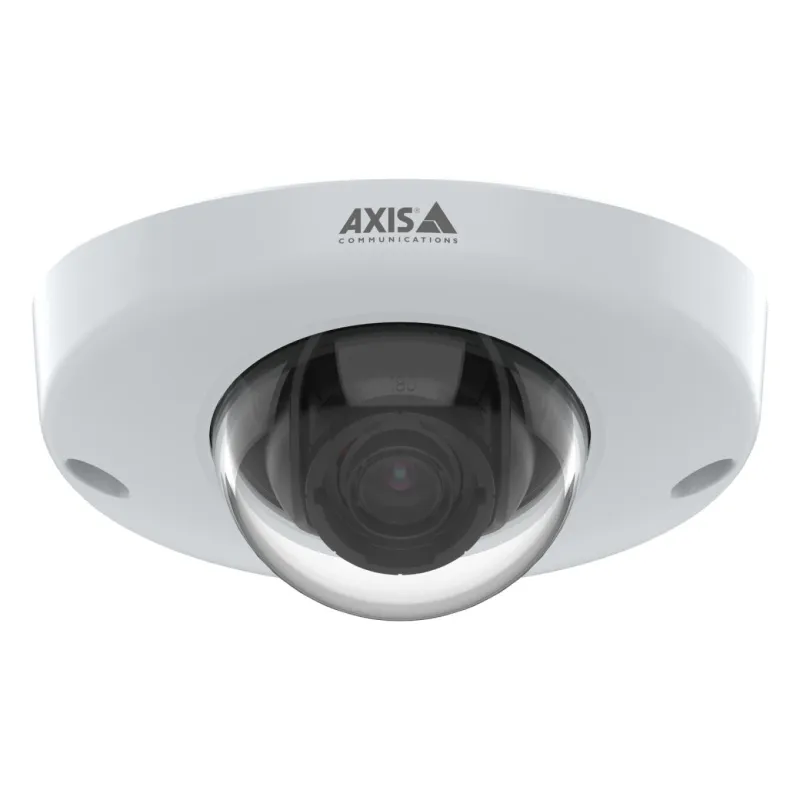

AXIS M3905-R Dome Camera
Specifically designed for indoor surveillance onboard buses, this rugged dome camera can withstand shock and vibrations and ensures high-performance in various light conditions.
Optimized for surveillance onboard buses
This 2 MP onboard camera ensures high-performance even in changing light conditions. With Forensic WDR you get clarity even when there are both dark and light areas in the scene. And, Axis Lightfinder captures full-color images in extremely low light. Thanks to traffic light mode, AXIS M3905-R can distinguish the color of traffic lights in dark scenes. Furthermore, this product comes in two different product variations with different lens options. And additionally, there are various lens options available as accessories for customized monitoring purposes.
For tough onboard conditions
AXIS M3905-R complies with transportation-industry regulations for buses including fire-safety. This rugged indoor camera is IK10, IP66-, IP67-rated and comes with either M12 or RJ45 connector for flexible installation. Additionally, when used together with AXIS TP3826-E Housing it can be mounted on the outside of a vehicle to withstand tough weather.
Secure and cost-effective
This onboard indoor camera offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Thanks to Zipstream technology, it significantly reduces storage and bandwidth requirements without compromising image quality. The result is high-forensic usability, significant savings, and a camera that’s perfect for onboard conditions.
| Performance | |
|---|---|
| Certification | CE, ECE, KC, RCM, UL/cUL, UKCA, VCCI, WEEEEN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, ECE R10 rev.06 (E approval), EN 50498,Australia/New Zealand: RCM AS/NZS CISPR 32 Class ACanada: ICES-3(A)/NMB-3(A)Japan: VCCI Class A,Korea: KS C 9835, KS C 9832 Class A,USA: FCC Part 15 Subpart B Class AIEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, UN ECE R118 IS 13252IEC/EN 60529 IP66, IEC/EN 60529 IP67, parts ofParts of NEMA 250 Type 4X (ingress of water and gasket test),IEC/EN 62262 IK10, IEC 60721-3-5 Class 5M3 (vibration and shock), IEC 60068-2-1,IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64,IEC 60068-2-78, IEC 60068–2–14NIST SP500-267ETSI EN 303 645 |
| Languages support | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Wide Dynamic Range (WDR) | Yes |
| Preset points | Yes |
| Tour recording | Yes |
| PTZ modes | Digital PTZ |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium |
| Product colour | Black, White |
| Mounting type | Ceiling |
| Form factor | Dome |
| Camera | |
|---|---|
| Number of Privacy masking areas | 32 |
| Camera shutter speed | 1/19000 – 1/5 s |
| Camera pixel size | 2.8 µm |
| Pan range | -30 – 30° |
| Tilt angle range | 15 – 90° |
| Lens viewing angle, vertical | 56° |
| Lens viewing angle, horizontal | 107° |
| Angle of rotation | 350° |
| Minimum illumination | 0.02 lx |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9″) |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Closest focusing distance | 0.3 m |
| Fixed focal length | 2.8 mm |
| Identify distance | 2.1 m |
| Maximum aperture number | 1.2 |
| Recognize distance | 4.2 m |
| Observe distance | 7.4 m |
| Detect distance | 21.1 m |
| Number of lenses | 1 |
| Video | |
|---|---|
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Privacy masking | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 400, 1280 x 800, 1280 x 960, 1920 x 1080 (HD 1080) |
| Video formats supported | H.264, H.265, M-JPEG |
| Total megapixels | 2 MP |
| Maximum resolution | 1920 x 1080 pixels |
| Network | |
|---|---|
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Digest authentication | Yes |
| Security algorithms | 256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP |
| Alert notification type | |
| Pixel counter | Yes |
| Password protection | Yes |
| Power | |
|---|---|
| Power consumption (max) | 3.8 W |
| Power consumption (typical) | 2.2 W |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 100% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | -30 – 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 241 g |
| Height | 50 mm |
| Depth | 110 mm |
| Width | 110 mm |
| Sustainability | |
|---|---|
| Compliance certificates | REACH, RoHS |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of cameras | 1 |
| Other features | |
|---|---|
| Doesn’t contain | CFR, PVC/BFR |
