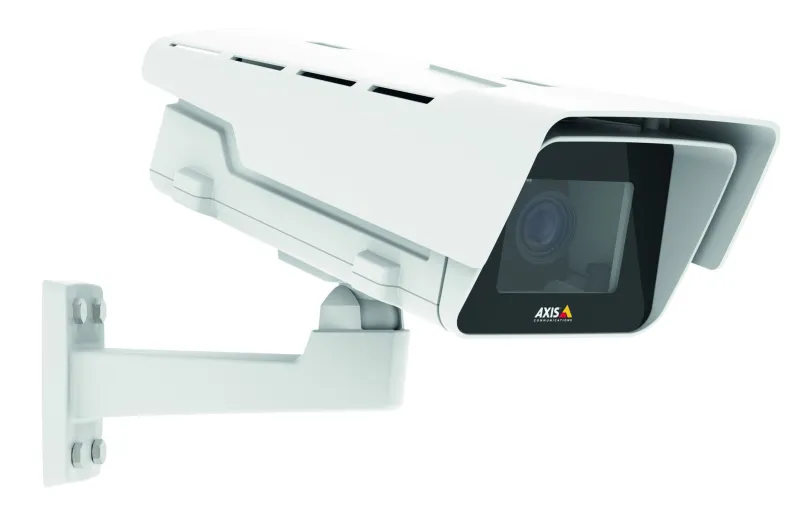

Axis P1367-E Box IP security camera Outdoor 3072 x 1728 pixels Ceiling/wall
- Outdoor IP security camera
- CMOS 25.4 / 2.9 mm (1 / 2.9″) 3072 x 1728 pixels
- Wired Ethernet LAN
- Box Ceiling/wall
- IP66 IK10
- White
- 2.2 kg
Light can be a camera’s best friend – or its worst enemy – but Axis P1367-E Network Camera takes even challenging light conditions in stride to deliver consistently excellent image quality. It offers 5 MP resolution at full frame rate. Plus it’s robust, resilient and can withstand even the harshest outdoor circumstances.
More light or less?
Axis P1367-E provides images that are optimized for forensic purposes regardless of light conditions. It offers outstanding light sensitivity and Axis Lightfinder technology for high-quality – color – images even when they’re recorded in near darkness. P-Iris provides improvements in contrast, clarity, resolution and depth of field. And Forensic WDR provides great detail when there are both bright and darker areas in a scene. In addition, Axis P1367-E is a CS-mount camera, which means you can select different lenses depending on your surveillance needs.
Made for the great outdoors
Axis P1367-E is ready for outdoor installation in tough environments. It can withstand temperatures as low as -40 °C and as high as 60°C intermittently (-40 °F to 140 °F). And with IP66, NEMA 4X and IK10 ratings, you can be sure that the camera housing is resistant to both harsh weather conditions and vandalism. The housing also features an innovative new interior that allows plenty of room for bigger lenses. Switching to Corridor Format is easier than ever as well.
Sharp images. Low bandwidth
P1367-E features Axis Zipstream technology, which analyses the video stream in real time to identify areas of interest. These areas are compressed a bit less than other areas, preserving important details in full image quality, while reducing storage and bandwidth by up to 50%. The result is high-quality images and significant savings.
| Performance | |
|---|---|
| Certification | EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, IEC/EN/UL 62368-1, 50121-4/IEC 62236, IEC/EN 60529 IP66, NEMA 250 Type 4X, IEC 60068-2-6, IEC 60068-2-27, IEC/EN 62262 IK10 IEC/EN 60529 IP67 |
| Day/night mode | Yes |
| PTZ modes | Digital PTZ |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Form factor | Box |
| Camera | |
|---|---|
| Camera shutter speed | 1/55500 – 2 s |
| Lens viewing angle, vertical | 40° |
| Lens viewing angle, horizontal | 72° |
| Minimum illumination | 0.03 lx |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9″) |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Fixed focal length | 1.2 mm |
| Focal length range | 2.8 – 8.5 mm |
| Night vision | |
|---|---|
| Night vision | No |
| Video | |
|---|---|
| Flip & mirror | Yes |
| Text caption overlay | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Frame rate | 30 fps |
| Video compression formats | H.264 |
| Maximum resolution | 3072 x 1728 pixels |
| Audio | |
|---|---|
| Audio formats supported | AAC, G.711, G.726, LPCM |
| Audio system | 2-way |
| Network | |
|---|---|
| Supported network protocols | IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Terminal block port | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| RS-485 ports | 1 |
| RS-422 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Privacy protection | Yes |
| Password protection type | User |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (Power over Ethernet (PoE)) | 9.2 W |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 100% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | -40 – 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.2 kg |
| Height | 120 mm |
| Depth | 155 mm |
| Width | 382 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Mounting brackets included | Yes |
| Number of cameras | 1 |
| Technical details | |
|---|---|
| Lens mount interface | CS mount |
| Removable IR-cut filter | Yes |
