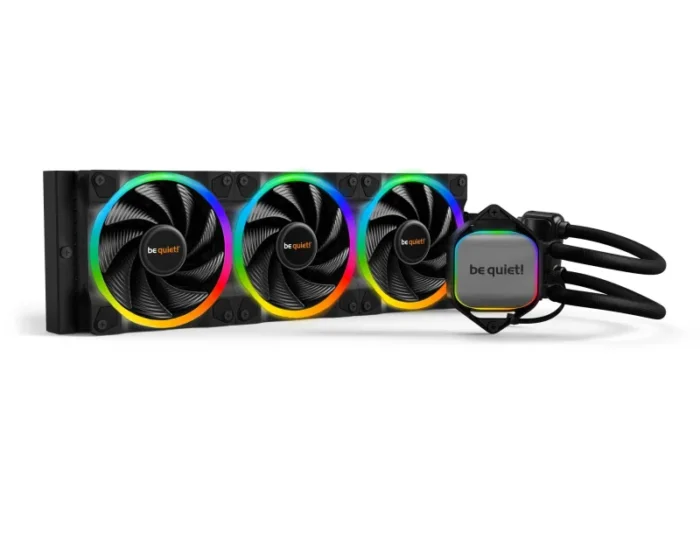

be quiet! Pure Loop 2 FX 360mm Processor All-in-one liquid cooler 12 cm Black 1 pc(s)
- Impressively high cooling performance for all consumer CPUs
- 3 Light Wings 120mm PWM high-speed fans offer equally high air pressure and vibrant ARGB illumination
- Doubly decoupled PWM pump for quiet operation and minimal vibration
- ARGB-PWM-Hub enables synchronization of up to 6 ARGB components and PWM fans
- Combination of ARGB illumination, all-black design and aluminum-style for unmistakable and stylish look
- Easy-to-access refill port and included coolant bottle guarantee a long lifespan
Impressive illumination, superior cooling
Pure Loop 2 FX 360mm is the impressively high-performing and silent All-in-One water cooling unit with impressive ARGB illumination for overclocked systems. Its black design with ARGB illumination makes Pure Loop 2 FX 360mm a highlight in any case. The newly built PWM pump with increased performance offers a silent operation. Having an included coolant bottle in the scope of delivery, Pure Loop 2 FX 360mm underlines its claim to be the first choice for design-orientated users.
FANS DEVELOPED FOR RADIATORS
Fan blades optimized for high pressure
With a remarkably high air pressure of up to 2.6mm /H2O, Light Wings 120mm PWM high-speed is the best choice for Pure Loop 2 FX 360mm. The 9 airflow-optimized fan blades provide enough air pressure to make this fan perfect, even in demanding configurations.

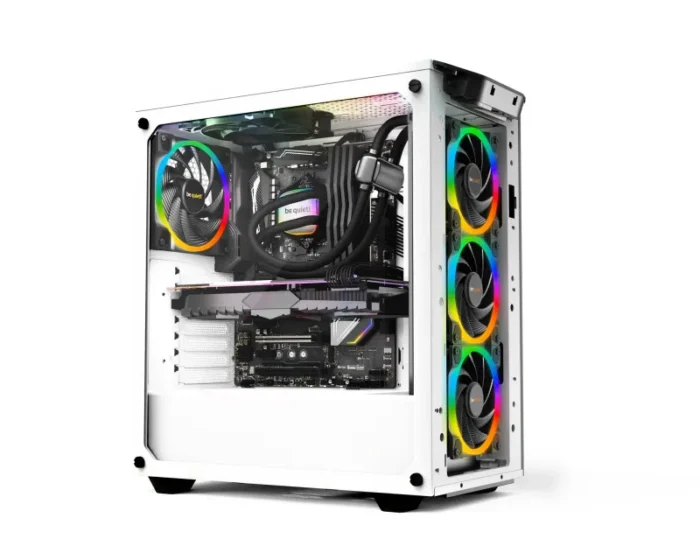

IMPRESSIVE ILLUMINATION, NEAT DESIGN
Lots of illumination possibilities
3 Light Wings PWM high-speed offer ARGB lighting at the front and rear. 18 ARGB LEDs give you many opportunities to individualize your PC build. This and the illuminated cooling block make Pure Loop 2 FX 360mm a highlight in any system.
DOUBLY DECOUPLED PWM-PUMP
Adjustable and silent operation
The doubly decoupled PWM-pump runs smoothly and silent. Due to the PWM control the pump speed can be adjusted for silent as well as powerful operations. Thanks to the effective damping the pump causes even less noise and minimal vibration. This is the key to provide the well-known silent be quiet! operation.
ONE HUB, MANY POSSIBILITIES
Synchronization of up to 6 ARGB-components
The ARGB-PWM-Hub enables synchronization of up to 6 PWM fans and 6 ARGB components. This allows the user to run all your cooling and lighting gear with just one PWM and one ARGB header on your motherboard. It can be positioned everywhere inside the case and by that supports a neat interior and cable management.
EASY TO REFILL
For a long lifespan
The refill port is easy to access which makes refilling safe and comfortable. The coolant bottle included in scope of delivery makes it easy to achieve a long lifespan.
| Performance | |
|---|---|
| Fan’s mean time to failure (MTTF) | 60000 h |
| Pump motor speed | 5500 RPM |
| Fan speed (max) | 2500 RPM |
| Pump motor speed (min) | 4000 RPM |
| Pump motor speed (max) | 5500 RPM |
| Quantity per pack | 1 pc(s) |
| Pump connector | 4-pin |
| Fan bearing technology | Rifle bearing |
| Pulse-width modulation (PWM) support | Yes |
| Noise level (high speed) | 34 dB |
| Noise level (low speed) | 8.9 dB |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| LED connector type | 3-pin |
| Illumination LED | Yes |
| Number of fans | 3 fan(s) |
| Base plate material | Copper |
| Radiator material | Aluminum |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 5 V |
| LED voltage | 5 V |
| Fan voltage | 12 V |
| Fan current | 0.45 A |
| Fan power consumption | 5.4 W |
| Weight & dimensions | |
|---|---|
| Package weight | 2.6 kg |
| Package height | 206 mm |
| Package depth | 461 mm |
| Package width | 138 mm |
| Cable length | 0.5 m |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 1.54 kg |
| Tube length | 40 cm |
| Radiator height | 39.7 cm |
| Radiator depth | 2.7 cm |
| Radiator width | 12 cm |
| Packaging content | |
|---|---|
| Hub included | Yes |
| Manual | Yes |
| Mounting kit | Yes |
| Other features | |
|---|---|
| Thermal grease | Yes |
| Logistics data | |
|---|---|
| Shipping (inner) case gross weight | 11.7 kg |
| Shipping (inner) case height | 50.8 cm |
| Shipping (inner) case length | 65.8 cm |
| Shipping (inner) case width | 29.6 cm |
| Products per shipping (inner) case | 4 pc(s) |
