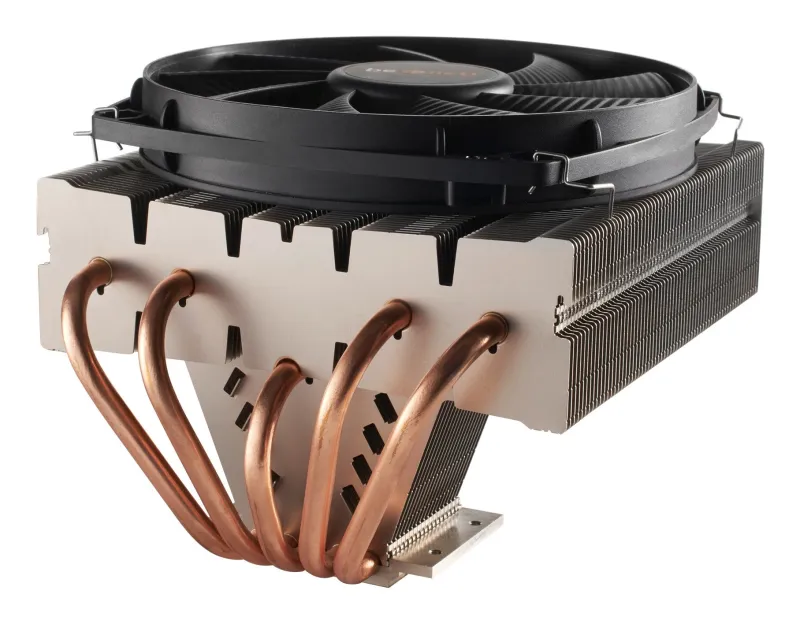

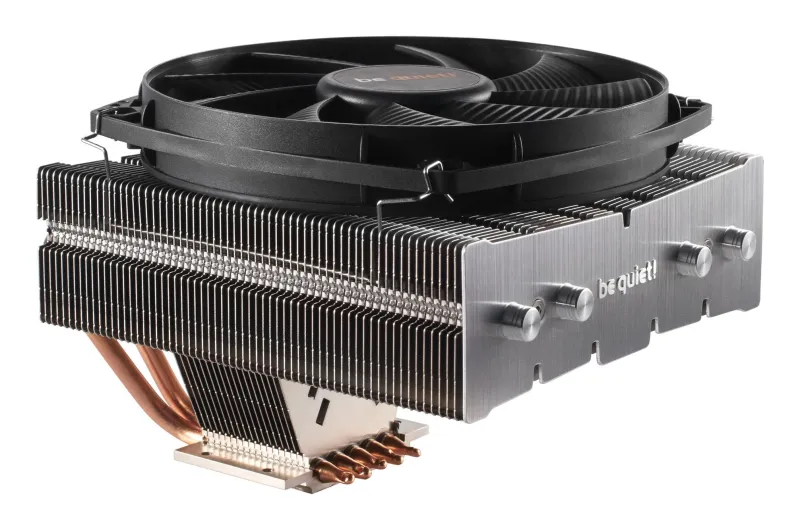

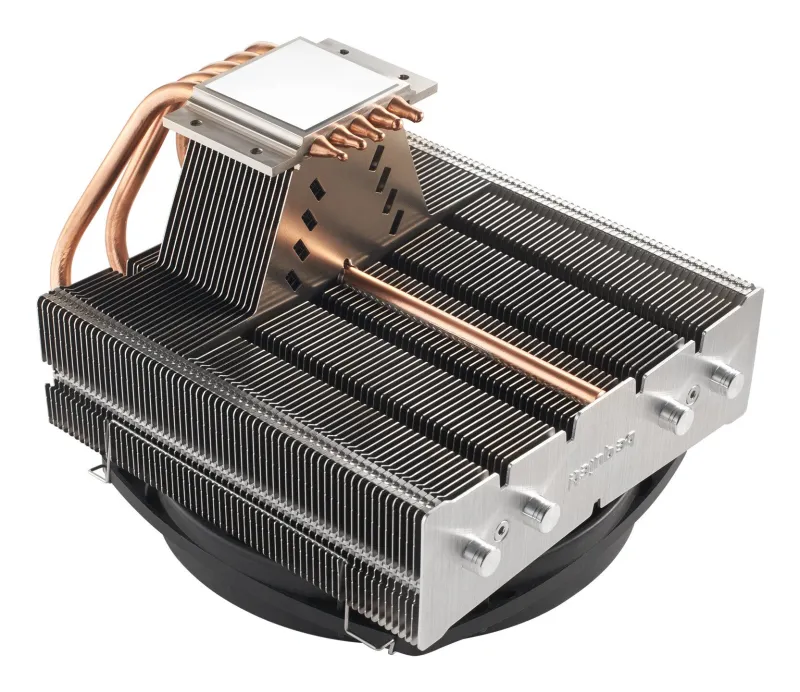

be quiet! Shadow Rock TF 2 Processor Cooler 13.5 cm Black, Copper, Silver
- Space-saving top-flow construction
- Very high cooling capacity of 160W TDP
- Direct connection of baseplate to cooling fins for fast heat transfer
- Small, diagonally arranged fins create an airflow that ensures perfect cooling for components near to the socket
- Silence-optimized 135mm be quiet! fan (max. 24.4dB(A)) with durable rifle-bearing technology
- 5 high-performance 6mm heat pipes
- Compatibility with Intel® and AMDTM sockets
SHADOW ROCK TF 2
Compact Cooling, Significantly Quiet
Shadow Rock TF 2 is the perfect cooler for PC systems with restricted space. It offers the best mix of performance and price in the premium compact CPU cooler segment.
HIGH-PERFORMANCE HEATPIPES
Offering the system an impressive cooling performance
Shadow Rock TF 2 is equipped with five 6mm heat pipes. They carry the heat straight to optimal locations on the cooling fins and provide the system with a remarkable compact cooling capacity of 160W TDP.
DIRECT CONNECTION OF BASE PLATE AND FINS
For highly effective cooling power
An ingenious cooling concept: The baseplate and the cooling fins of Shadow Rock TF 2 are directly connected. This ensures fast heat transfer and optimum cooling efficiency.
EXTREMELY SILENCE-OPTIMIZED OPERATION
Even at 100% fan speed the overall noise is merely 24.4dB(A)
Silent operation typical for be quiet! products is achieved by the silence-optimized 135mm be quiet! fan. Delivering the best balance between cooling performance and quietness its smooth operation is thanks to the 9 airflow-optimized fan blades and durable rifle-bearing technology.
SMALL, DIAGONALLY ARRANGED FINS
Produce the perfect airflow
The small diagonal fins on the back of the cooler direct the airflow to guarantee efficient cooling for the CPU as well as components around the Intel® or AMD™ socket.
SPACE-SAVING TOP-FLOW DESIGN
Benefit from this highly functional concept
The top-flow design is perfect for anyone who has to cope with limited space restrictions when building a system. Shadow Rock TF 2 more than solves this problem
| Performance | |
|---|---|
| Bearing type | Rifle bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.1 mmH2O |
| Airflow | 113.8 m³/h |
| Maximum airflow | 67.8 cfm |
| Noise level (high speed) | 24.4 dB |
| Noise level (low speed) | 11.9 dB |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 1400 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2+, Socket AM3+, Socket AM4, Socket FM1, Socket FM2+ |
| Fan diameter | 13.5 cm |
| Type | Cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of heat pipes | 5 |
| Fins material | Aluminium |
| Number of fins | 57 |
| Number of fan blades | 9 |
| Number of fans | 1 fan(s) |
| Material | Aluminium, Copper |
| Product colour | Black, Copper, Silver |
| Power | |
|---|---|
| Rated current | 0.11 A |
| Rated voltage | 12 V |
| Power supply | 1.32 W |
| Weight & dimensions | |
|---|---|
| Package weight | 1.09 kg |
| Package height | 130 mm |
| Package depth | 203 mm |
| Package width | 178 mm |
| Cable length | 0.2 m |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 135 x 135 x 22 mm |
| Weight | 680 g |
| Height | 112 mm |
| Depth | 165 mm |
| Width | 137 mm |
| Packaging content | |
|---|---|
| Thermal pad included | Yes |
| Screws included | Yes |
| Other features | |
|---|---|
| Heatsink dimensions (W x D x H) | 165 x 137 x 87 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
