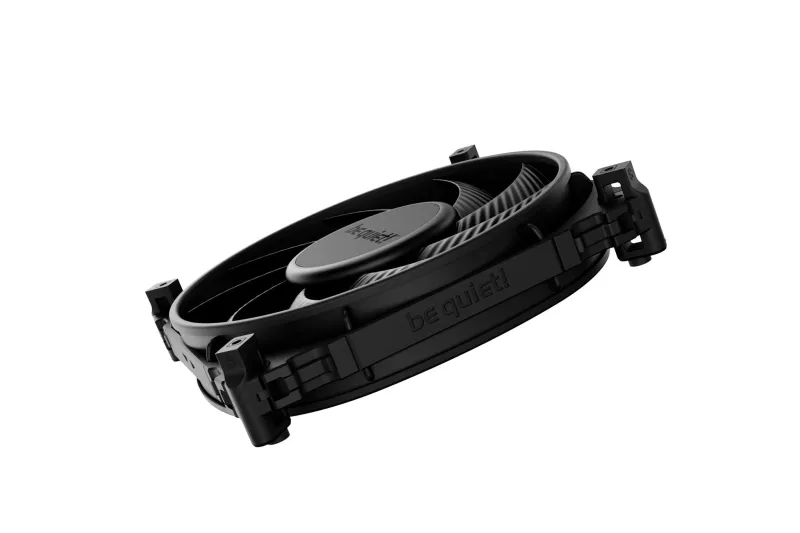

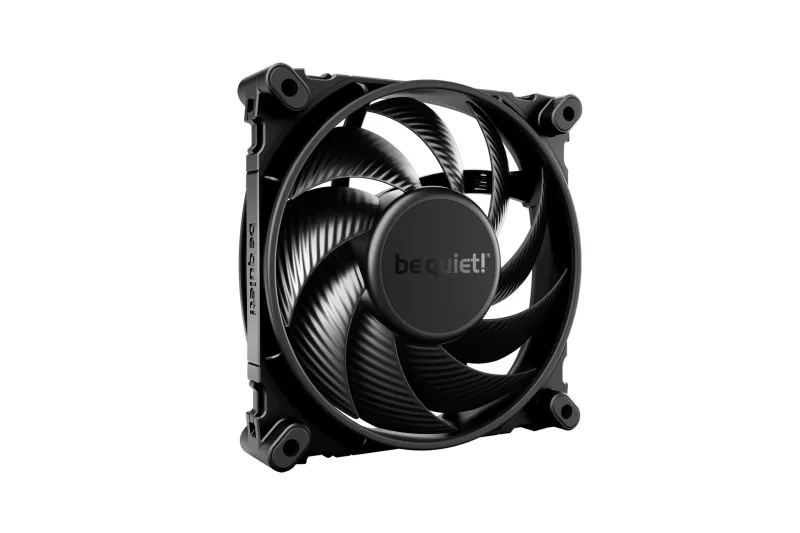

be quiet! SILENT WINGS 4 | 120mm Computer case Fan 12 cm Black 1 pc(s)
- Optimized fan blades for the highest performance
- Small tip clearance and fan frame with funnel-shaped air outlets for extremely high air pressure
- Virtually inaudible operation at regular speed
- 6-pole fan motor for less vibration and power consumption
- Fluid-dynamic bearing enables very smooth operation

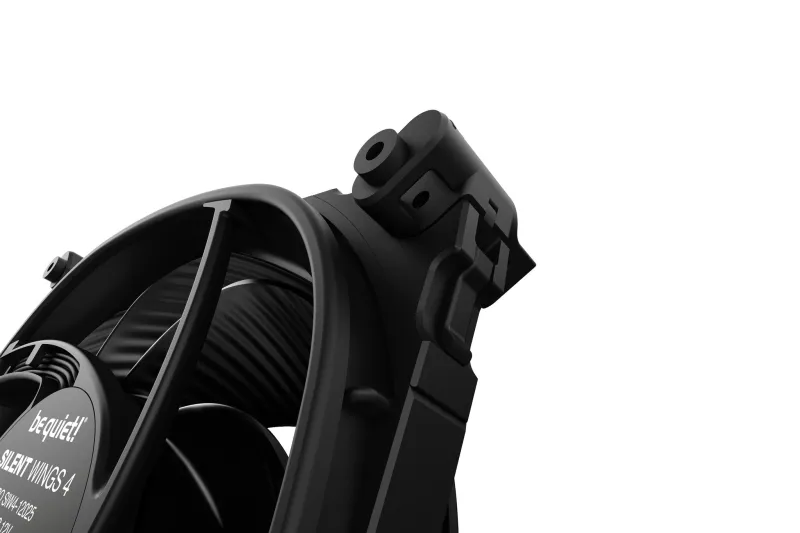

- Anti-vibration mounting with push pins for installation as a case fan
- An alternative screwed installation can replace the default mounting option
- Super-long lifespan of 300,000h
- Elegant look with high-grade fan sticker in an all-black design
No compromise silence and performance
Silent Wings 4 120mm combines all features of a virtually inaudible with an extremely performant fan. A 6-pol-motor and anti-vibration mountings combined with fan blades optimized for maximum airflow make Silent Wings 4 120mm the perfect choice for the most demanding applications in high-end systems.
| Performance |
| Mean time between failures (MTBF) |
300000 h |
| Quantity per pack |
1 pc(s) |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Maximum air pressure |
1.79 mmH2O |
| Airflow |
82.74 m³/h |
| Maximum airflow |
48.7 cfm |
| Noise level (high speed) |
18.9 dB |
| Fan diameter |
12 cm |
| Type |
Fan |
| Suitable location |
Computer case |
| Design |
| Certification |
CE / ROHS / RU / UKCA / TÜV / WEEE |
| Fan connector |
3-pin |
| Product colour |
Black |
| Power |
| Maximum current |
0.13 A |
| Rated current |
0.12 A |
| Rated voltage |
12 V |
| Voltage |
5 – 13.2 V |
| Power consumption (typical) |
1.44 W |
| Weight & dimensions |
| Package weight |
349 g |
| Package height |
31 mm |
| Package depth |
192 mm |
| Package width |
141 mm |
| Cable length |
0.5 m |
| Weight |
190 g |
| Height |
25 mm |
| Depth |
120 mm |
| Width |
120 mm |
| Technical details |
| Compliance certificates |
CE, RoHS, WEEE |
| Packaging content |
| Number of clips |
4 |
| Number of screws |
4 |
| Screws included |
Yes |
| Other features |
| Country of origin |
China |
| Logistics data |
| Shipping (inner) case gross weight |
15.2 kg |
| Shipping (inner) case height |
37.5 cm |
| Shipping (inner) case length |
43.2 cm |
| Shipping (inner) case width |
38.7 cm |
| Products per shipping (inner) case |
40 pc(s) |
| Harmonized System (HS) code |
84733080 |
