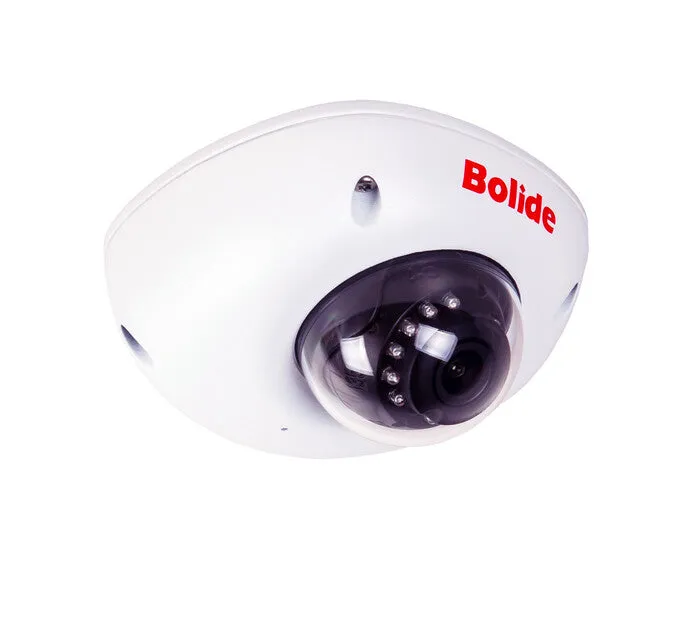

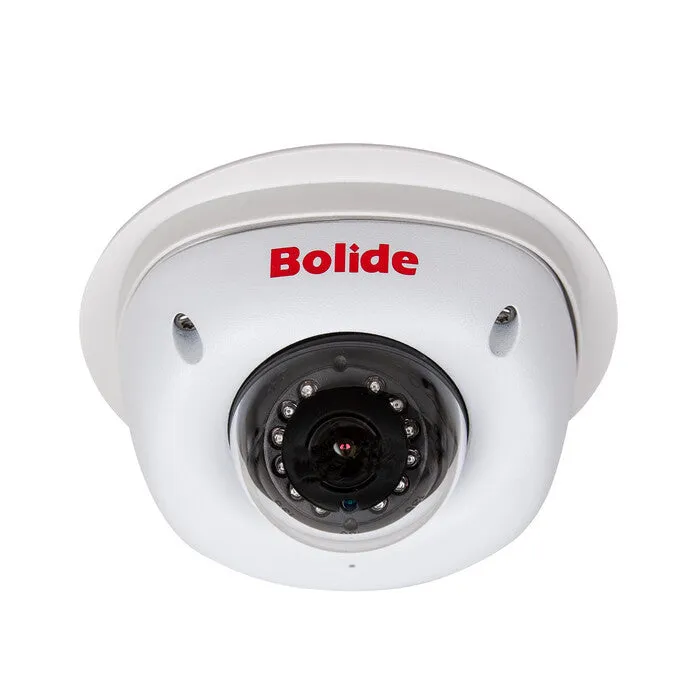

Bolide BN8009HA/NDAA security camera Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall
- Indoor & outdoor IP security camera
- CMOS 25.4 / 2.7 mm (1 / 2.7″) 5 MP 2592 x 1944 pixels
- Wired Ethernet LAN
- Night vision 9 m IR
- Dome Ceiling/wall Waterproof
- IP67 IK10
- White
- 376 g
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Protection features | Waterproof |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera shutter speed | 1/5 – 1/20000 s |
| White balance | Auto, Manual |
| Lens viewing angle, horizontal | 92° |
| Minimum illumination | 0 lx |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7″) |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Fixed focal length | 2.8 mm |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| Number of illumination LEDs | 12 |
| LED type | IR |
| Night vision distance | 9 m |
| Night vision | Yes |
| Video | |
|---|---|
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Bit rate | 8Kbps ~ 8Mbps |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Noise reduction technology | 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 15 fps |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1520, 2304 x 1296, 2592 x 1520, 2592 x 1944 |
| Video compression formats | H.264, H.265 |
| Video formats supported | H.264, H.265 |
| Total megapixels | 5 MP |
| Maximum resolution | 2592 x 1944 pixels |
| Audio | |
|---|---|
| Built-in microphone | Yes |
| Network | |
|---|---|
| Supported network protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, TP, NTP, UPnP, SNMP, HTTPS, FTP |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Privacy protection | Yes |
| Management features | |
|---|---|
| Reset button | No |
| Power | |
|---|---|
| DC output voltage | 12 |
| Power consumption (max) | 7 W |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 95% |
| Weight & dimensions | |
|---|---|
| Weight | 376 g |
| Diameter | 11.2 cm |
| Height | 64 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Sustainability | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA) |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Number of cameras | 1 |
