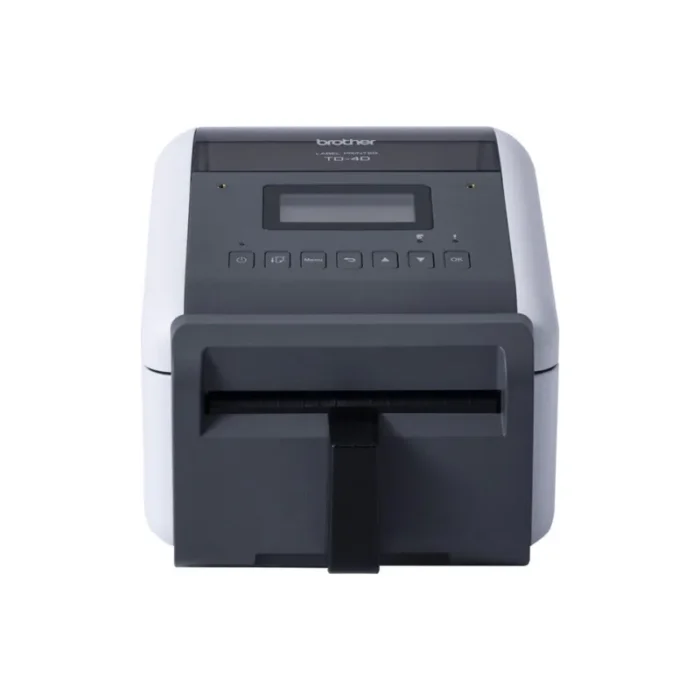

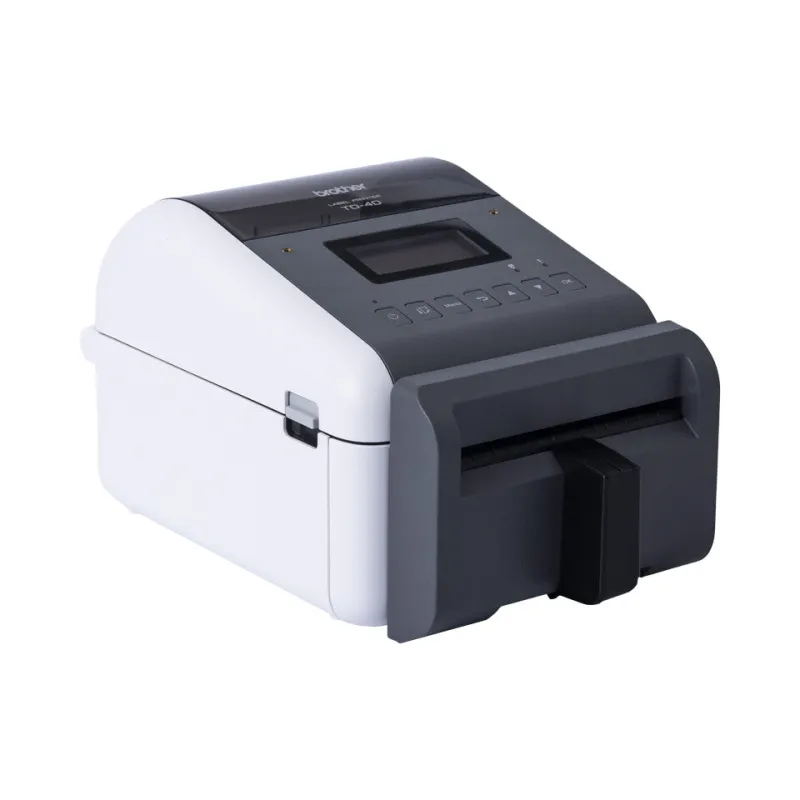

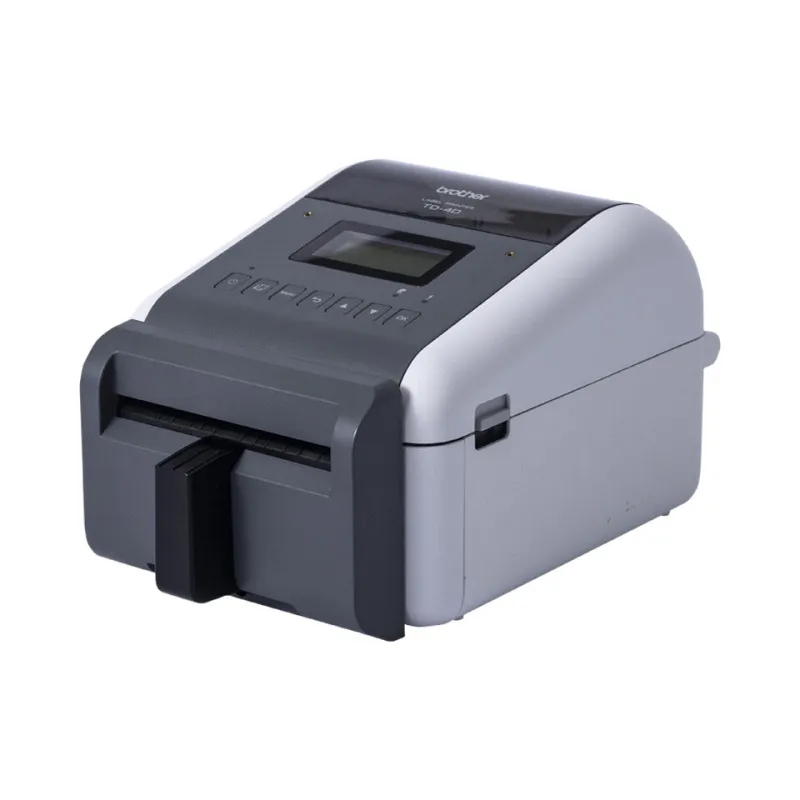

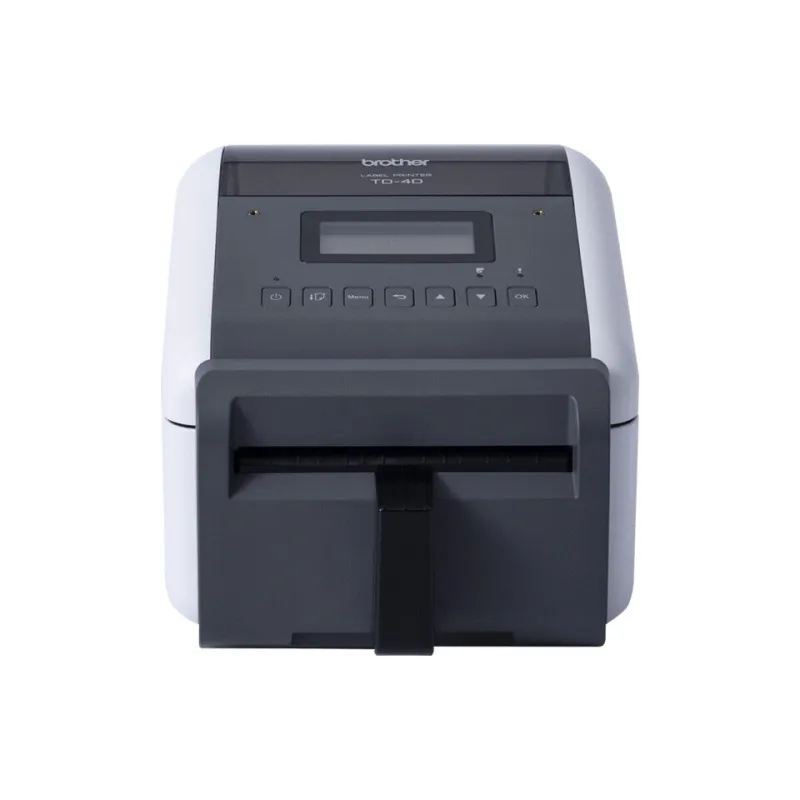

Brother TD-4550DNWBFC label printer Direct thermal 300 x 300 DPI 152 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth
- Prints linerless media
- Professional quality up to 300dpi print resolution
- Fast print speeds up to 6 inches per second
- Print width up to 4 inches / 108mm
- Automatic cutter with label taken sensor
- User-friendly backlit LCD screen
The TD-4550DNWBFC is a user-friendly desktop linerless label printer with an intuitive LCD screen. Its professional-quality resolution makes it ideal for printing 2D barcodes, ensuring easy scanning and quick processing.
Bluetooth connectivity allows for setup and configuration via a smartphone or tablet using the Mobile Deploy App, while wireless connectivity eliminates the need for network cables.
| Printing | |
|---|---|
| Minimum print length | 6.4 mm |
| Maximum print height | 3 m |
| Maximum printing width | 10.8 cm |
| Print speed | 152 mm/sec |
| Maximum resolution | 300 x 300 DPI |
| Colour | No |
| Print technology | Direct thermal |
| Paper handling | |
|---|---|
| Maximum label width | 11.8 cm |
| Maximum roll diameter | 12.7 cm |
| Autocutter | Yes |
| Maximum print size | 108 x 3000 mm |
| Ports & interfaces | |
|---|---|
| Mobile printing technologies | Apple AirPrint |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Bluetooth profiles | GATT, HCRP, OPP, SPP |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Connectivity technology | Wired & Wireless |
| Performance | |
|---|---|
| Built-in barcodes | AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1-128, ITF, MSI, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Flash memory | 64 MB |
| Internal memory | 256 MB |
| Page description languages | ESC P |
| Design | |
|---|---|
| Control type | Buttons |
| Display | LCD |
| Built-in display | Yes |
| Product colour | Black, White |
| Power | |
|---|---|
| Power source type | USB |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mobile operating systems supported | Android 10, Android 10.0, Android 11.0, Android 12.0, Android 13.0, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15, iOS 16, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3 |
| Mac operating systems supported | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 85% |
| Weight & dimensions | |
|---|---|
| Weight | 2.49 kg |
| Height | 155 mm |
| Depth | 255 mm |
| Width | 180 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 4.35 kg |
| Package height | 336 mm |
| Package depth | 261 mm |
| Package width | 266 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| AC adapter included | Yes |
| Cables included | AC, USB |
| Other features | |
|---|---|
| Warranty period | 3 year(s) |
