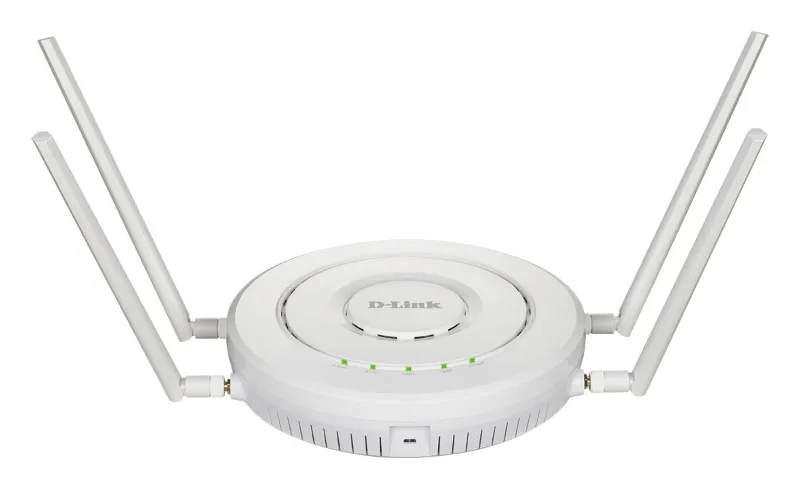

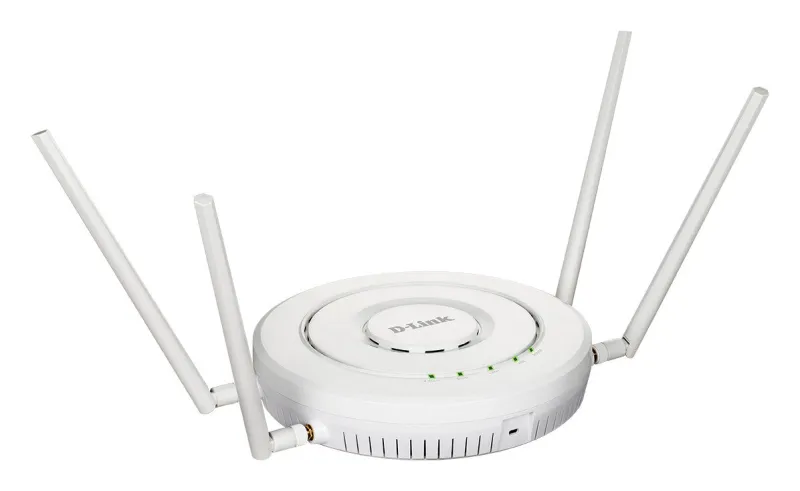

D-Link DWL-8620APE wireless access point 2533 Mbit/s White Power over Ethernet (PoE)
- 2.4 GHz
- 5 GHz
- Maximum data transfer rate: 2533 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
- AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
- Power over Ethernet (PoE)
- Antennas quantity: 4
The DWL Series Unified AC Wave 2 Wireless Access Points leverage the full potential of 802.11ac Wave 2 to provide unparalleled connectivity with ultra-high combined data rates. The DWL-8620AP and DWL-8620APE offer a faster combined speed of up to 2,533 Mbps. In addition, the DWL Series supports Link Aggregation3, which allows two Gigabit Ethernet ports to be linked together and act as a single port to double the available bandwidth and maximize the overall throughput of the access point.
| Features |
| Mean time between failures (MTBF) |
460185 h |
| Quality of Service (QoS) support |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Band steering |
Yes |
| VLAN support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| MIMO |
Yes |
| Automatic channel selection |
Yes |
| Channels quantity |
165 channels |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate |
2533 Mbit/s |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
| Auto Wireless Distribution System (WDS) |
Yes |
| Number of SSID supported |
32 |
| MAC address filtering |
Yes |
| Security algorithms |
AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise |
| Protocols |
| Management protocols |
SNMP v1/v2c/v3 |
| Management features |
| Web-based management |
Yes |
| Ports & interfaces |
| DC-in jack |
Yes |

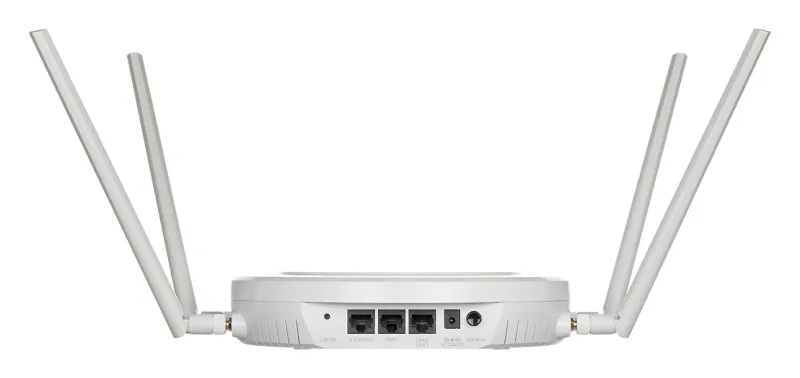

| Ethernet LAN (RJ-45) ports |
2 |
| Power |
| Power consumption (max) |
24.24 W |
| Output current |
2.5 A |
| Output voltage |
12 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
| Internal |
No |
| Reset button |
Yes |
| Product colour |
White |
| Placement |
Ceiling, Wall |
| Antenna |
| Antennas quantity |
4 |
| Technical details |
| Shipping (inner) case length |
44.9 cm |
| Shipping (inner) case width |
31.2 cm |
| Shipping (inner) case height |
32.8 cm |
| Shipping (inner) case net weight |
7.5 kg |
| Products per shipping (inner) case |
5 pc(s) |
| Pallet gross weight (air) |
226.3 kg |
| Master (outer) cases per pallet (air) |
24 pc(s) |
| Products per pallet (air) |
120 pc(s) |
| Pallet gross length |
110 cm |
| Pallet gross width |
120 cm |
| Pallet height (air) |
144.7 cm |
| Pallet gross weight (sea) |
276.9 kg |
| Master (outer) cases per pallet (sea) |
30 pc(s) |
| Products per pallet (sea) |
150 pc(s) |
| Pallet height (sea) |
177.5 cm |
| Shipping (inner) case gross weight |
8.37 kg |
| Certificates |
| Certification |
CE; EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601-1-2, EN301489-1, EN301489-17, EN300328, EN301893; FCC; IC; cUL+UL; CB; RCM; NCC; BSMI; |
| Weight & dimensions |
| Weight |
920 g |
| Height |
47 mm |
| Depth |
220 mm |
| Width |
220 mm |
| Packaging data |
| Package weight |
1.5 kg |
| Package height |
94 mm |
| Package depth |
296 mm |
| Package width |
295 mm |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 95% |
| Storage temperature (T-T) |
-20 – 65 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
