DELL 403-BBMF interface cards/adapter Internal Fiber
- Internal
- Host interface: PCIe
- Output interface: Fiber
- Purpose: Server
- Green

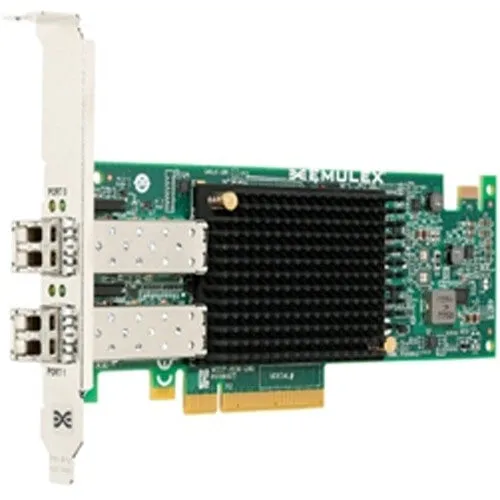

The Emulex LPe31002-M6-D Host Bus Adapter from Dell ™ offers an exceptional performance and advanced management functionality that can shave days off installing and managing adapters. It is coupled with up to 2x better IOPS performance per watt, which makes Dell 16GB Fibre Channel (16GFC) host bus adapters the clear choice for the toughest virtualized, cloud and mission critical deployments.
– Doubling the maximum FC link rate 16GFC and enhanced virtualization capabilities help support IT “green” initiatives
– Frame-level multiplexing\increases link efficiency and maximizes HBA performance
– Accelerates network access to SSDs with NVMe over Fiber Channel ready feature- supports the upcoming NVMe over FC T11 standard
| Ports & interfaces |
| Expansion card standard |
PCIe 3.0 |
| Output interface |
Fiber |
| Host interface |
PCIe |
| Design |
| Certification |
CSA, UL, FCC, RoHS, TUV Bauart, BSMI Class A, ICES Class A, VCCI Class A, MSIP Class A, China RoHS, RCM |
| Purpose |
Server |
| Product colour |
Green |
| Internal |
Yes |
| Operational conditions |
| Operating relative humidity (H-H) |
5 – 95% |
| Operating temperature (T-T) |
0 – 55 °C |
| Technical details |
| Compliance certificates |
RoHS |
| System requirements |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Packaging data |
| Quantity |
1 |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Other features |
| Compatibility |
– PowerEdge R630- PowerEdge R730- PowerEdge T630- PowerEdge R730XD- PowerEdge R530- PowerEdge R930- PowerEdge R640- PowerEdge R740- PowerEdge R940- PowerEdge R740XD- PowerEdge R440- PowerEdge T640- PowerEdge R540- PowerEdge R7415- PowerEdge R7425- PowerEdge R840- PowerEdge R940xa- PowerVault ME4012- PowerVault ME4024- PowerVault ME4084- PowerEdge R7515- PowerEdge R7525 |
| Compatible operating systems |
SUSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux |
| Connectivity technology |
Wired |
| Data link protocols |
16Gb Fibre Channel |
| Ports quantity |
2 |
| Data transfer rate |
14.025 Mbit/s |
