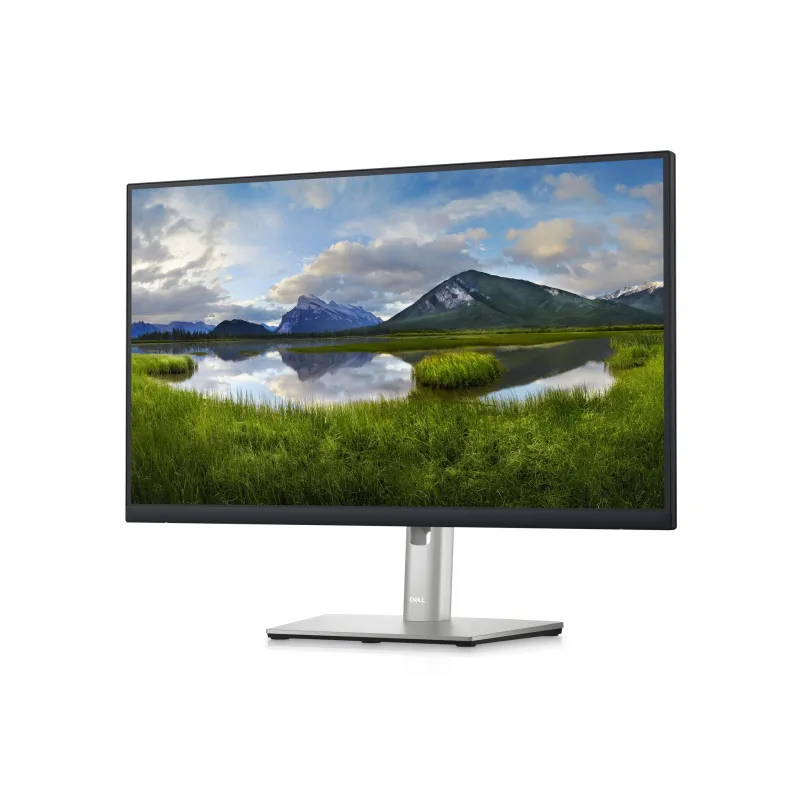

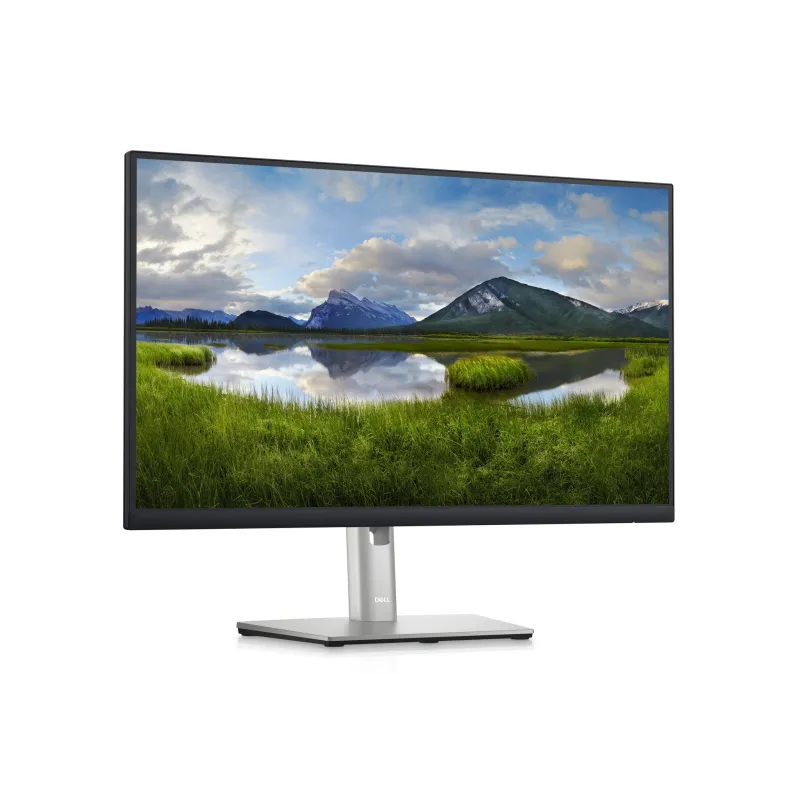

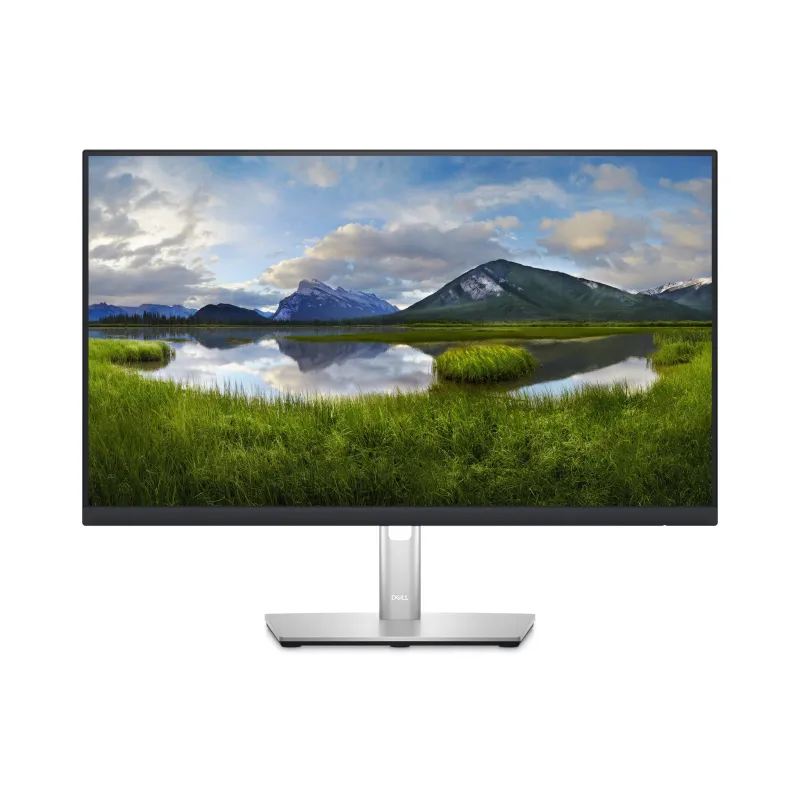

DELL P Series 24 USB-C Hub Monitor – P2423DE
- 60.5cm (23.8″) Quad HD 2560 x 1440 W-LED IPS
- 5ms, 16:9, 300cd/m², 1000:1
- USB, HDMI, DisplayPort
Experience pure productivity on a 23.8-inch QHD monitor featuring extensive connectivity and ComfortView Plus.
| Display |
| sRGB coverage (typical) |
99% |
| High Dynamic Range (HDR) supported |
No |
| Display diagonal (metric) |
60.45 cm |
| Viewable size diagonal |
60.5 cm |
| Viewable size, vertical |
29.6 cm |
| Viewable size, horizontal |
52.7 cm |
| Vertical scan range |
49 – 75 Hz |
| Horizontal scan range |
29 – 113 kHz |
| Pixel density |
123 ppi |
| Pixel pitch |
0.2058 x 0.2058 mm |
| Response time (fast) |
8 ms |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (typical) |
1000:1 |
| Supported video modes |
480p, 576p, 720p, 1080i, 1080p, 1440p |
| Screen shape |
Flat |
| Anti-glare screen |
Yes |
| Response time |
5 ms |
| Display brightness (typical) |
300 cd/m² |
| Backlight type |
W-LED |
| Panel type |
IPS |
| HD type |
Quad HD |
| Touchscreen |
No |
| Display technology |
LCD |
| Native aspect ratio |
16:9 |
| Display resolution |
2560 x 1440 pixels |
| Display diagonal |
60.5 cm (23.8″) |
| Performance |
| Low Blue Light technology |
Yes |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
| Built-in camera |
No |
| Built-in speaker(s) |
No |
| Design |
| Feet colour |
Silver |
| Detachable stand |
Yes |
| Front bezel colour |
Black |
| Product colour |
Black |
| Market positioning |
Business |
| Ports & interfaces |
| AC (power) in |
Yes |
| Charging port type |
USB Type-C |
| HDCP |
Yes |
| Headphone out |
No |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| USB Power Delivery up to |
90 W |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB Type-A downstream ports quantity |
4 |
| Number of USB Type-C upstream ports quantity |
1 |
| USB upstream port type |
USB Type-C |
| Built-in USB hub |
Yes |
| Ergonomics |
| LED indicators |
Yes |
| Plug and Play |
Yes |
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
-5 – 21° |
| Tilt adjustment |
Yes |
| Swivel angle range |
-45 – 45° |
| Swivelling |
Yes |
| Pivot angle |
90 – 90° |
| Pivot |
Yes |
| Adjustable height (max) |
15 cm |
| Height adjustment |
Yes |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
1057583 |
| Energy efficiency scale |
A to G |
| Power supply type |
Internal |
| Input current |
2 A |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (max) |
170 W |
| Power consumption (standby) |
0.3 W |
| Power consumption (typical) |
20 W |
| Energy consumption (SDR) per 1000 hours |
20 kWh |
| Energy efficiency class (HDR) |
Not available |
| Energy efficiency class (SDR) |
F |
| Operational conditions |
| Non-operating altitude |
5000 – 12192 m |
| Operating altitude |
0 – 5000 m |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Bezel width (bottom) |
1.67 cm |
| Bezel width (top) |
5.42 mm |
| Bezel width (side) |
5.48 mm |
| Weight (without stand) |
3.92 kg |
| Height (without stand) |
318.5 mm |
| Depth (without stand) |
52.1 mm |
| Width (without stand) |
537.8 mm |
| Weight (with stand) |
5.55 kg |
| Height (with stand) |
496.1 mm |
| Depth (with stand) |
179.6 mm |
| Width (with stand) |
537.8 mm |
| Packaging data |
| Package weight |
7.97 kg |
| Packaging content |
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, USB Type-A to USB Type-C, USB Type-C to USB Type-C |
| Stand included |
Yes |
| Sustainability |
| Doesn’t contain |
PVC/BFR |
| Sustainability certificates |
ENERGY STAR, TCO |
| Carbon footprint |
| Total carbon emissions, standard deviation (kg of CO2e) |
140 |
| Carbon emissions, energy usage (kg of CO2e) |
191 |
| PAIA version |
1.3.0 |
| Total carbon footprint (kg of CO2e) |
587 |
| Carbon emissions, manufacturing (kg of CO2e) |
322 |
| Carbon emissions, logistics (kg of CO2e) |
70 |
| Carbon emissions, end-of-life (kg of CO2e) |
4 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
396 |
| General |
| Product family |
P Series |
| Other features |
| Ethernet LAN (RJ-45) ports |
1 |
| Heavy metals free |
Hg (mercury) |
| Compliance certificates |
RoHS |
| Logistics data |
| Harmonized System (HS) code |
85285210 |
