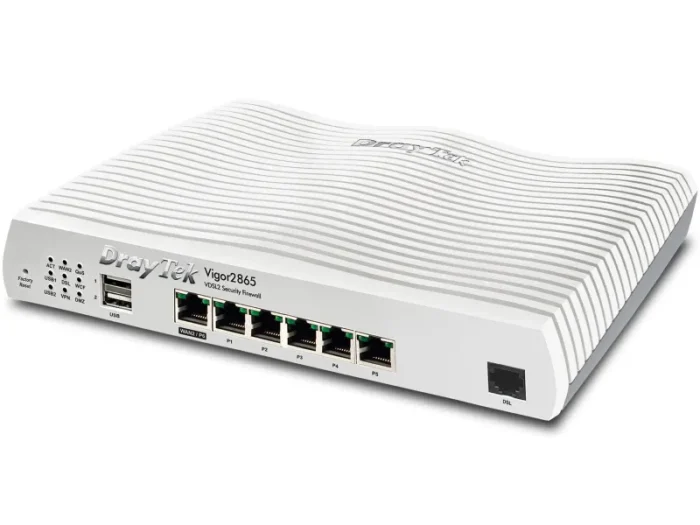

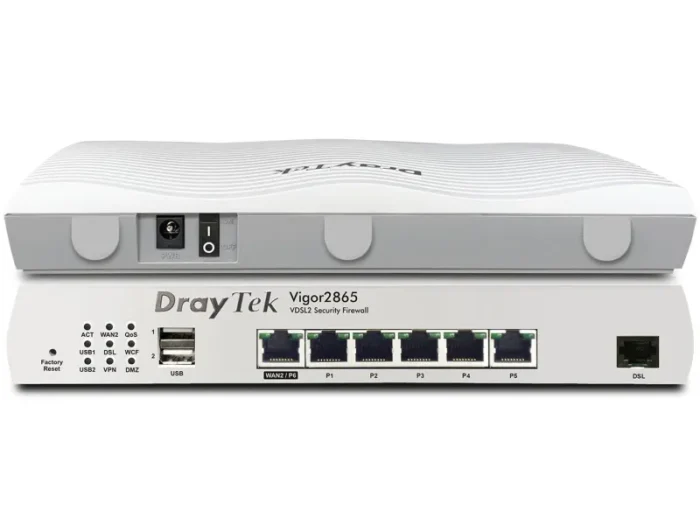

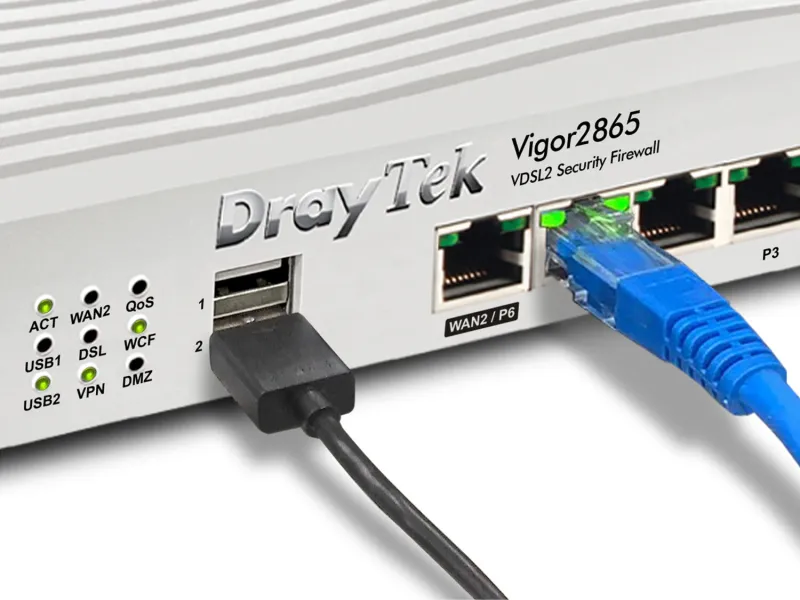

DrayTek Vigor 2865 wired router Gigabit Ethernet Grey, White
- Download speed up to 300 Mbps
- Recommended for 30 clients
- Delivers link rate up to 3 Gbps
- IPsec VPN throughput up to 300 Mbps
Vigor2865 Series is a VDSL2 35b/ADSL2+ Security Firewall router integrating a DSL modem which is compatible with variants of ADSL and VDSL, including profile 35b supervectoring. There is also a Gigabit Ethernet WAN port for broadband connections to share the traffic load or serve as a failover connection. 3G/4G/LTE USB modem can also be attached to the USB ports of the router. The 2865 LTE series includes models with built-in 802.11ac Wave 2 wireless standard and VoIP gateway.
VoIP First
VoIP is always with top priority! With default UDP 5060 port (configurable), VoIP QoS is out-of-box ready.
Improve Experience for Business-Critical Apps
Select your business critical apps, and easily put them into QoS classes.
Flexible Bandwidth Allocation
Bandwidth will be reserved for high-priority classes, and can be used by low-priority classes when available.
| WAN connection |
| SFP WAN |
No |
| 3G/4G USB modem compatibility |
Yes |
| SIM card slot |
No |
| DSL WAN |
Yes |
| Ethernet WAN |
Yes |
| Network |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet interface type |
Gigabit Ethernet |
| Networking standards |
IEEE 802.1Q |
| DSL features |
| VDSL2 |
Yes |
| VDSL |
Yes |
| ADSL2+ |
Yes |
| ADSL2 |
Yes |
| ADSL |
Yes |
| Management features |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Ports & interfaces |
| USB version |
2.0 |
| USB ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
5 |
| Protocols |
| DHCP client |
Yes |
| DHCP server |
Yes |
| Security |
| Network address translation (NAT) |
Yes |
| Access Control List (ACL) |
Yes |
| Firewall |
Yes |
| Security algorithms |
WEP, WPA, WPA2 |
| Packaging content |
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| Design |
| On/off switch |
Yes |
| Product colour |
Grey, White |
| Power |
| Output voltage |
12 V |
| AC input voltage |
220 – 240 V |
| Power source type |
AC |
| Power consumption (typical) |
24 W |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-25 – 70 °C |
| Operating temperature (T-T) |
0 – 45 °C |
| Weight & dimensions |
| Weight |
620 g |
| Height |
46 mm |
| Depth |
166 mm |
| Width |
241 mm |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
