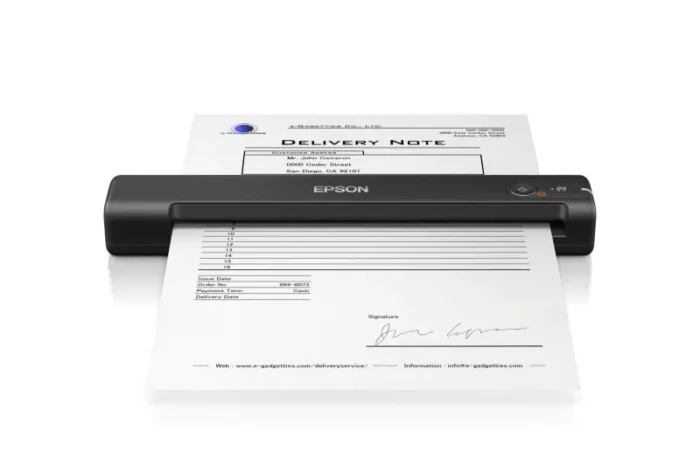

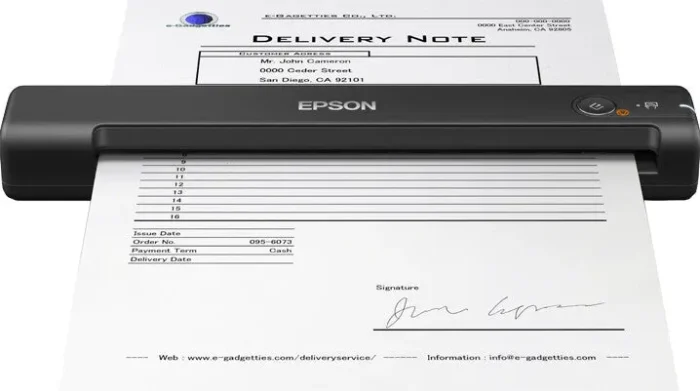

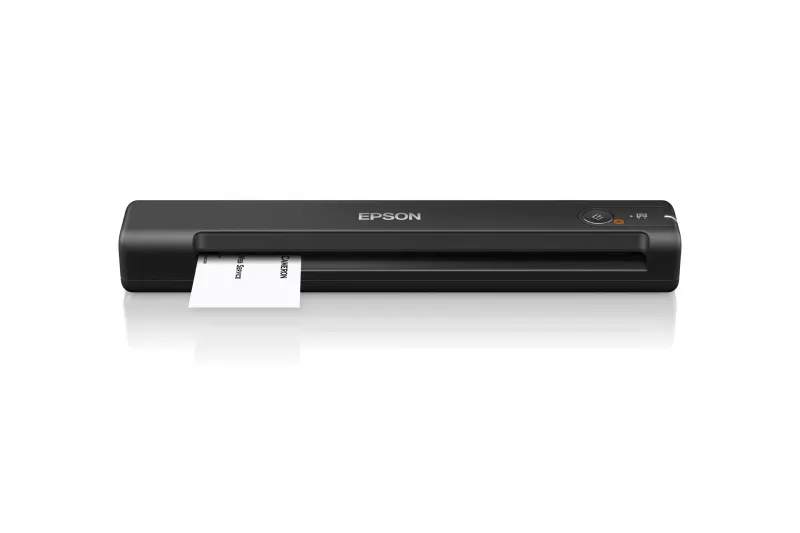

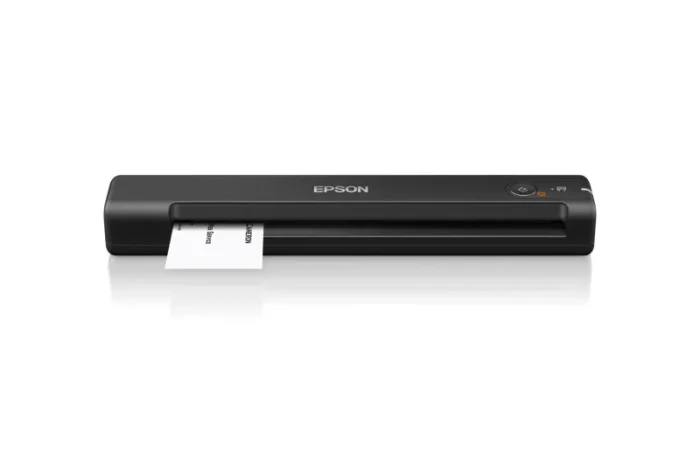

Epson WorkForce ES-50
- Scan anywhere: Small, lightweight design
- USB connectivity: Powered by USB
- Fast scanning speeds: At up to 5.5 seconds per page
- Simplify your workload: Continuous scanning with automatic feed mode
- Includes new ScanSmart software: Get scanning quickly and easily
Scan anywhere
The compact design and USB connectivity make it easy to use the ES-50 wherever it’s needed.
Highly organised
Epson’s new ScanSmart software makes it effortless for anyone to scan how they want, providing an easy-to-use step by step scanning solution. Users can save and send files in common formats like PDF, jpeg, tiff and many more. Continuous scanning with automatic feed mode speeds up the scanning process, while the CIS sensor delivers instant scanning with no warm up time.
Flexible
The ability to scan a wide range of document and media types makes this model a reliable asset. It handles paper from 35gsm to 270gsm, and long paper up to 1.8 metres.
| Scanning | |
|---|---|
| Scan speed (b/w, low res, A4) | 5.5 sec/page |
| Scan speed (colour, low res, A4) | 5.5 sec/page |
| Output greyscale depth | 8 bit |
| Output colour depth | 24 bit |
| Input greyscale depth | 16 bit |
| Input colour depth | 48 bit |
| Duplex scanning | No |
| Colour scanning | Yes |
| Optical scanning resolution | 600 x 600 DPI |
| Design | |
|---|---|
| Product colour | Black |
| Built-in display | No |
| Scanner type | Handheld scanner |
| Performance | |
|---|---|
| Scan drivers | WIA, SANE, ICA |
| Daily duty cycle (max) | 300 pages |
| Sensor type | CIS |
| Input capacity | |
|---|---|
| Auto document feeder (ADF) input capacity | 1 sheets |
| Paper handling | |
|---|---|
| Auto Document Feeder (ADF) media weight | 35 – 270 g/m² |
| Paper tray media weight | 35 – 270 g/m² |
| Legal | Yes |
| Letter | Yes |
| ISO B-series sizes (B0…B9) | B5, B6 |
| ISO A-series sizes (A0…A9) | A3, A4, A5, A6, A7, A8 |
| Scanning media types supported | Business Card, Plastic Card, Post Card(JPN) |
| Maximum ISO A-series paper size | A4 |
| Ports & interfaces | |
|---|---|
| Standard interfaces | USB 2.0 |
| USB version | 2.0 |
| USB port | Yes |
| Power | |
|---|---|
| Power supply type | USB |
| Weight & dimensions | |
|---|---|
| Weight | 270 g |
| Height | 34 mm |
| Depth | 47 mm |
| Width | 272 mm |
| Packaging data | |
|---|---|
| Package weight | 550 g |
| Package height | 65 mm |
| Package depth | 330 mm |
| Package width | 140 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Bundled software | Epson Scan 2, Epson ScanSmart |
| Drivers included | Yes |
| Cables included | USB |
| General | |
|---|---|
| Product family | WorkForce |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016 |
| Compatible operating systems | Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64 Bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 10 – 85% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 5 – 35 °C |
| Other features | |
|---|---|
| Output resolutions | 600 dpi |
| Image formats supported | JPEG |
| Technical details | |
|---|---|
| Scan technology | ReadyScan LED |
| Logistics data | |
|---|---|
| Pallet gross weight | 0 g |
| Master (outer) case length | 360 mm |
| Master (outer) case height | 320 mm |
| Master (outer) case width | 350 mm |
| Master (outer) case gross weight | 0 g |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet gross height | 171 cm |
| Products per master (outer) case | 10 pc(s) |
| Products per pallet layer | 60 pc(s) |
| Products per pallet layer (UK) | 60 pc(s) |
| Products per pallet (UK) | 360 pc(s) |
| Pallet weight (UK) | 0 g |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Pallet height (UK) | 171 cm |
| Master (outer) case GTIN (EAN/UPC) | 8715946656922 |
| Harmonized System (HS) code | 84716070 |
| Country of origin | China |
| Products per pallet | 360 pc(s) |
