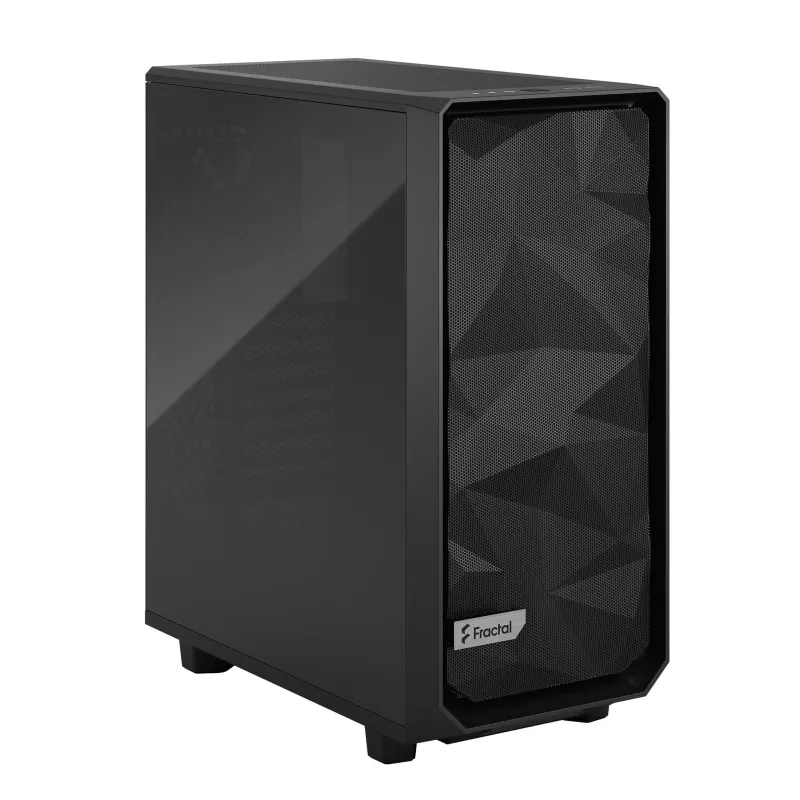

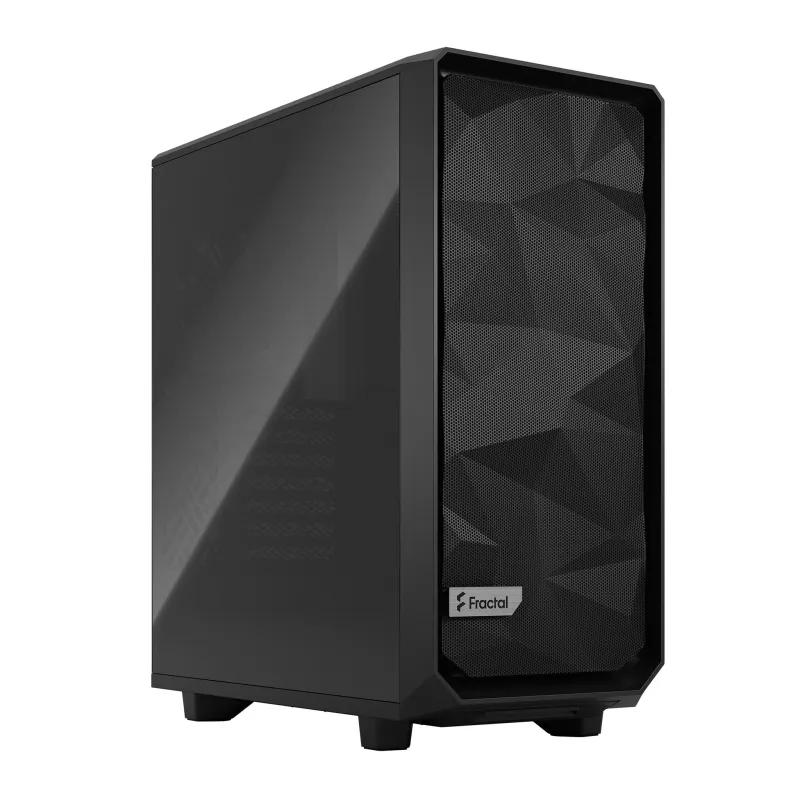

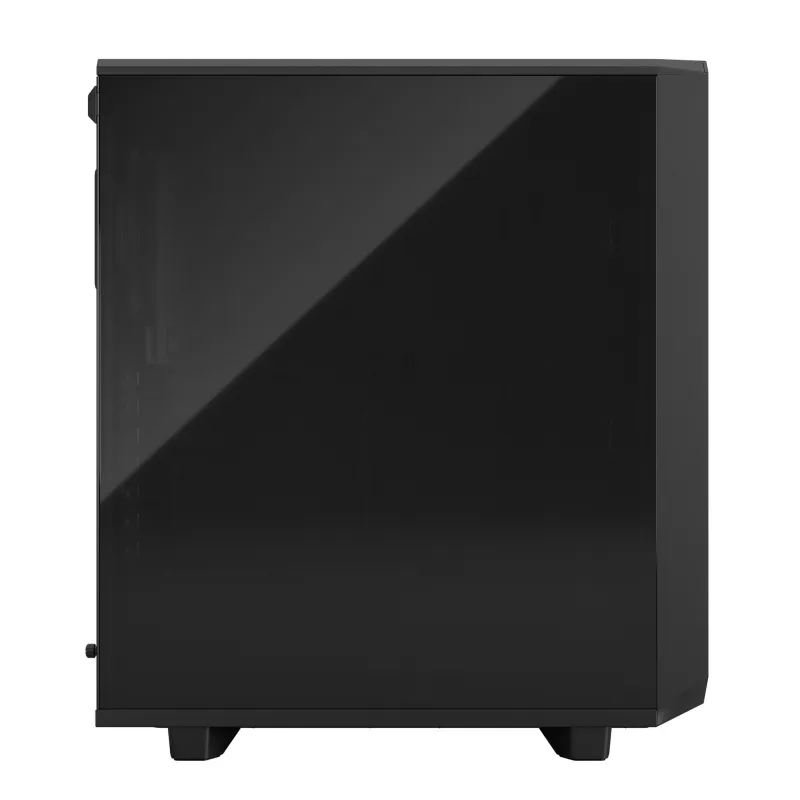

Fractal Design Meshify 2 Compact Tower Black
- Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
- Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
- Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases
Removable front filter
– New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
– Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
– New front nylon filter that can be removed for increased airflow
Robust cooling
– Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm
– Open interior layout creates a smooth airflow path from intake to exhaust
– Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)
Fully featured
– Seamlessly integrated steel panel with steel frame support and bolt-free top-latching mechanism
– Flexible storage options supporting two 2.5”/3.5” drives and up to four SSDs (two SSD brackets included)
– Improved cable routing with three integrated cable alignment clips and six velcro straps
Top priority access
The fully removable top panel opens to provide excellent interior access
Spaciously compact
Clever layout enables the capacity of much larger cases
Type-C interface
USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps
Smooth and quiet operation
The sturdy steel drive trays are vibration-damped by cushioning rubber grommets
Full length shroud
A full-length power supply shroud readily conceals the drive cage and excess cabling
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum graphics card length | 36 cm |
| Maximum CPU cooler height | 16.9 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5″ bays | 4 |
| Number of 3.5″ bays | 2 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | Steel, Tempered glass |
| Type | PC |
| Form factor | Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 240 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 280,360 mm |
| Bottom fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 1 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5″ |
| Weight & dimensions | |
|---|---|
| Weight | 8.1 kg |
| Height | 475 mm |
| Depth | 424 mm |
| Width | 210 mm |
| Packaging data | |
|---|---|
| Package weight | 9.8 kg |
| Package height | 554 mm |
| Package depth | 542 mm |
| Package width | 320 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
