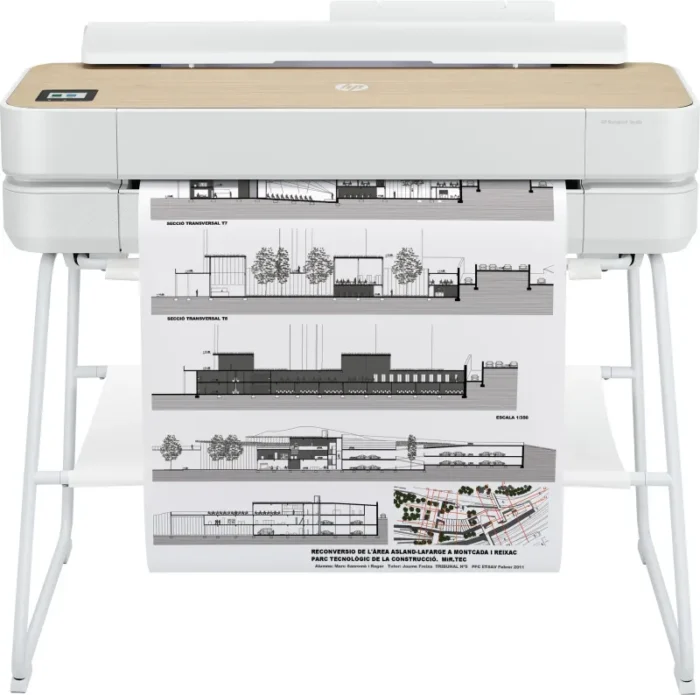

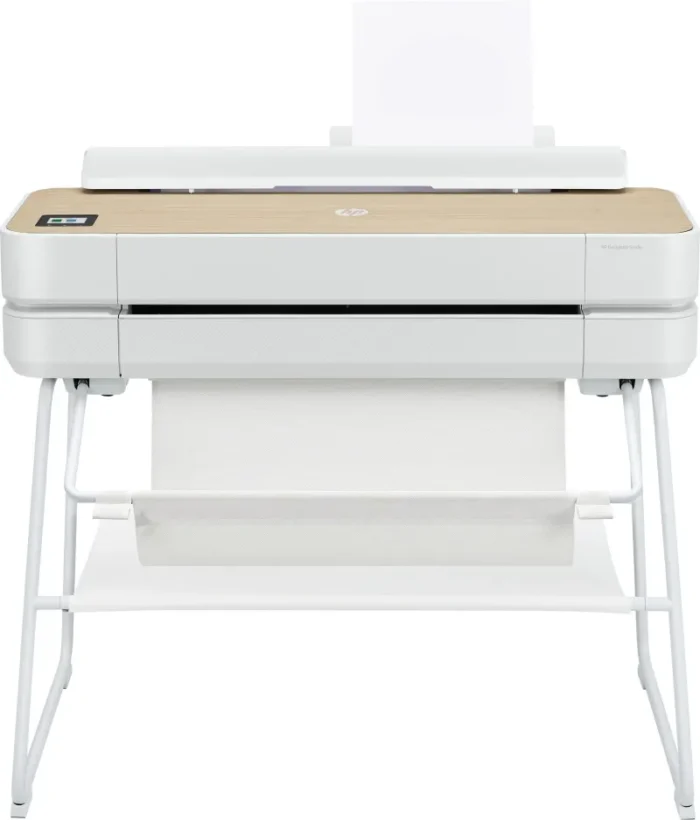

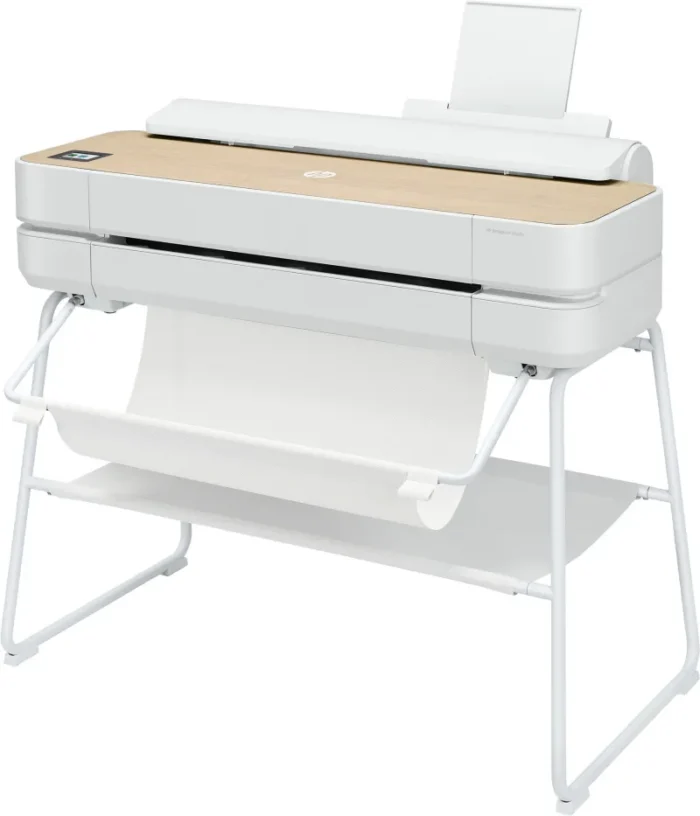

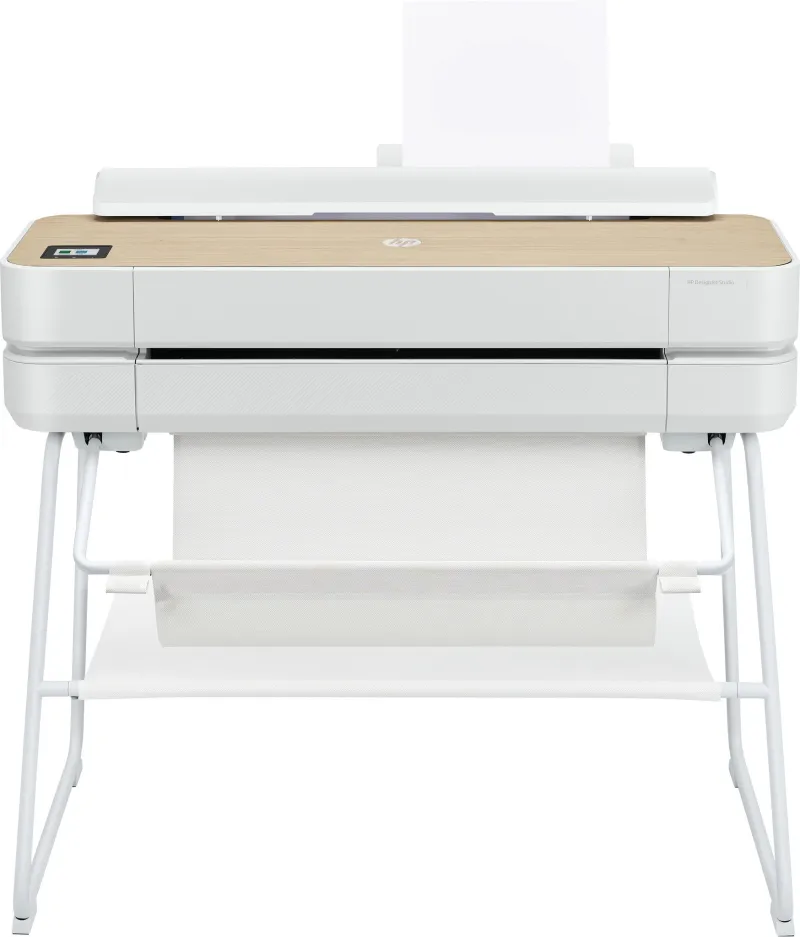

HP Designjet Studio 24-in Printer
Featuring a modern office design that compliments its environment and performance to match. Print multi-size jobs easily with auto switching between roll and tray. Enjoy high-speed printing as fast as 26 sec per A1 plot. 1 GB memory.
Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
| Printing |
| Print head |
1 |
| Printing colours |
Black, Cyan, Magenta, Yellow |
| Page description languages |
CALS G4, HP-GL/2, HP-RTL, JPEG, URF |
| Number of print cartridges |
4 |
| Print resolution colour |
2400 x 1200 DPI |
| Maximum resolution |
2400 x 1200 DPI |
| Colour |
Yes |
| Print technology |
Thermal inkjet |
| Paper handling |
| Maximum roll diameter |
10 cm |
| Maximum roll width |
61 cm |
| Media thickness |
0.3 mm |
| Paper tray media types |
Bond paper, Coated paper, Glossy paper, Heavy paper, Matte paper, Photo paper, Plain paper, Satin paper, Semi-glossy paper |
| Maximum print size |
610 x 1897 mm |
| Ports & interfaces |
| Ethernet LAN data rates |
1000 Mbit/s |
| USB port |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Performance |
| HP segment |
Business |
| Certification |
WEEE; ErP |
| Country of origin |
China |
| Built-in display |
No |
| Product colour |
White |
| Power |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (standby) |
0.2 W |
| Power consumption (typical) |
35 W |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 95% |
| Storage temperature (T-T) |
-25 – 55 °C |
| Operating relative humidity (H-H) |
20 – 80% |
| Operating temperature (T-T) |
5 – 40 °C |
| Sustainability |
| Sustainable technologies and materials |
Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; First net carbon neutral HP DesignJet plotter; ENERGY STAR® certified |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
33.6 kg |
| Height |
932 mm |
| Depth |
555 mm |
| Width |
1013 mm |
| Packaging data |
| Package weight |
43 kg |
| Package height |
524 mm |
| Package depth |
590 mm |
| Package width |
1199 mm |
| General |
| Product family |
Designjet |
| Logistics data |
| Harmonized System (HS) code |
84433210 |
