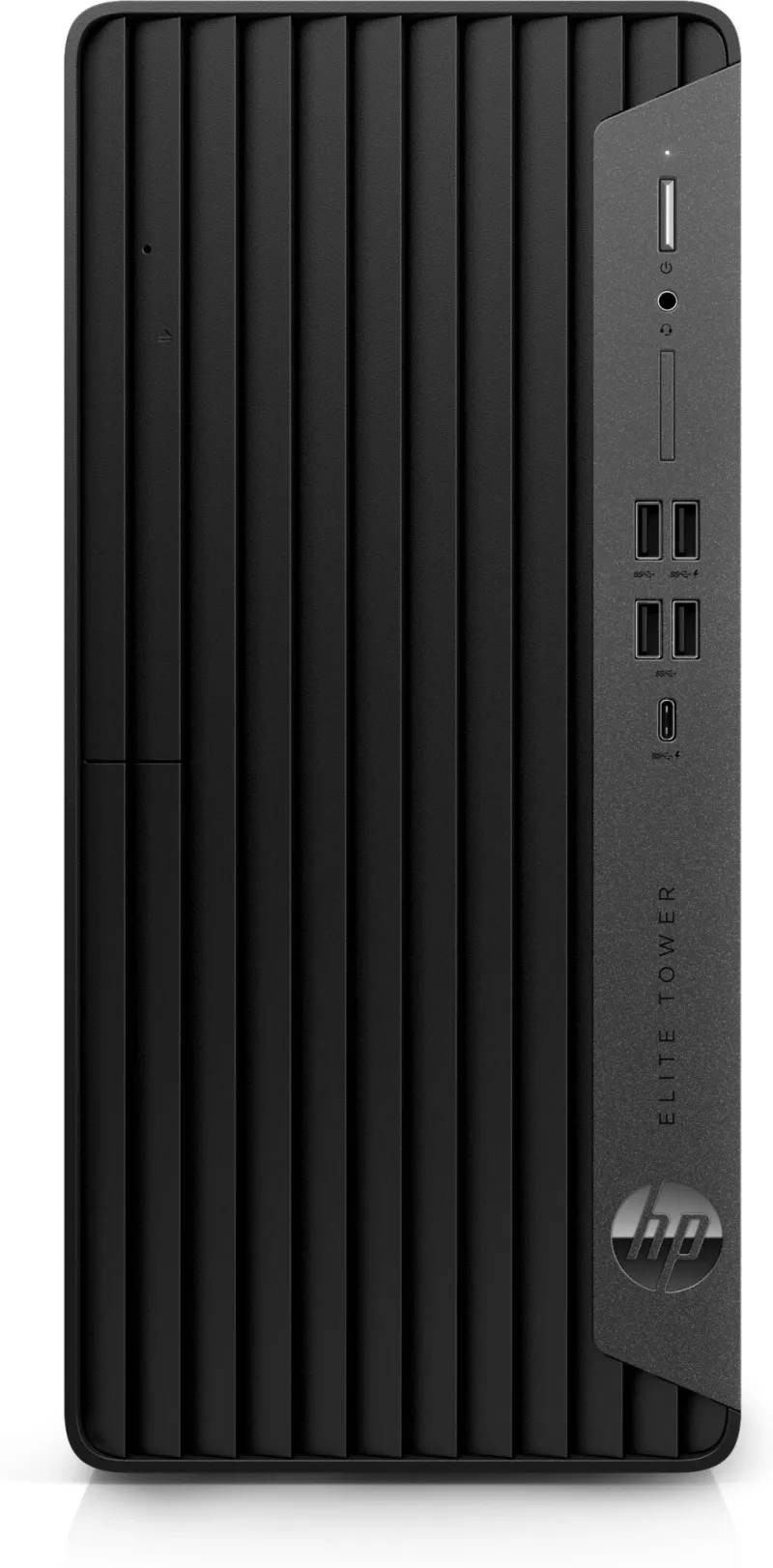

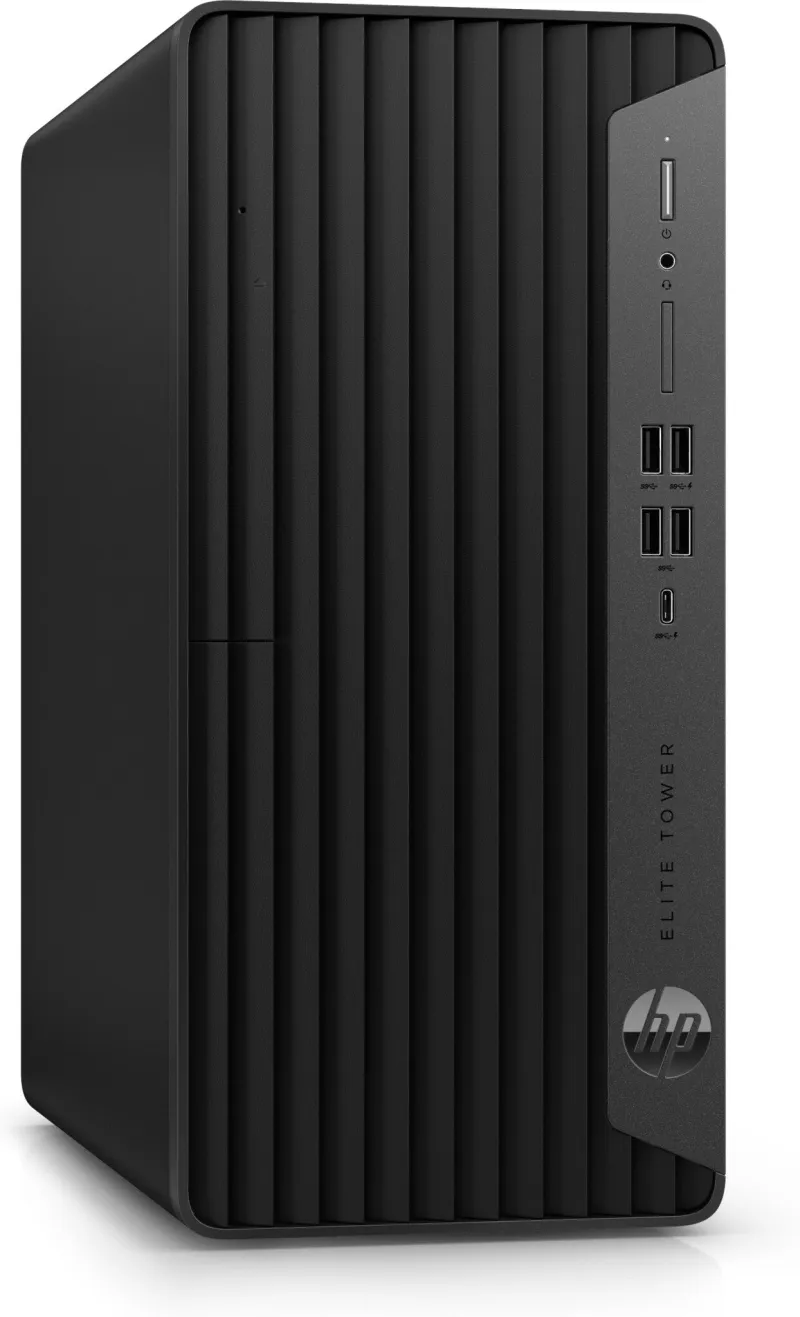

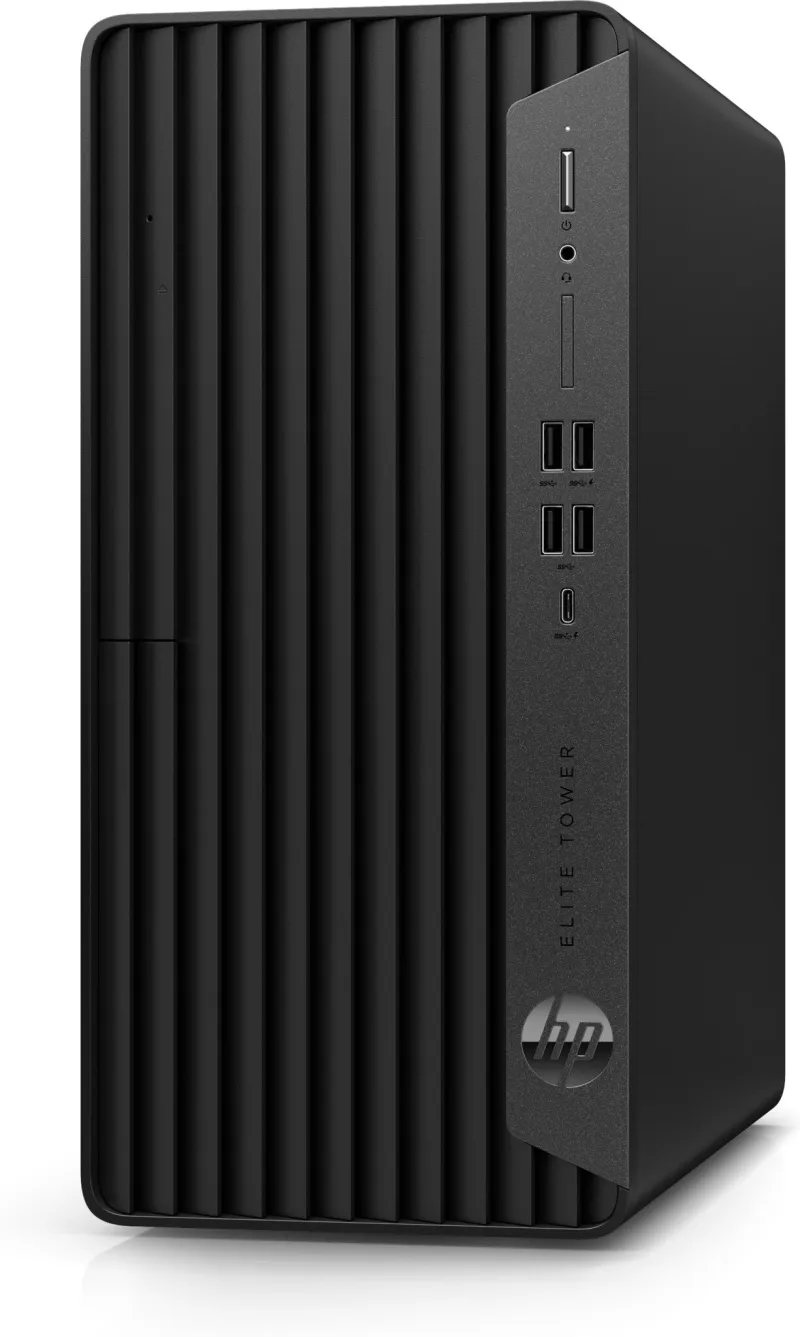

HP Elite 800 G9 Intel® Core™ i7 i7-12700 32 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Tower PC Black
- Intel® Core™ i7-12700 (up to 4.9 GHz with Intel® Turbo Boost Technology, 25 MB L3 cache, 12 cores, 20 threads)
- Windows 11 Pro (preinstalled with Windows 10 Pro Downgrade)
- Intel® UHD Graphics
- 32 GB memory; 512 GB SSD storage
A power user’s PC
The HP Elite Tower 800 delivers the high-performance needed for power users whose workloads include handling complex programs, rendering, and demanding graphics content. Equipped with the latest Intel® processor[2], speedy storage, and memory, this is the right PC for your most demanding tasks.
| Processor |
| Bus type |
DMI4 |
| Processor cache type |
L3 |
| Processor cache |
25 MB |
| Processor frequency |
2.1 GHz |
| Processor boost frequency |
4.9 GHz |
| Processor threads |
20 |
| Processor cores |
12 |
| Processor model |
i7-12700 |
| Processor generation |
12th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Memory clock speed |
4800 MHz |
| Memory slots |
4x DIMM |
| Memory layout (slots x size) |
2 x 16 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
128 GB |
| Internal memory |
32 GB |
| Storage |
| SSD interface |
PCI Express |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| SSD memory type |
TLC |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| WLAN controller manufacturer |
Intel |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Line-out |
Yes |
| Line-in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2×2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
3 |
| Expansion slots |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| Design |
| Country of origin |
China |
| Introduction year |
2022 |
| Product colour |
Black |
| Number of 3.5″ bays |
2 |
| Chassis type |
Tower |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Password protection type |
BIOS, Power on, User |
| Password protection |
Yes |
| Audio chip |
Realtek ALC3252 |
| Motherboard chipset |
Intel Q670 |
| Market positioning |
Premium |
| Product type |
PC |
| Software |
| Pre-installed software |
HP Notifications; HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP Connection Optimizer; HP Privacy Settings; HP Desktop Support Utilities; HP Easy Clean; HP Setup Integrated OOBE; Buy Microsoft Office (sold separately); HP Services Scan |
| Operating system installed |
Windows 11 Pro |
| Processor special features |
| Intel 64 |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Embedded options available |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Idle States |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Execute Disable Bit |
Yes |
| CPU configuration (max) |
1 |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Brand-specific features |
| HP GTIN (EAN/UPC) |
196548837700 |
| HP segment |
Business |
| HP Management tools |
HP Client Catalog (download); HP Driver Packs (download); HP Cloud Recovery; HP Image Assistant Gen 5 (download); HP Client Management Script Library (download); HP Connect for Microsoft Endpoint Manager; HP Manageability Integration Kit (download); HP Patch Assistant (download) |
| HP Security tools |
HP Sure Run; Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)(FIPS 140-2 Level 2 Certified); HP Sure Start; HP Secure Erase; HP Sure Click; HP Sure Sense; Absolute Persistence module; HP Sure Recover; HP Sure Admin; HP Client Security Manager Gen7; HP Tamper Lock |
| HP Support Assistant |
Yes |
| Power |
| 80 PLUS certification |
80 PLUS Platinum |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 90% |
| Operating temperature (T-T) |
10 – 35 °C |
| Certificates |
| Low halogen |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Sustainable technologies and materials |
40% post-consumer recycled plastic; 10% ITE-derived closed loop plastic; Low Halogen; Bulk packaging available; 80 Plus® Platinum power supplies available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; Ocean-bound plastic in speaker enclosure and I/O strip |
| Weight & dimensions |
| Package weight |
8.87 kg |
| Package height |
499 mm |
| Package depth |
400 mm |
| Package width |
287 mm |
| Weight |
6.15 kg |
| Height |
155 mm |
| Depth |
308 mm |
| Width |
337 mm |
| Packaging content |
| Keyboard included |
Yes |
| Keyboard connectivity |
Wired |
| Display included |
No |
| General |
| Product family |
Elite |
| Logistics data |
| Harmonized System (HS) code |
8471500000 |
| Other features |
| Keyboard type |
USB |
| Number of free internal memory expansion slots |
2 |
