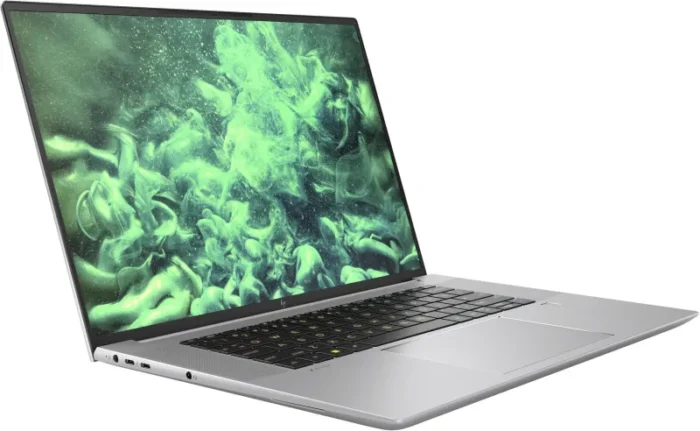

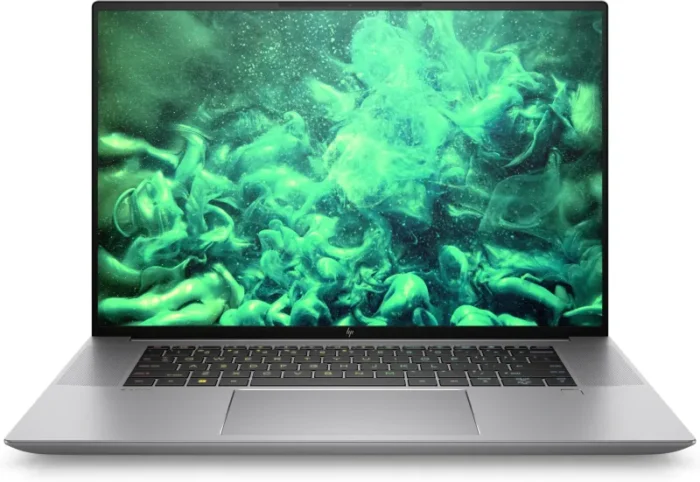

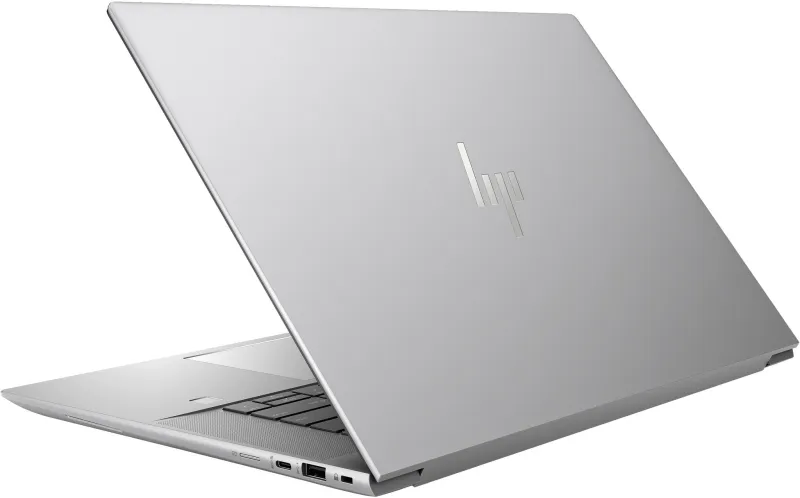

HP ZBook Studio 16 G10 Intel® Core™ i7 i7-13800H Mobile workstation 40.6 cm (16″) WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 2000 Ada Wi-Fi 6E (802.11ax) Windows 11 Pro Silver
- Intel® Core™ i7-13800H (up to 5.2 GHz with Intel® Turbo Boost Technology, 24 MB L3 cache, 14 cores, 20 threads)
- Windows 11 Pro
- 40.6 cm (16″) diagonal WQUXGA display
- NVIDIA RTX™ 2000 Ada Generation Laptop GPU (8 GB GDDR6 dedicated)
- 32 GB memory; 1 TB SSD storage
Powerfully immersive. Perfectly sized
Be ready when inspiration strikes. Packed with professional performance in an incredibly sleek PC that comfortably fits in your bag, the ZBook Studio is engineered to get you in the zone and help you stay focused. Now you can build complex assemblies, render in real time or visualize data—from anywhere.
| Design |
| Original brand name |
HP |
| Market positioning |
Performance |
| Form factor |
Clamshell |
| Product colour |
Silver |
| Product type |
Mobile workstation |
| Display |
| Display diagonal (metric) |
40.6 cm |
| RGB colour space |
DCI-P3 |
| Colour gamut |
100% |
| Display brightness |
500 cd/m² |
| Display bezel technology |
Micro-Edge |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:10 |
| Panel type |
IPS |
| HD type |
WQXGA |
| Touchscreen |
No |
| Display resolution |
3840 x 2400 pixels |
| Display diagonal |
40.6 cm (16″) |
| Processor |
| Configurable TDP-down |
35 W |
| Processor cache type |
L3 |
| Processor cache |
24 MB |
| Processor frequency |
2.5 GHz |
| Processor boost frequency |
5.2 GHz |
| Processor threads |
20 |
| Processor cores |
14 |
| Processor model |
i7-13800H |
| Processor generation |
13th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Non-ECC |
Yes |
| Memory channels |
Dual-channel |
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory clock speed |
5600 MHz |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
32 GB |
| Storage |
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD interface |
PCI Express |
| NVMe |
Yes |
| SSD memory type |
TLC |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
| Number of discrete graphics cards |
1 |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board graphics card family |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA RTX 2000 Ada |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speakers manufacturer |
Bang & Olufsen |
| Number of built-in speakers |
4 |
| Built-in speaker(s) |
Yes |
| Audio system |
B&O PLAY |
| Camera |
| Infrared (IR) camera |
Yes |
| Front camera HD type |
HD |
| Front camera |
Yes |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge ports |
2 |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Keyboard |
| Keyboard special features |
Resistente a derrames |
| Input device model |
HP Premium Quiet Keyboard |
| Full-size keyboard |
Yes |
| Spill-resistant keyboard |
Yes |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Pointing device |
Clickpad |
| Software |
| Pre-installed software |
Bing search for IE11; HP Hotkey Support; HP Noise Cancellation Software; HP Performance Advisor; HP Support Assistant; Native Miracast support; HP Connection Optimizer; myHP; HP Privacy Settings; Data Science Stack; HP Easy Clean; HP PC Hardware Diagnostics; Windows 10 Cloud Recovery Client; HP Z Light Space; HP Camera & Super Resolution Software; HP Services Scan; Microsoft 365 and Office (sold separately and Internet access required for activation); HP Presence |
| Operating system installed |
Windows 11 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Brand-specific features |
| HP GTIN (EAN/UPC) |
197498272290 |
| HP segment |
Business |
| HP Management tools |
HP Power Manager |
| HP Security tools |
Absolute persistence module; HP Credential Manager; HP Power On Authentication; Master Boot Record security; Pre-boot authentication; Windows Defender; HP Manageability Integration Kit; HP BIOSphere Gen6; HP Sure Start Gen6; HP Sure Admin; HP Image Assistant; Nano Security Lock Slot; HP Image Assistant Gen4.6; HP Client Security Manager Gen7; Trusted Platform Module TPM 2.0; HP Privacy Key |
| HP Support Assistant |
Yes |
| HP Connection Optimizer |
Yes |
| Battery |
| Fast charging time (50%) |
30 min |
| Fast charging |
Yes |
| Battery capacity |
86 Wh |
| Number of battery cells |
6 |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| DC-in jack |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| AC adapter power |
200 W |
| Security |
| Password protection type |
BIOS, Power on, User |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
Yes |
| Cable lock slot |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
TCO |
| Sustainable technologies and materials |
Low Halogen |
| Weight & dimensions |
| Height |
19 mm |
| Depth |
242 mm |
| Width |
356 mm |
| Weight |
1.73 kg |
| Packaging data |
| Package height |
345 mm |
| Package depth |
69 mm |
| Package width |
552 mm |
| General |
| Product family |
ZBook Studio |
| Packaging content |
| Keyboard included |
Yes |
| Technical details |
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
| Other features |
| Number of speakers |
4 |
