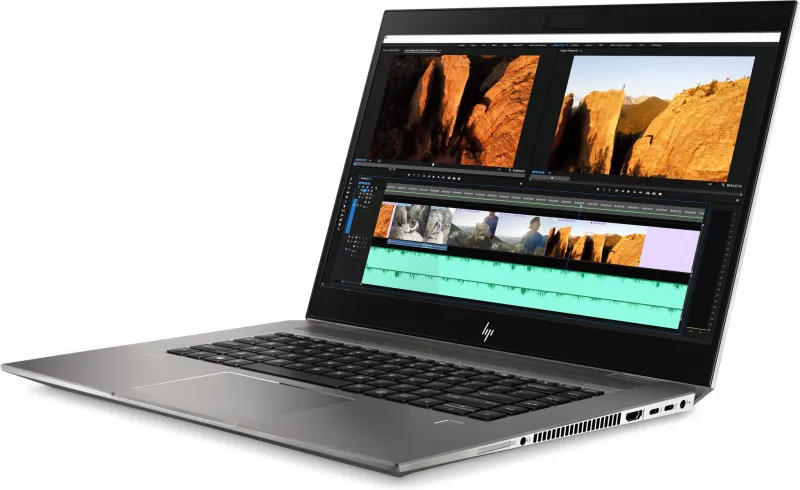

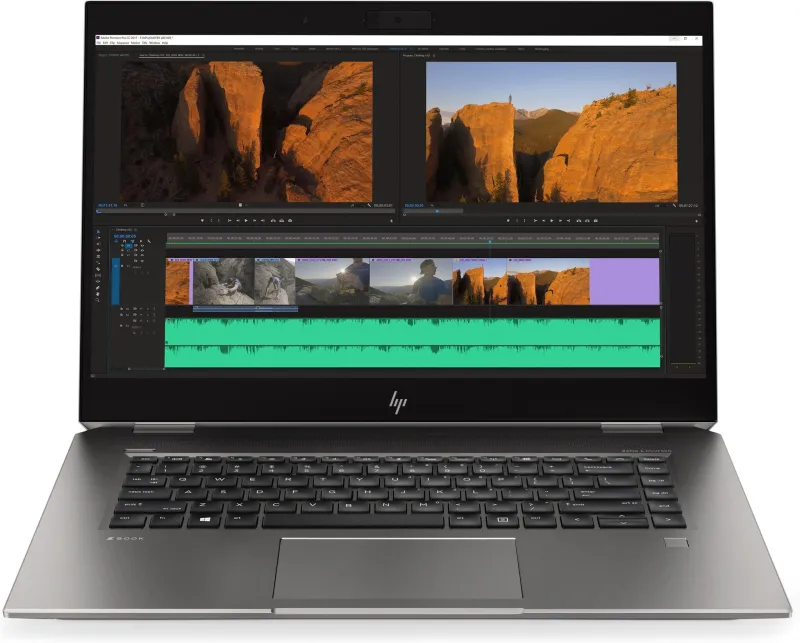

HP ZBook Studio G5 Intel® Core™ i7 i7-8850H Mobile workstation 39.6 cm (15.6″) Touchscreen Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA Quadro T2000 Wi-Fi 5 (802.11ac) Windows 10 Pro Silver
- Business Mobile workstation Clamshell Silver
- Intel® Core™ i7 i7-8850H 2.6 GHz
- Touchscreen 39.6 cm (15.6″) Full HD 1920 x 1080 pixels IPS LED backlight 16:9
- 16 GB DDR4-SDRAM 2666 MHz 1 x 16 GB
- 512 GB SSD
- NVIDIA Quadro T2000 4 GB Intel® UHD Graphics 630
- Wi-Fi 5 (802.11ac) Bluetooth
- Lithium Polymer (LiPo) 95.6 Wh 150 W
- Windows 10 Pro 64-bit
| Design |
| Country of origin |
China |
| Market positioning |
Business |
| Form factor |
Clamshell |
| Product colour |
Silver |
| Product type |
Mobile workstation |
| Display |
| Native aspect ratio |
16:9 |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6″) |
| Processor |
| ECC supported by processor |
No |
| Maximum number of PCI Express lanes |
16 |
| PCI Express slots version |
3.0 |
| PCI Express configurations |
1×16, 1×8+2×4, 2×8 |
| Tjunction |
100 °C |
| Configurable TDP-down |
35 W |
| Configurable TDP-down frequency |
2.1 GHz |
| Thermal Design Power (TDP) |
45 W |
| Bus type |
DMI |
| Processor codename |
Coffee Lake |
| Processor operating modes |
64-bit |
| Processor lithography |
14 nm |
| Processor socket |
BGA 1440 |
| Processor cache type |
Smart Cache |
| Processor cache |
9 MB |
| System bus rate |
8 GT/s |
| Processor frequency |
2.6 GHz |
| Processor boost frequency |
4.3 GHz |
| Processor threads |
12 |
| Processor cores |
6 |
| Processor model |
i7-8850H |
| Processor generation |
8th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Memory slots |
1x SO-DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Memory clock speed |
2666 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Compatible memory cards |
SD, SDHC, SDXC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card ID |
0x3E9B |
| On-board graphics card OpenGL version |
4.5 |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card base frequency |
350 MHz |
| Maximum on-board graphics card memory |
64 GB |
| On-board graphics card dynamic frequency (max) |
1150 MHz |
| On-board graphics card model |
Intel® UHD Graphics 630 |
| On-board graphics card family |
Intel® UHD Graphics |
| Discrete graphics memory type |
GDDR5 |
| Discrete graphics card memory |
4 GB |
| Discrete graphics card model |
NVIDIA Quadro T2000 |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of built-in speakers |
2 |
| Audio system |
Bang & Olufsen |
| Camera |
| Infrared (IR) camera |
Yes |
| Front camera HD type |
HD |
| Front camera signal format |
720p |
| Front camera |
Yes |
| Network |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| Antenna type |
2×2 |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |

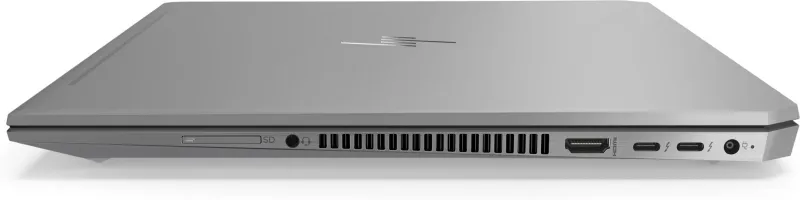

| Ports & interfaces |
| USB Sleep-and-Charge ports |
1 |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Performance |
| Motherboard chipset |
Intel® CM246 |
| Keyboard |
| Full-size keyboard |
Yes |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Pointing device |
Clickpad |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel Clear Video Technology |
Yes |
| Intel TSX-NI |
Yes |
| Intel 64 |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel® InTru™ 3D Technology |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel® Secure Key |
Yes |
| Intel® OS Guard |
Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Processor package size |
42 x 28 mm |
| Intel® My WiFi Technology (Intel® MWT) |
Yes |
| Intel TSX-NI version |
1.00 |
| Intel Identity Protection Technology version |
1.00 |
| Intel Stable Image Platform Program (SIPP) version |
1.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Processor ARK ID |
134899 |
| Embedded options available |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Idle States |
Yes |
| Brand-specific features |
| HP segment |
Business |
| HP speaker type |
HP Dual Speakers |
| Battery |
| Battery capacity |
95.6 Wh |
| Number of battery cells |
6 |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| AC adapter power |
150 W |
| Security |
| Trusted Platform Module (TPM) |
Yes |
| Cable lock slot |
Yes |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Height (rear) |
1.74 cm |
| Height (front) |
8.8 mm |
| Depth |
254 mm |
| Width |
360 mm |
| Weight |
2.22 kg |
| General |
| Product family |
ZBook |
| Product series |
Studio |
| Packaging content |
| AC adapter included |
Yes |
