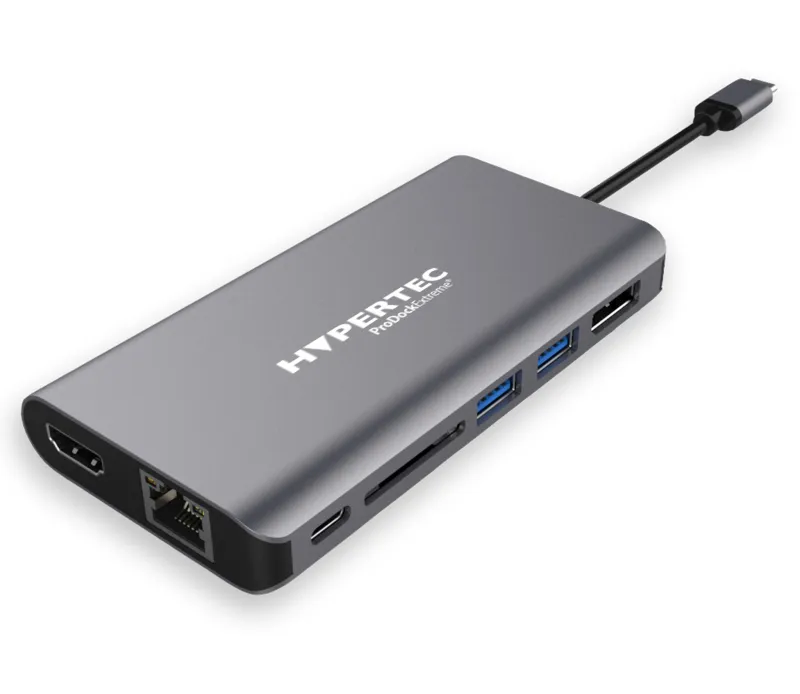

Hypertec ProDock Extreme – Universal USB-C to 4K HDMI, 4K DisplayPort Dual Screen

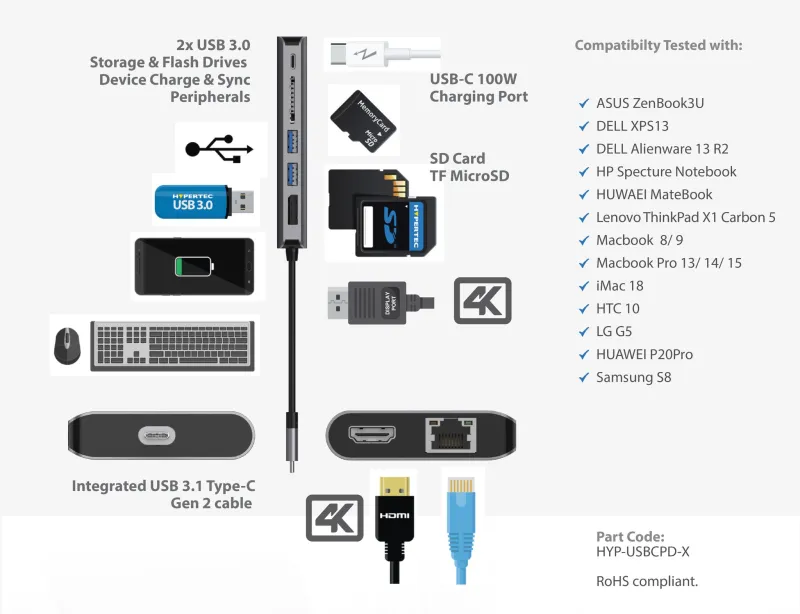

- 4K Enabled for HDMI® & DisplayPort™
- Dual Screen, Mirror and Extend (Windows Compatible Only) Dual Screen and Mirror (Mac Compatible)
- 2 x USB 3.0, 1 x SD Reader, 1 x USB-C
- Gigabit Ethernet
- 100W Power Delivery
- Integrated USB 3.1 Type-C Gen 2 cable
- Light-weight, Portable design
- Windows & MAC compatible
Experience seamless USB-C connectivity with the ProDockExtreme® Universal USB-C to HDMI & DisplayPort® Docking Station. This docking station offers a straightforward and efficient solution for charging, data transfer, and video display from USB-C devices. Users have the option to connect via a single 4K HDMI®, a single 4K DisplayPort®, or set up dual screens for mirroring or extending their display, all while delivering 100W of power through the USB-C port.
Enjoy hassle-free display, charging, and data transfer. The HDMI port supports video resolutions up to 4K/2K at 30Hz, along with audio support for HDCP 1.4 and 3D video formats at 1920x1080p at 60Hz. Meanwhile, the DisplayPort® supports video resolutions up to 4K/2K at 30Hz and allows both displays to function simultaneously.
Transfer data swiftly and effortlessly with the 10Gbps USB-C data port and the 5Gbps USB 3.0 ports. Both USB 3.0 ports can operate simultaneously and support fast charging at 5V 1.5A for external devices.
Designed to be portable and lightweight, the ProDockExtreme® is perfect for charging, data transfers, and video displays in virtually any work environment.
| Ports & interfaces | |
|---|---|
| USB connector type | USB Type-C |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| USB Power Delivery up to | 100 W |
| USB Power Delivery (USB PD) | Yes |
| USB 2.0 ports quantity | 2 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Wake-on-LAN ready | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Certification | CE,FCC,RoHS, REACH |
| Brand compatibility | Any brand |
| Country of origin | China |
| Charging function | Yes |
| Plug and Play | Yes |
| Housing material | Aluminium |
| Display modes | Single, Dual, Extended, Duplicate |
| Number of displays supported | 2 |
| Maximum refresh rate | 60 Hz |
| Maximum digital resolution | 3840 x 2160 pixels |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Product colour | Silver |
| Power | |
|---|---|
| Input current | 5 A |
| Power supply | 100 W |
| AC input voltage | 20 V |
| Power source type | USB |
| Software | |
|---|---|
| Mobile operating systems supported | Android, iOS |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 151 g |
| Height | 16 mm |
| Depth | 116.5 mm |
| Width | 60.8 mm |
| Packaging data | |
|---|---|
| Package dimensions (WxDxH) | 133 x 20 x 150 mm |
| Quantity per pack | 1 pc(s) |
| General | |
|---|---|
| Product family | ProDock |
| Technical details | |
|---|---|
| Warranty period | 1 year(s) |
| Other features | |
|---|---|
| USB ports quantity | 3 |
| USB port | Yes |
| Maximum operating temperature | 40 °C |
| USB data transfer rates | 5000 Mbit/s |
