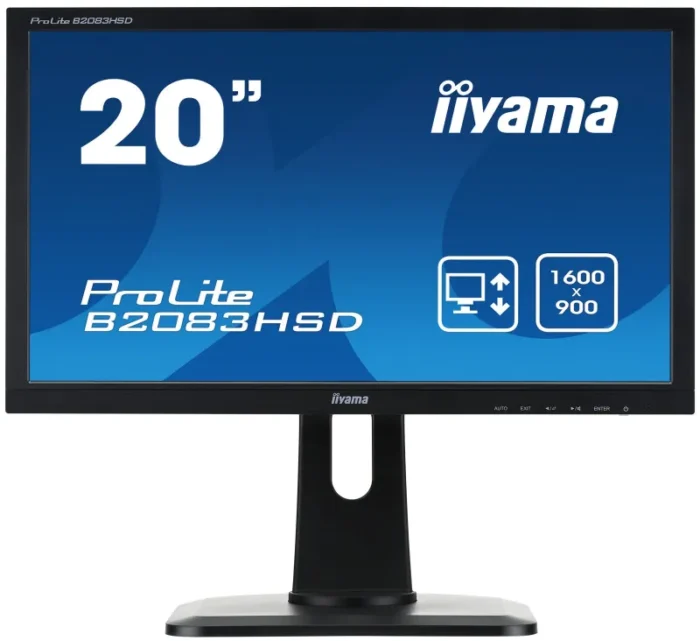

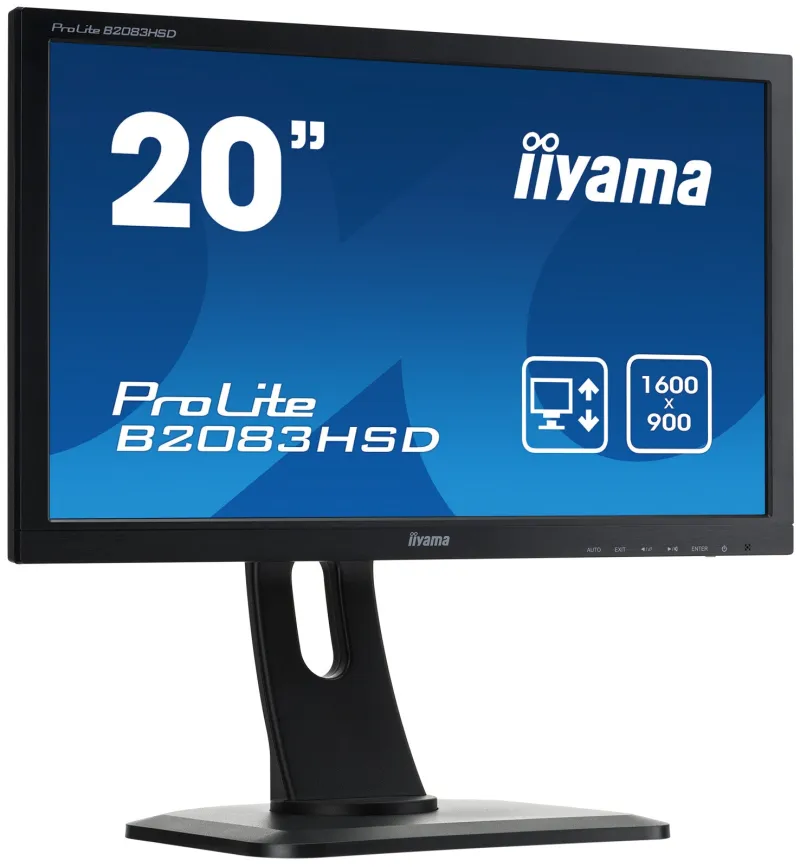

iiyama ProLite B2083HSD-B1 LED display 49.5 cm (19.5″) 1600 x 900 pixels HD+ Black
- 49.5 cm (19.5″) LED TN
- HD+ 1600 x 900 pixels 16:9
- 75 Hz 5 ms 250 cd/m² 1000:1
- F 15 kWh 15 W
The ProLite B2083HSD is a 19,5’’ 1600×900 LED-backlit monitor with a Height Adjustable Stand supporting Screen Rotation, ensuring perfect posture and optimal viewing comfort. It features 5msec black-to-black response time and 5 000 000 : 1 Advanced Contrast Ratio assuring very good picture quality. The monitor is TCO6 and Energy Star Certified. A perfect solution for education, local government, business and finance markets.
ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
LED-BACKLIT
A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.
VESA
VESA mount compliance means you can easily mount your monitor to a wall.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
HAS
A Height Adjustable Stand allows you to set the perfect position of the screen ensuring ergonomic posture and optimal viewing comfort which benefits not only your health but also productivity.

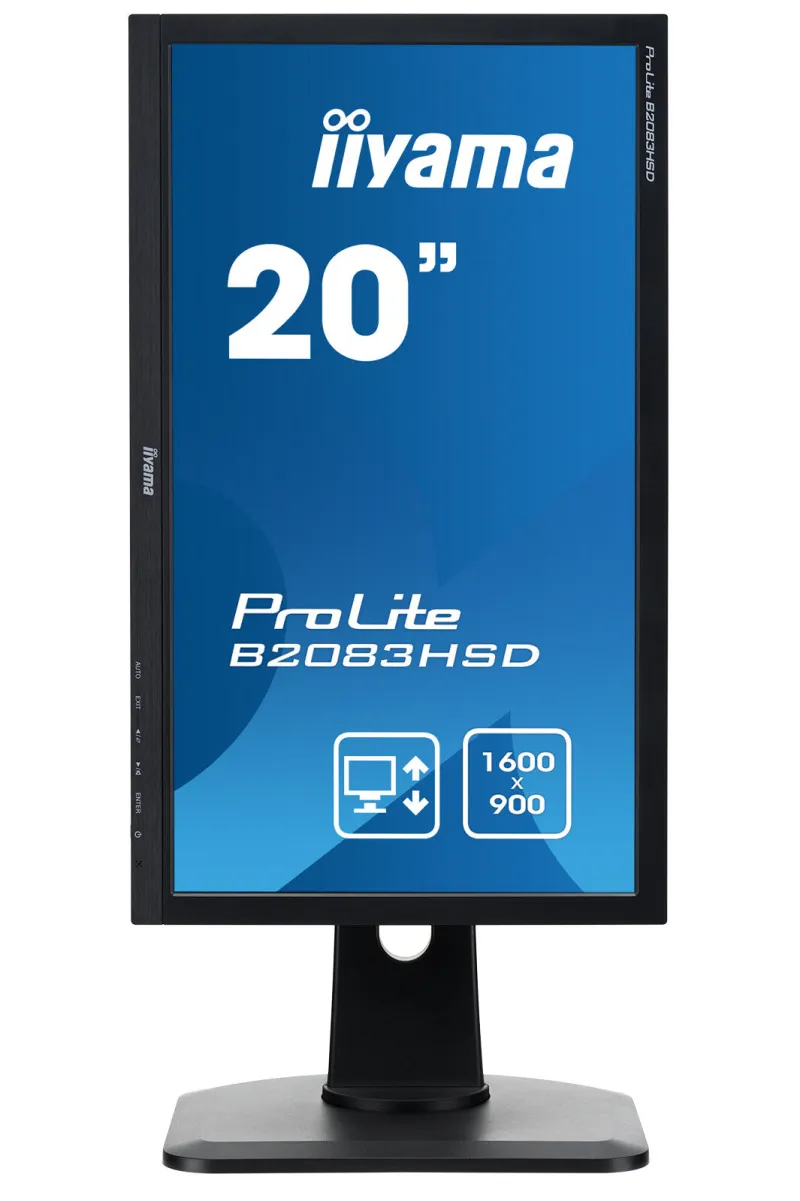

PIVOT
Screen rotation means you can change the position of the screen from landscape into portrait. This feature can be very handy while working with long spreadsheets or texts.
| Display | |
|---|---|
| Separate H/V sync | Yes |
| 3D | No |
| Digital vertical frequency | 55 – 75 Hz |
| Digital horizontal frequency | 30 – 80 kHz |
| Viewable size diagonal | 49.4 cm |
| Viewable size, vertical | 23.6 cm |
| Viewable size, horizontal | 43.4 cm |
| Vertical scan range | 55 – 75 Hz |
| Horizontal scan range | 30 – 80 kHz |
| Pixel pitch | 0.27 x 0.27 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 160° |
| Viewing angle, horizontal | 170° |
| Maximum refresh rate | 75 Hz |
| Contrast ratio (dynamic) | 12000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:9 |
| Supported graphics resolutions | 1600 x 900 |
| Screen shape | Flat |
| Display surface | Matt |
| Response time | 5 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | CCFL |
| Panel type | TN |
| HD type | HD+ |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1600 x 900 pixels |
| Display diagonal | 49.5 cm (19.5″) |
| Performance | |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 95, Windows 98, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Multimedia | |
|---|---|
| Built-in camera | No |
| RMS rated power | 2 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Market positioning | Business |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| HDCP | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| Audio input | Yes |
| DVI-D ports quantity | 1 |
| DVI port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Built-in USB hub | No |
| Network | |
|---|---|
| Ethernet LAN | No |
| Bluetooth | No |
| Wi-Fi | No |
| Ergonomics | |
|---|---|
| Plug and Play | Yes |
| Number of OSD languages | 10 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 – 22° |
| Tilt adjustment | Yes |
| Swivel angle range | -45 – 45° |
| Swivelling | Yes |
| Pivot angle | 0 – 90° |
| Pivot | Yes |
| Adjustable height (max) | 13 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 362571 |
| Energy efficiency scale | A to G |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 15 W |
| Energy consumption (SDR) per 1000 hours | 15 kWh |
| Energy efficiency class (SDR) | F |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 85% |
| Operating relative humidity (H-H) | 10 – 80% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 5 – 35 °C |
| Weight & dimensions | |
|---|---|
| Height (without stand) | 277.5 mm |
| Depth (without stand) | 59.5 mm |
| Width (without stand) | 469.5 mm |
| Weight (with stand) | 4.3 kg |
| Height (with stand) | 393.5 mm |
| Depth (with stand) | 230 mm |
| Width (with stand) | 469.5 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, Audio (3.5mm), DVI |
| Stand included | Yes |
| Sustainability | |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| Certification | TCO, CE, TUV-GS, VCCI-B, Gost-R |
| Quantity | 1 |
| Power cord included | Yes |
| TV tuner integrated | No |
| Built-in subwoofer | No |
| On/off switch | Yes |
| Display | LED |
| Thin Client | |
|---|---|
| Thin client installed | No |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
