iiyama SPC5801BC PC/workstation Intel® Core™ i5 i5-8400 8 GB DDR4-SDRAM 256 GB SSD Windows 10 IoT Enterprise Mini PC Black
- Mini PC Black
- Intel® Core™ i5 i5-8400 2.8 GHz
- 8 GB DDR4-SDRAM
- 256 GB SSD
- Intel® UHD Graphics 630
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 5 (802.11ac)
- Windows 10 IoT Enterprise
An Intel i5 slot PC with Windows 10 IoT Enterprise

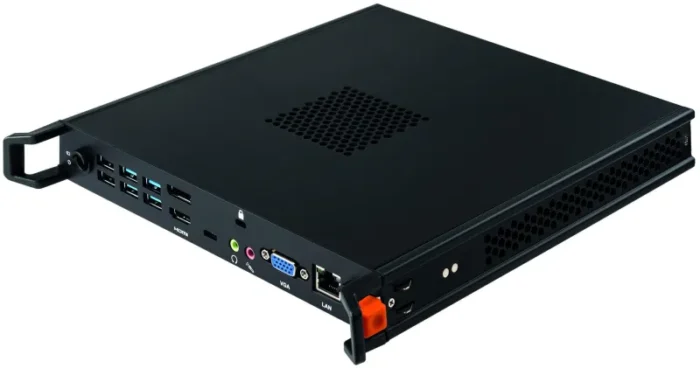

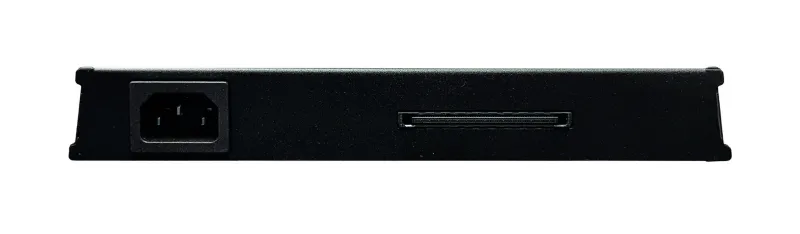

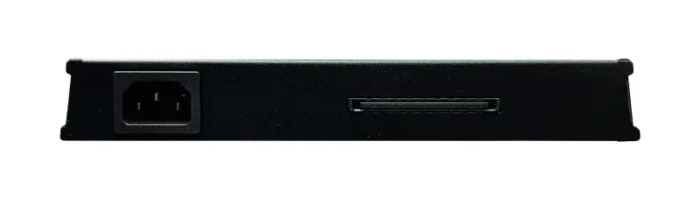

This mini PC with Intel Core i5 inside turns your iiyama interactive large format display into a stand-alone solution. It comes equipped with a powerful Intel processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. Simply slide in the iiyama slot PC and get started right away.
The module is only compatible with the iiyama TExx03MIS and TExx04MIS* Series; 55”: TE5503MIS-B1AG/ TE5503MIS-B2AG, 65”: TE6503MIS-B1AG / TE6504MIS-B1AG / TE6504MIS-B2AG , 75′: TE7503MIS-B1AG / TE7504MIS-B1AG / TE7504MIS-B2AG, 86”: TE8603MIS-B1AG / TE8604MIS-B1AG , 98”: TE9803MIS-B1AG.
*Excluding the 98′ ProLite TE9804MIS-B1AG
| Processor |
| Memory bandwidth supported by processor (max) |
41.6 GB/s |
| Memory clock speeds supported by processor |
2666 MHz |
| Memory types supported by processor |
DDR4-SDRAM |
| Maximum internal memory supported by processor |
64 GB |
| Number of processors installed |
1 |
| Maximum number of PCI Express lanes |
16 |
| PCI Express configurations |
1×16, 1×8+2×4, 2×8 |
| PCI Express slots version |
3.0 |
| Tjunction |
100 °C |
| Processor codename |
Coffee Lake |
| Thermal Design Power (TDP) |
65 W |
| Processor lithography |
14 nm |
| Processor operating modes |
64-bit |
| System bus rate |
8 GT/s |
| Bus type |
DMI3 |
| Processor cache type |
Smart Cache |
| Processor cache |
9 MB |
| Processor socket |
LGA 1151 (Socket H4) |
| Processor frequency |
2.8 GHz |
| Processor boost frequency |
4 GHz |
| Processor threads |
6 |
| Processor cores |
6 |
| Processor model |
i5-8400 |
| Processor generation |
8th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| Card reader integrated |
No |
| SSD form factor |
M.2 |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
256 GB |
| Graphics |
| Number of execution units |
23 |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card OpenGL version |
4.5 |
| On-board graphics card ID |
0x3E92 |
| On-board graphics card base frequency |
350 MHz |
| On-board graphics card dynamic frequency (max) |
1050 MHz |
| Maximum on-board graphics card memory |
64 GB |
| Number of displays supported (on-board graphics) |
3 |
| On-board graphics card model |
Intel® UHD Graphics 630 |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |

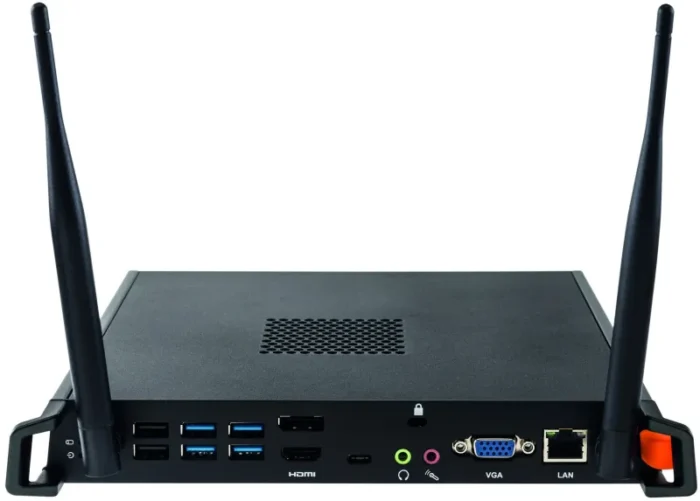

| Ports & interfaces |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| DVI port |
No |
| VGA (D-Sub) ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Design |
| Product colour |
Black |
| Chassis type |
Mini PC |
| Performance |
| Product type |
Mini PC |
| Software |
| Operating system installed |
Windows 10 IoT Enterprise |
| Processor special features |
| Conflict-Free processor |
Yes |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
No |
| Intel® Turbo Boost Technology |
2.0 |
| Intel Clear Video Technology |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel Identity Protection Technology version |
1.00 |
| Intel Stable Image Platform Program (SIPP) version |
0.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel TSX-NI version |
0.00 |
| Intel® InTru™ 3D Technology |
Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel 64 |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Embedded options available |
No |
| Intel® Secure Key |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® OS Guard |
Yes |
| Idle States |
Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) |
Yes |
| Intel Stable Image Platform Program (SIPP) |
No |
| Processor package size |
37.5 x 37.5 mm |
| Intel Trusted Execution Technology |
No |
| Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
| Execute Disable Bit |
Yes |
| Scalability |
1S |
| CPU configuration (max) |
1 |
| Thermal solution specification |
PCG 2015C |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Processor ARK ID |
126687 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel TSX-NI |
No |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Power |
| Power consumption (typical) |
95 W |
| Power consumption (standby) |
1.35 W |
| Power supply input frequency |
50 – 60 Hz |
| Power supply input voltage |
100-240 V |
| Operational conditions |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 45 °C |
| Weight & dimensions |
| Package height |
91 mm |
| Package depth |
353 mm |
| Package width |
312 mm |
| Weight |
1.9 kg |
| Height |
32.2 mm |
| Depth |
246.1 mm |
| Width |
263.4 mm |
| Packaging content |
| Display included |
No |
| Logistics data |
| Harmonized System (HS) code |
84715000 |
