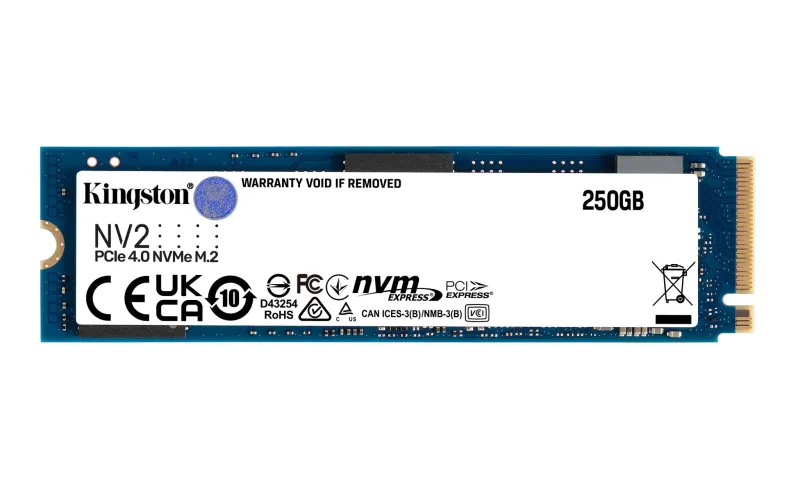

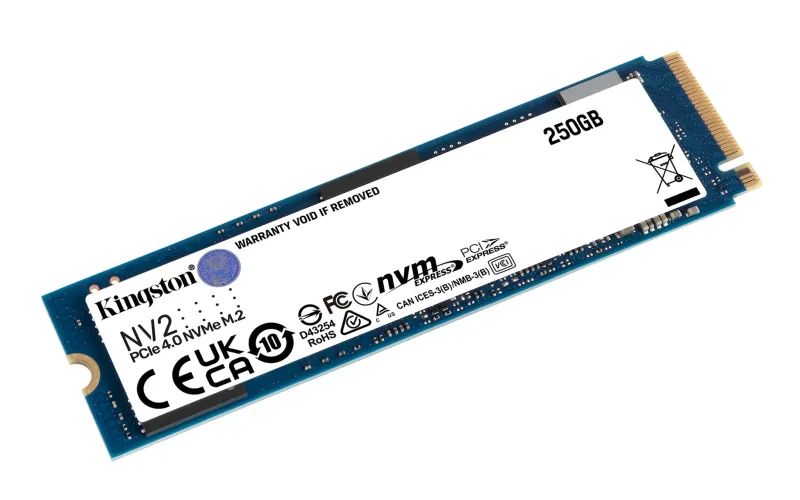

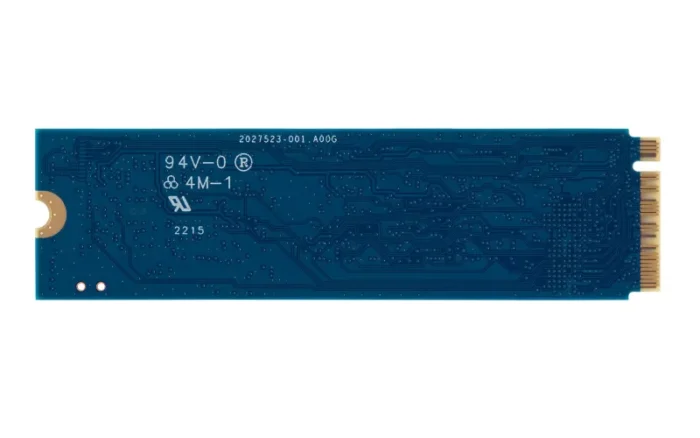

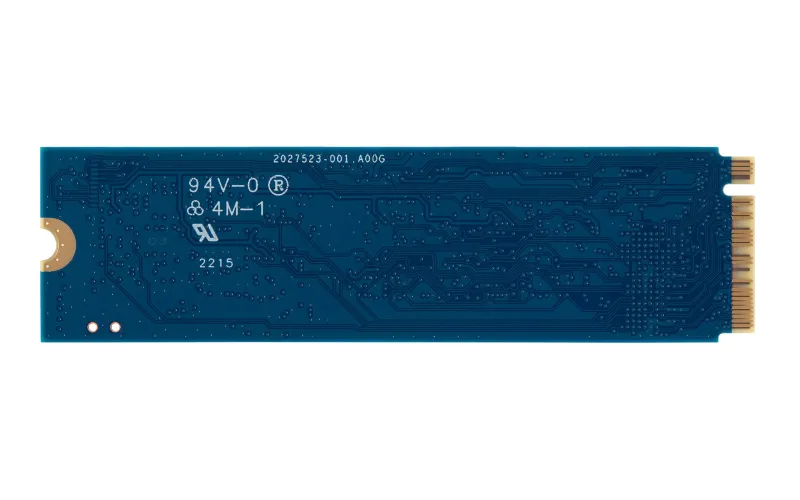

Kingston Technology 250G NV2 M.2 2280 PCIe 4.0 NVMe SSD
- Gen 4×4 NVMe PCIe Performance
- Ideal for Laptops & Small Form Factor PCs
- Capacities up to 4TB**
Kingston’s NV2 PCIe 4.0 NVMe SSD is a substantial next-gen storage solution powered by a Gen 4×4 NVMe controller. NV2 delivers read/write speeds up to 3,500/2,800MB/s* with lower power requirements and lower heat to help optimize your system’s performance and deliver value without sacrifice. The compact single-sided M.2 2280 (22x80mm) design expands storage up to 4TB** while saving space for other components, making NV2 ideal for thinner notebooks, small form factor (SFF) systems, and DIY motherboards. Available in capacities from 250GB – 4TB** to give you all the space you need for applications, documents, photos, videos, and more.
Gen 4×4 NVMe PCIe performance
Delivers read/ write speeds of up to 3,500/2,800MB/s* for an overall faster system.
Ideal for systems with limited space
Easily integrate into designs with M.2 connectors. Perfect for thin laptops and small-form-factor PCs.
Extended capacities
Available in a range of high capacities up to 4TB** to meet your data storage requirements.
| Features |
| TBW rating |
1280 |
| Mean time between failures (MTBF) |
2000000 h |
| PCI Express interface data lanes |
x4 |
| Write speed |
1300 MB/s |
| Read speed |
3000 MB/s |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Component for |
PC/Laptop |
| Memory type |
3D NAND |
| NVMe |
Yes |
| Interface |
PCI Express 4.0 |
| SSD form factor |
M.2 |
| SSD capacity |
250 GB |
| Weight & dimensions |
| Weight |
7 g |
| Height |
3.5 mm |
| Depth |
80 mm |
| Width |
22 mm |
| Packaging data |
| Package weight |
10 g |
| Package height |
184.2 mm |
| Package depth |
8.4 mm |
| Package width |
129.5 mm |
| Operational conditions |
| Non-operating vibration |
20 G |
| Operating vibration |
2.17 G |
| Storage temperature (T-T) |
0 – 70 °C |
| Operating temperature (T-T) |
-40 – 85 °C |
| Sustainability |
| Sustainability compliance |
Yes |
| Other features |
| Compliance certificates |
CE, RoHS |
| Logistics data |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case gross weight |
393.6 g |
| Master (outer) case height |
69.9 mm |
| Master (outer) case length |
203.2 mm |
| Master (outer) case width |
135.9 mm |
| Country of origin |
China, Taiwan |
- Substantial performance upgrade in high capacity
