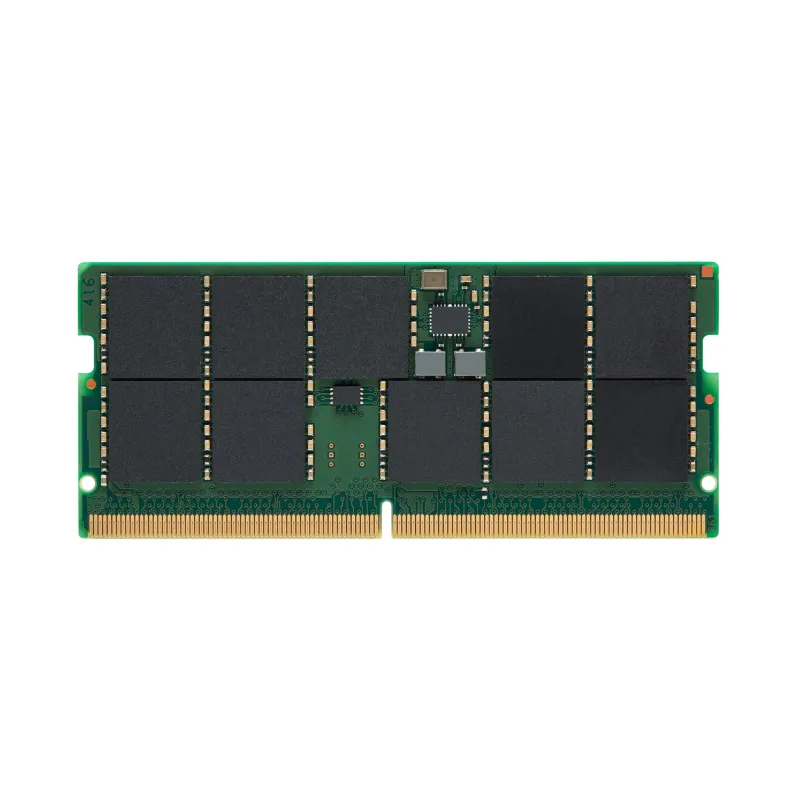

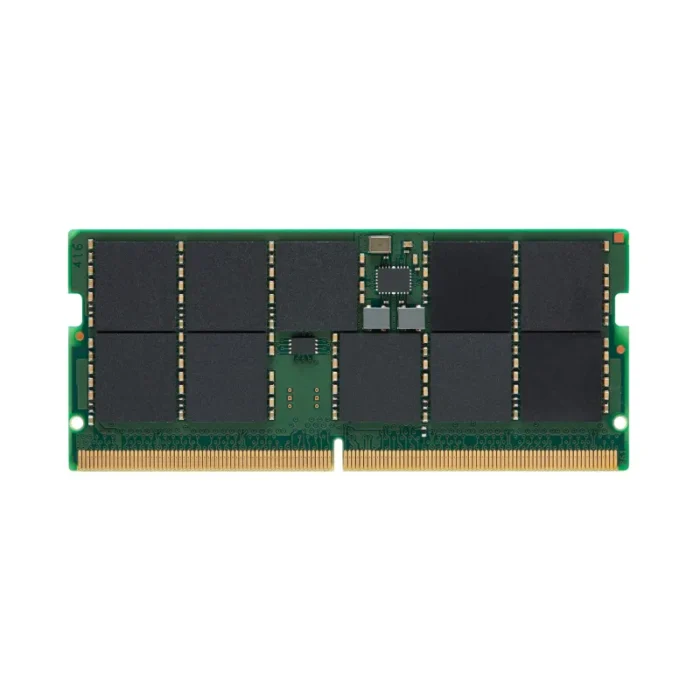

Kingston Technology KSM52T42BS8KM-16HA memory module 16 GB 1 x 16 GB DDR5 5200 MHz ECC
- Server 16 GB DDR5 5200 MHz
- 262-pin SO-DIMM 1 x 16 GB
- CAS latency: 42
- 1.1 V
- ECC
Kingston’s KSM52T42BS8KM-16HA is a 2G x 72-bit (16GB) DDR5-5200 CL42 SDRAM (Synchronous DRAM) w/ parity, 1Rx8, ECC, memory module, based on ten 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5200 timing of 42-42-42 at 1.1V. Each 262-pin SODIMM
uses gold contact fingers.
| Features |
| JEDEC standard |
Yes |
| Lead plating |
Gold |
| Product colour |
Black, Green |
| SPD profile |
Yes |
| Programming power voltage (VPP) |
1.8 V |
| Row Precharge Time (TRP) |
16 |
| Row active time |
32 ns |
| Refresh row cycle time |
295 ns |
| Row cycle time |
48 ns |
| Module configuration |
2048M x 72 |
| Memory voltage |
1.1 V |
| Memory ranking |
1 |
| CAS latency |
42 |
| On-Die ECC |
Yes |
| ECC |
Yes |
| Memory form factor |
262-pin SO-DIMM |
| Component for |
Server |
| Memory clock speed |
5200 MHz |
| Internal memory type |
DDR5 |
| Memory layout (modules x size) |
1 x 16 GB |
| Internal memory |
16 GB |
| Buffered memory type |
Unregistered (unbuffered) |
| Operational conditions |
| Storage temperature (T-T) |
-55 – 100 °C |
| Operating temperature (T-T) |
0 – 95 °C |
| Technical details |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability compliance |
Yes |
| Doesn’t contain |
Halogen |
| Weight & dimensions |
| Height |
31.2 mm |
| Depth |
3.7 mm |
| Width |
69.6 mm |
