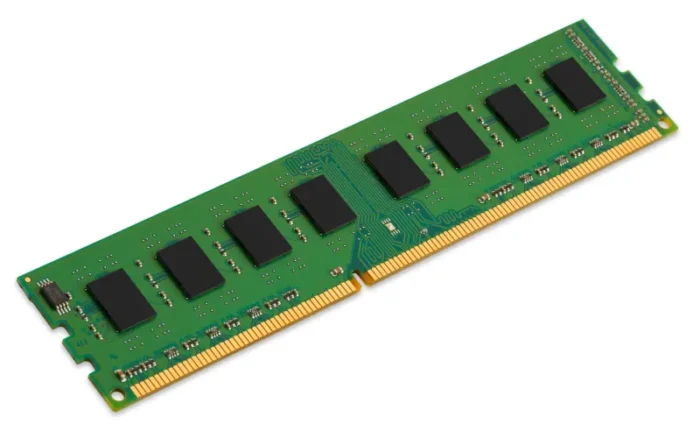

Kingston Technology ValueRAM 4GB DDR3 1600MHz Module memory module 1 x 4 GB DDR3L
- JEDEC standard 1.35V and 1.5V Power Supply
- VDDQ = 1.35V and 1.5V
- 800MHz fCK for 1600Mb/sec/pin
- 8 independent internal bank
- Programmable CAS Latency: 11, 10, 9, 8, 7, 6
- Programmable Additive Latency: 0, CL – 2, or CL – 1 clock
- 8-bit pre-fetch
- Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
- Bi-directional Differential Data Strobe
- Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
- On Die Termination using ODT pin
- Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
- Asynchronous Reset
- PCB Height: 0.740” (18.75mm) or 1.180” (30.00mm)
Kingston Technology is the world’s independent memory leader and is well-known for providing high quality memory products at an attractive price. Kingston ValueRAM is your best source for industry-standard memory to maximise the performance and productivity of your system. Built with A-grade components only, Kingston ValueRAM memory modules come with a lifetime warranty.
| Features | |
|---|---|
| Lead plating | Gold |
| Backlight | No |
| Cooling type | Heatsink |
| Product colour | Green |
| Country of origin | Taiwan |
| Memory type | PC3-12800 |
| Module configuration | 512M x 64 |
| Memory voltage | 1.35 V |
| Memory channels | Single-channel |
| Memory bus | 64 bit |
| CAS latency | 11 |
| ECC | No |
| Memory form factor | 240-pin DIMM |
| Component for | PC/Server |
| Memory clock speed | 1600 MHz |
| Internal memory type | DDR3L |
| Memory layout (modules x size) | 1 x 4 GB |
| Internal memory | 4 GB |
| Buffered memory type | Unregistered (unbuffered) |
| General | |
|---|---|
| Product family | ValueRAM |
| Weight & dimensions | |
|---|---|
| Width | 133.3 mm |
| Packaging data | |
|---|---|
| Package type | DIMM |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Other features | |
|---|---|
| Number of pins | 240 |
| Bus clock rate | 1600 MHz |
| Error indication | No |
| Memory layout | 1 x 4096 MB |
| Internal memory | 4096 MB |
| Chips organisation | X8 |
