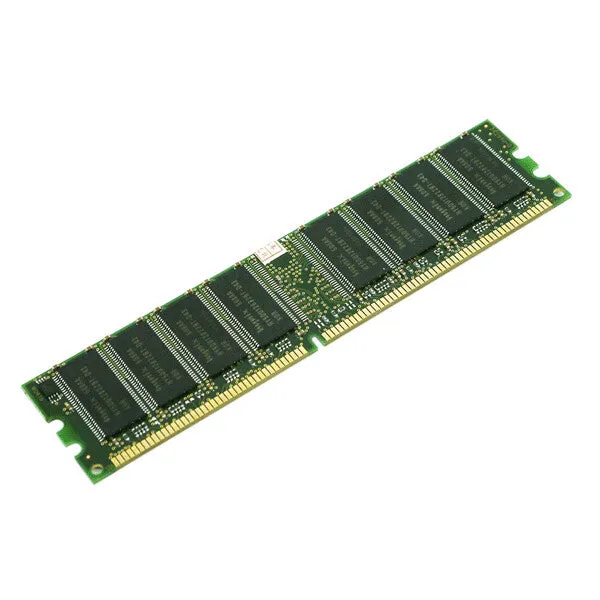

Kingston Technology ValueRAM KVR26N19S6/4 memory module 4 GB 1 x 4 GB DDR4 2666 MHz
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 8 internal banks; 2 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
ValueRAM’s KVR26N19S6/4 is a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
| Features |
| Compatible products |
370 ROG STRIX H370-F GAMINGD840MA Desktop SeriesD840MB Desktop SeriesD840SA Desktop SeriesPRIME B350 – PLUS PRIME B350-PLUSPRIME B350M – A PRIME B350M-APRIME B350M-A/CSMPRIME B360-PLUS/CSMPRIME B360M-APRIME B360M-C/CSMPRIME B360M-KPRIME B450-PLUSPRIME B450M-APRIME B450M-A/CSMPRIME H310-PLUSPRIME H310I-PLUS/CSMPRIME H310M-APRIME H310M-A/CSMPRIME H310M-C/CSMPRIME H310M-DPRIME H310M-EPRIME H310M-KPRIME H370-A/CSMPRIME H370-PLUSPRIME H370-PLUS/CSMPRIME H370M-PLUSPRIME H370M-PLUS/CSMPRIME X370-APRIME X470-PROROG CROSSHAIR VI EXTREMEROG CROSSHAIR VI HERO ROG CROSSHAIR VII HEROROG CROSSHAIR VII HERO (WI-FI AC)ROG CROSSHAIR VII HERO (WI-FI)ROG MAXIMUS X CODE ROG MAXIMUS X FORMULA ROG MAXIMUS X HERO (WI-FI AC) ROG MAXIMUS X HERO ROG STRIX B360-F GAMING ROG STRIX B360-G GAMING ROG STRIX B360-H GAMING ROG STRIX B360-H GAMING/OPTANE ROG STRIX B360-I GAMINGROG STRIX B450-F GAMINGROG STRIX GL12CMROG STRIX GL12CPROG STRIX H370-I GAMINGROG STRIX X470-F GAMINGROG STRIX X470-I GAMINGTUF B350M-PLUS GAMINGTUF B360-PLUS GAMING TUF B360-PRO GAMING (WI-FI) TUF B360M-PLUS GAMING TUF B450M-PLUS GAMINGTUF H310-PLUS GAMINGTUF H310M-PLUS GAMINGTUF H370-PRO GAMING (WI-FI) TUF X470-PLUS GAMINGX370 PRIME X370-AX370 PRIME X370-PROX370 STRIX X370-F GAMINGZ370 PRIME Z370-AZ370 PRIME Z370-PZ370 ROG MAXIMUS X APEXZ370 ROG STRIX Z370-E GAMINGZ370 ROG STRIX Z370-F GAMINGZ370 ROG STRIX Z370-G GAMINGZ370 ROG STRIX Z370-G GAMING (WI-FI AC)Z370 ROG STRIX Z370-H GAMINGZ370 ROG STRIX Z370-I GAMINGZ370 TUF Z370-PLUS GAMINGZ370 TUF Z370-PRO GAMINGB360 AORUS GAMING 3 B360 AORUS GAMING 3 WIFI B360 HD3 B360 HD3P B360M AORUS GAMING 3 B360M D3H B360M D3P B360M DS3H B360M HD3 H370 AORUS GAMING 3 H370 AORUS GAMING 3 WIFI H370 HD3 H370M D3H GSM H370M D3H H370M DS3H H370N WIFI Z370 AORUS Gaming 3 Z370 AORUS Gaming 5 Z370 AORUS Gaming 7 Z370 AORUS Gaming 7-OP Z370 AORUS Gaming K3 Z370 AORUS GAMING WIFI Z370 AORUS Ultra Gaming 2.0 Z370 AORUS Ultra Gaming 2.0-OP Z370 AORUS Ultra Gaming Z370 AORUS Ultra Gaming WIFI Z370 AORUS Ultra Gaming WIFI-OP Z370M D3H Z370M DS3H Z370P D3 Z370XP SLI XPC SH370R6 |
| JEDEC standard |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Lead plating |
Gold |
| Backlight |
No |
| Cooling type |
Heatsink |
| Product colour |
Berry, Green |
| Country of origin |
Taiwan |
| Programming power voltage (VPP) |
1.2 V |
| Row active time |
32 ns |
| Refresh row cycle time |
350 ns |
| Row cycle time |
45.75 ns |
| Module configuration |
512M x 64 |
| Memory voltage |
1.2 V |
| Memory ranking |
1 |
| Memory channels |
Single-channel |
| CAS latency |
19 |
| ECC |
No |
| Memory form factor |
288-pin DIMM |
| Component for |
PC/Server |
| Memory clock speed |
2666 MHz |
| Internal memory type |
DDR4 |
| Memory layout (modules x size) |
1 x 4 GB |
| Internal memory |
4 GB |
| Buffered memory type |
Unregistered (unbuffered) |
| Operational conditions |
| Storage temperature (T-T) |
-55 – 100 °C |
| Operating temperature (T-T) |
0 – 85 °C |
| General |
| Product family |
ValueRAM |
| Technical details |
| Compliance certificates |
RoHS |
| Sustainability |
| Doesn’t contain |
Halogen |
| Weight & dimensions |
| Height |
31.2 mm |
| Width |
133.3 mm |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
