Lenovo 4XC1Q24435 network card Internal WWAN
- A 5G NR/LTE-FDD/LTE-TDD/UMTS/HSPA+ wireless communication module with receive
- diversity
- Supports embedded operating systems such as Windows, Linux and Android
- Provides GNSS function and optional eSIM function
- PCI Express M.2 Interface

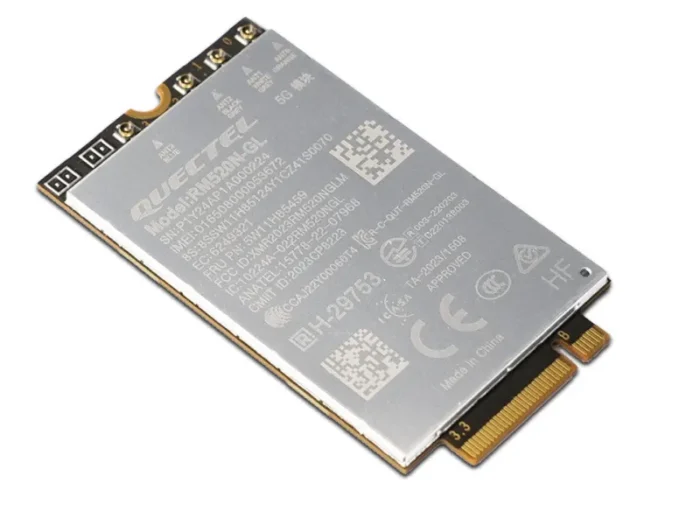

ThinkPad Quectel RM520N-GL 5G M.2 WWAN Module for X1 2-in-1 Gen 9/T16 Gen 3 is a 5G NR/LTE-FDD/LTE-TDD/UMTS/HSPA+ wireless communication module with receive diversity. It provides data connectivity on 5G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks. RM520N-GL is a standard M.2 Key-B WWAN module.
| Ports & interfaces | |
|---|---|
| Interface | WWAN |
| Host interface | M.2 |
| Connectivity technology | Wireless |
| Network | |
|---|---|
| Mobile network generation | 5G |
| Design | |
|---|---|
| Compatible products | X1 2-in-1 Gen 9/T16 Gen 3 |
| Certification | ISO/ IEC 7816-3, and MIPI |
| Antenna design | Internal |
| Component for | Laptop |
| Internal | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | -30 – 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 8.7 g |
| Height | 2.3 mm |
| Depth | 30 mm |
| Width | 52 mm |
| Packaging data | |
|---|---|
| Package weight | 30 g |
| Package height | 177 mm |
| Package depth | 144 mm |
| Package width | 53 mm |
