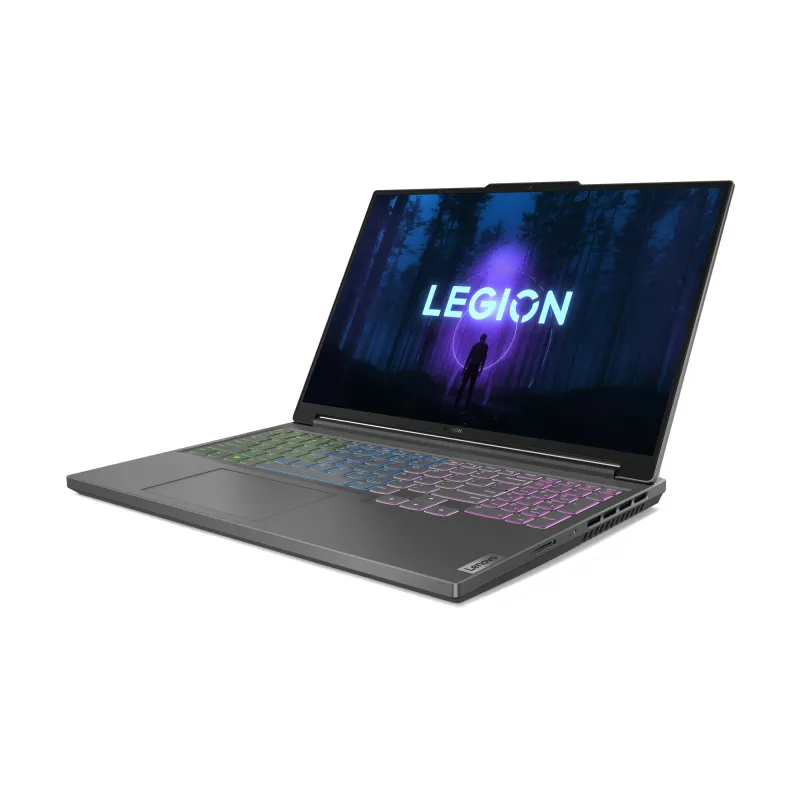

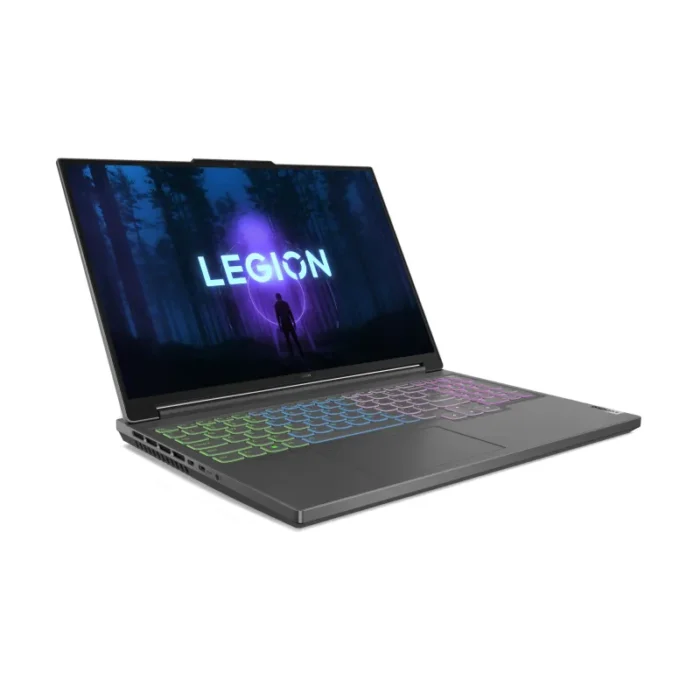

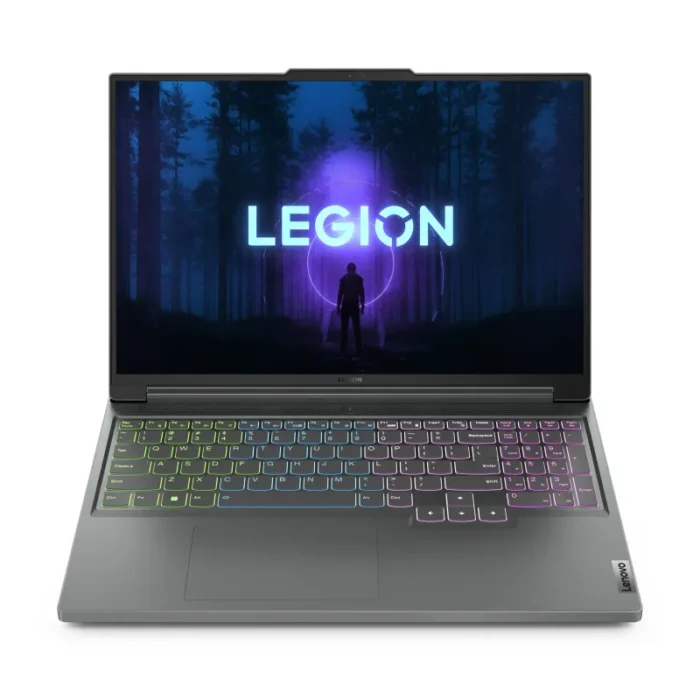

Lenovo Legion Slim 5 16IRH8 Intel® Core™ i7 i7-13700H Laptop 40.6 cm (16″) WQXGA 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4070 Wi-Fi 6E (802.11ax) Windows 11 Home UK English Grey
- Intel Core i7-13700H, 14C (6P + 8E)/20T, P-core 2.4/5.0GHz, E-core 1.8/3.7GHz, 24MB
- 16″ WQXGA (2560×1600) IPS 300nits 100% sRGB 165Hz G-SYNC Low Blue Light
- 2x 8GB SO-DIMM DDR5-5200
- 1TB SSD M.2 2280 PCIe 4.0×4 NVMe
- NVIDIA GeForce RTX 4070 8GB , Boost Clock 2175MHz, TGP 140W
- Windows 11 Home
The world’s most portable 16″ AI-tuned gaming laptops
– Built to handle extreme demands of work, study, gaming, & play
– Ultra-high FPS gaming with NVIDIA® GeForce RTX™ 40 series graphics
– Legion Colfront 5.0 keeps your PC cool & quiet
– Picture perfect colour on 16″ PureSight display
– Portable design for on-the-go use
*Disclaimer: Based on the combination of the following features not found in comparable PCs: 16″ panel size, as thin as 20 mm, weighing less than 2.3kgs, with battery capacity at least 80WHr and supported by a dedicated AI chip/engine. Research conducted internally as of January 30, 2023, comparing gaming computers distributed by global PC manufacturers shipping > 1 million units worldwide annually.
| Design |
| Housing material |
Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS), Aluminium |
| Form factor |
Clamshell |
| Colour name |
Storm Grey |
| Product colour |
Grey |
| Product type |
Laptop |
| Display |
| High Dynamic Range (HDR) technology |
Dolby Vision |
| Contrast ratio (typical) |
1200:1 |
| Maximum refresh rate |
165 Hz |
| RGB colour space |
sRGB |
| Colour gamut |
100% |
| Display brightness |
300 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:10 |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
WQXGA |
| Touchscreen |
No |
| Display resolution |
2560 x 1600 pixels |
| Display diagonal |
40.6 cm (16″) |
| Processor |
| Processor base power |
45 W |
| Maximum turbo power |
115 W |
| Configurable TDP-down |
35 W |
| Processor cache type |
Smart Cache |
| Processor cache |
24 MB |
| Efficient-core Max Turbo Frequency |
3.7 GHz |
| Performance-core Max Turbo Frequency |
5 GHz |
| Efficient cores |
8 |
| Performance cores |
6 |
| Processor boost frequency |
5 GHz |
| Processor threads |
20 |
| Processor cores |
14 |
| Processor model |
i7-13700H |
| Processor generation |
13th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Memory channels |
Dual-channel |
| Maximum internal memory |
32 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Memory clock speed |
5200 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Compatible memory cards |
SD, SDHC, SDXC, MMC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
| NVIDIA G-SYNC |
Yes |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board graphics card family |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA GeForce RTX 4070 |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio system |
Nahimic Audio |
| Audio chip |
Realtek ALC3287 |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Front camera resolution |
1920 x 1080 pixels |
| Front camera HD type |
Full HD |
| Front camera |
Yes |
| Network |
| WWAN |
Not installed |
| Bluetooth version |
5.1 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2×2 |
| Wi-Fi standards |
802.11a, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge ports |
1 |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| Performance |
| Motherboard chipset |
Intel SoC |
| Keyboard |
| Keyboard backlit zone |
4-zone RGB |
| Keyboard backlit colour |
RGB |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Pointing device |
Touchpad |
| Software |
| Bundled software |
Office Trial |
| Trial software |
Office |
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Home |
| Processor special features |
| CPU configuration (max) |
1 |
| Battery |
| Fast charging time (50%) |
30 min |
| Fast charging |
Yes |
| Continuous video playback time |
8.9 h |
| Battery life (max) |
7.6 h |
| Battery capacity |
80 Wh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
230 W |
| Security |
| Password protection type |
Power on, SSD, Supervisor |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
No |
| Operational conditions |
| Maximum shipping altitude |
3048 m |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
8 – 95% |
| Storage temperature (T-T) |
5 – 43 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Certificates |
| Certification |
TÜV Rheinland |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ErP |
| Weight & dimensions |
| Height (rear) |
2.52 cm |
| Height (front) |
1.99 cm |
| Depth |
260.3 mm |
| Width |
359.7 mm |
| Weight |
2.4 kg |
| General |
| Product family |
Legion |
| Product series |
Slim 5 |
| Packaging content |
| AC adapter included |
Yes |
