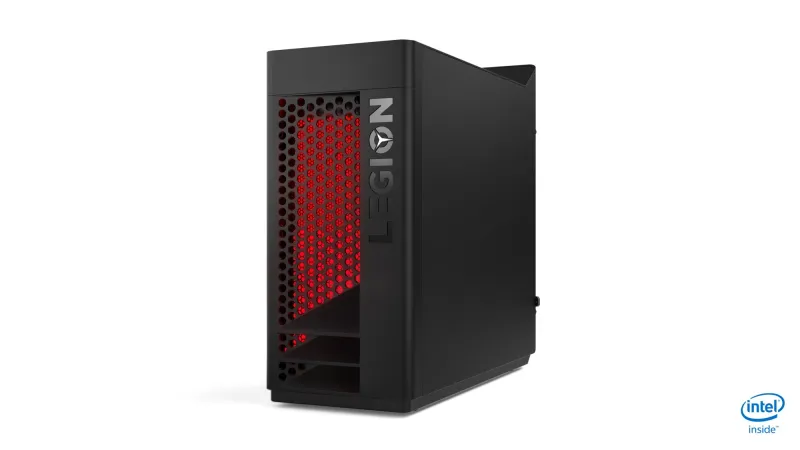

Lenovo Legion T530t Intel® Core™ i5 i5-9400F 8 GB DDR4-SDRAM 1.26 TB HDD+SSD NVIDIA GeForce GTX 1660 Windows 10 Home Tower PC Black
- Intel Core i5-9400F (6C/6T, 2.9/4.1GHz, 9MB)
- 1x 8GB UDIMM DDR4-2666
- 256GB SSD M.2 2280 PCIe + 1TB HDD 7200rpm 3.5″
- NVIDIA GeForce GTX 1660 6GB GDDR5
- Windows 10 Home 64
The gaming tower, refined
Ready to see tower gaming mastered? Meet the Legion T530 Tower, featuring a bold new look that houses the latest Intel® gaming processors, discrete graphics, DDR4 memory, PCIe SSD storage, and dual-channel cooling—all with external red system lighting.
| Processor |
| Memory bandwidth supported by processor (max) |
41.6 GB/s |
| Memory clock speeds supported by processor |
2666 MHz |
| Memory types supported by processor |
DDR4-SDRAM |
| Maximum internal memory supported by processor |
128 GB |
| Number of processors installed |
1 |
| Maximum number of PCI Express lanes |
16 |
| PCI Express configurations |
1×8+2×4, 1×16, 2×8 |
| PCI Express slots version |
3.0 |
| Tjunction |
100 °C |
| Processor codename |
Coffee Lake |
| Thermal Design Power (TDP) |
65 W |
| Processor lithography |
14 nm |
| Processor operating modes |
64-bit |
| System bus rate |
8 GT/s |
| Bus type |
DMI3 |
| Processor cache type |
Smart Cache |
| Processor cache |
9 MB |
| Processor socket |
LGA 1151 (Socket H4) |
| Processor frequency |
2.9 GHz |
| Processor boost frequency |
4.1 GHz |
| Processor threads |
6 |
| Processor cores |
6 |
| Processor model |
i5-9400F |
| Processor generation |
9th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| Memory channels |
Dual-channel |
| Memory clock speed |
2666 MHz |
| Memory slots |
2x DIMM |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
32 GB |
| Internal memory |
8 GB |
| Storage |
| Card reader integrated |
No |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Number of HDDs installed |
1 |
| Total HDDs capacity |
1 TB |
| Number of storage drives installed |
2 |
| Storage media |
HDD+SSD |
| Optical drive type |
No |
| Total storage capacity |
1.26 TB |
| Graphics |
| On-board graphics card model |
Not available |
| Number of discrete graphics cards |
1 |
| Discrete graphics card memory |
6 GB |
| Discrete graphics card model |
NVIDIA GeForce GTX 1660 |
| Discrete graphics card |
Yes |
| Network |
| Bluetooth version |
4.1 |
| Bluetooth |
Yes |
| Antenna type |
1×1 |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Design |
| Housing material |
Metal |
| Product colour |
Black |
| Placement supported |
Vertical |
| Volume |
28 L |
| Chassis type |
Tower |
| Performance |
| Password protection type |
Power on, Supervisor |
| Password protection |
Yes |
| Audio system |
High Definition Audio |
| Audio chip |
Realtek ALC233 |
| Motherboard chipset |
Intel® B360 |
| Market positioning |
Gaming |
| Product type |
PC |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Home |
| Processor special features |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
No |
| Intel® Turbo Boost Technology |
2.0 |
| Intel Enhanced Halt State |
Yes |
| Intel Identity Protection Technology version |
1.00 |
| Intel Stable Image Platform Program (SIPP) version |
0.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel TSX-NI version |
0.00 |
| Intel 64 |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Embedded options available |
No |
| Intel® Secure Key |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® OS Guard |
Yes |
| Idle States |
Yes |
| Intel Stable Image Platform Program (SIPP) |
No |
| Processor package size |
37.5 x 37.5 mm |
| Intel Trusted Execution Technology |
No |
| Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
| Execute Disable Bit |
Yes |
| Scalability |
1S |
| CPU configuration (max) |
1 |
| Thermal solution specification |
PCG 2015C |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Processor ARK ID |
190883 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel TSX-NI |
No |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Certificates |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
12 kg |
| Height |
440 mm |
| Depth |
456 mm |
| Width |
184.5 mm |
| Packaging content |
| Keyboard included |
Yes |
| Mouse included |
Yes |
| General |
| Product family |
Legion |
