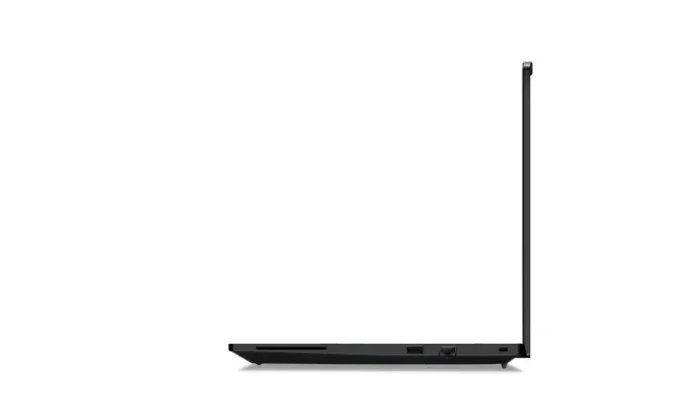

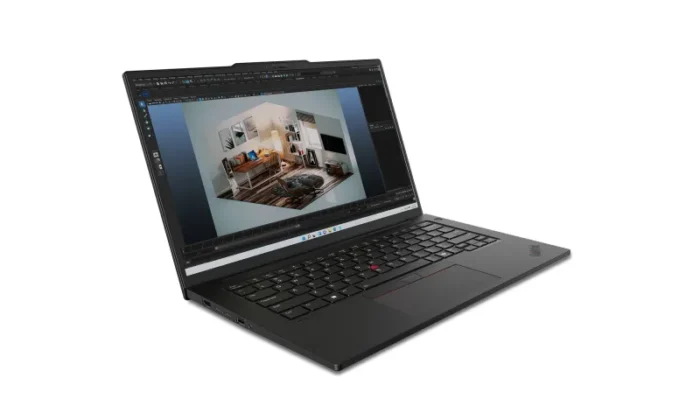

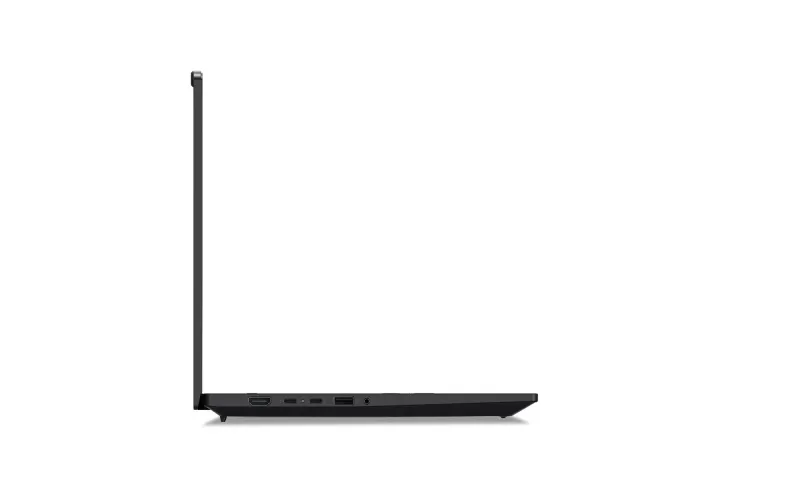

Lenovo ThinkPad P14s Gen 5 (Intel) Intel Core Ultra 7 155H Laptop 36.8 cm (14.5″) Touchscreen WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 500 Ada Wi-Fi 6E (802.11ax) Windows 11 Pro UK English Black
- Up to Intel® Core™ Ultra 9 185H
- Up to Windows® 11 Pro
- Up to NVIDIA® RTX 500 Ada Generation 4GB GDDR6
- Brand new 14.5″ display, up to 3K 430nits, 100% DCI-P3
- Standard support for TÜV Low Blue Light, Eyesafe® Certified 2.0
ThinkPad P14s Gen 5 Intel
This notebook combines advanced technology with unparalleled durability, setting the standard for high-performance computing. Equipped with up to Intel® H Series Core™ Ultra 9 Processor and optional NVIDIA® RTX 500 GPU, it allows creative professionals to bring their visions to life with unparalleled speed and precision. Whether rendering complex 3D models, editing highresolution videos, or designing immersive digital experiences, it delivers uncompromising performance to enhance the creative output. With support for up to 96GB DDR5 memory, users can tackle multiple tasks simultaneously without any
slowdown.
| Design |
| Housing material |
Aluminium |
| Form factor |
Clamshell |
| Colour name |
Black |
| Product colour |
Black |
| Product type |
Laptop |
| Display |
| Maximum refresh rate |
90 Hz |
| RGB colour space |
sRGB |
| Colour gamut |
100% |
| Low Blue Light technology |
Yes |
| Display brightness |
350 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:10 |
| Panel type |
IPS |
| HD type |
WQXGA |
| Touchscreen |
Yes |
| Display resolution |
2560 x 1600 pixels |
| Display diagonal |
36.8 cm (14.5″) |
| Processor |
| Processor base power |
28 W |
| Maximum turbo power |
115 W |
| Processor cache type |
Smart Cache |
| Processor cache |
24 MB |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Efficient-core base frequency |
0.9 GHz |
| Performance-core base frequency |
1.4 GHz |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core Max Turbo Frequency |
4.8 GHz |
| Low Power Efficient-cores |
2 |
| Efficient cores |
8 |
| Performance cores |
6 |
| Processor boost frequency |
4.8 GHz |
| Processor threads |
22 |
| Processor cores |
16 |
| Processor model |
155H |
| Processor generation |
Intel® Core™ Ultra (Series 1) |
| Processor family |
Intel Core Ultra 7 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
| AI software frameworks supported by NPU |
DirectML, ONNX RT, OpenVINO, Windows ML |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
| ECC |
No |
| Non-ECC |
Yes |
| Memory channels |
Dual-channel |
| Maximum internal memory |
96 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory clock speed |
5600 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
32 GB |
| Storage |
| Card reader integrated |
No |
| Optical drive type |
No |
| M.2 SSD size |
2280 (22 x 80 mm) |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
| On-board graphics card model |
Intel Arc Graphics |
| On-board graphics card family |
Intel Arc Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
4 GB |
| Discrete graphics card model |
NVIDIA RTX 500 Ada |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio system |
High Definition Audio |
| Audio chip |
Realtek ALC3287 |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Infrared (IR) camera |
Yes |
| Front camera resolution (numeric) |
5 MP |
| Front camera |
Yes |
| Network |
| WWAN |
Not installed |
| Near Field Communication (NFC) |
No |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB4 Gen 2×2 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Performance |
| Motherboard chipset |
Intel SoC |
| Keyboard |
| Spill-resistant keyboard |
Yes |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Pointing device |
ThinkPad UltraNav |
| Software |
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Battery |
| Battery capacity |
75 Wh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| USB Type-C charging port |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
135 W |
| Security |
| Password protection type |
BIOS, SSD, Supervisor, User |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Windows Hello |
Yes |
| Smart card reader |
Yes |
| Fingerprint reader |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
8 – 95% |
| Storage temperature (T-T) |
5 – 43 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Certificates |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ENERGY STAR, EPEAT Gold, TCO |
| Weight & dimensions |
| Height |
18.5 mm |
| Depth |
227.6 mm |
| Width |
325.5 mm |
| Weight |
1.61 kg |
| General |
| Product family |
ThinkPad |
| Product series |
P |
| Packaging content |
| AC adapter included |
Yes |
