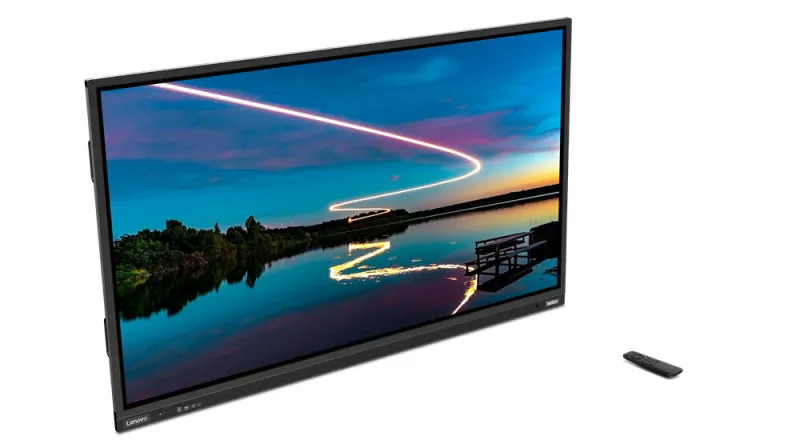

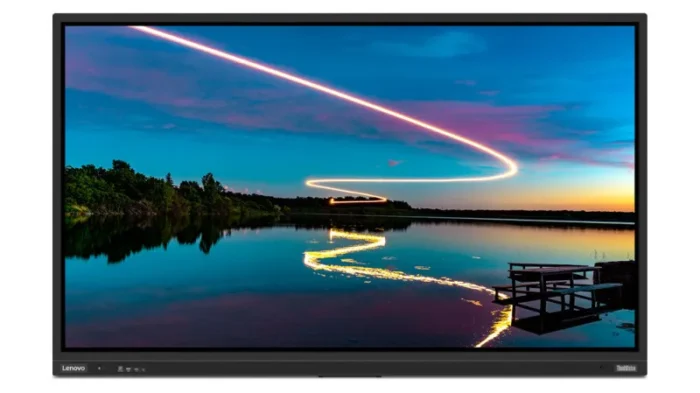

Lenovo ThinkVision T86 LED display 2.18 m (86″) 3840 x 2160 pixels 4K Ultra HD Touchscreen Black
- 218.4cm (86″) 4K Ultra HD 3840 x 2160 Direct LED VA
- 6.5ms, 16:9, 400cd/m², 4000:1
- USB, VGA, HDMI, DisplayPort, WLAN
Lenovo ThinkVision Interactive Large Format Display (iLFD) T86 puts you in control of every situation with an intelligent Android system environment that includes a powerful Launcher and smart tools to empower collaboration, making interaction effortless and intuitive. The Sidebars at the screen’s edge help save precious seconds by getting you instantly to the functions you need. Click the More Apps icon at the bottom of the screen to view the full menu of installed applications.
| Display | |
|---|---|
| NTSC coverage (typical) | 85% |
| sRGB coverage (typical) | 99% |
| Colour depth | 10 bit |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| High Dynamic Range (HDR) supported | Yes |
| Viewable size, vertical | 106.6 cm |
| Viewable size, horizontal | 189.5 cm |
| Pixel density | 51 ppi |
| Pixel pitch | 0.4935 x 0.4935 mm |
| Display number of colours | 1.07 billion colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 4000:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 6.5 ms |
| Display brightness (typical) | 400 cd/m² |
| Touch technology | Multi-touch |
| Touchscreen technology | Infrared |
| Backlight type | Direct LED |
| Panel type | VA |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 3840 x 2160 pixels |
| Display diagonal | 2.18 m (86″) |
| Multimedia | |
|---|---|
| Built-in microphone | Yes |
| Built-in camera | No |
| RMS rated power | 15 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Colour name | Raven black |
| Product colour | Black |
| Market positioning | Business |
| Ports & interfaces | |
|---|---|
| OPS module slot | Yes |
| PC Audio in | Yes |
| Microphone in | Yes |
| Audio output | Yes |
| Audio input | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 5 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Touch ports quantity | 2 |
| USB Touch port | Yes |
| USB Type-A downstream ports quantity | 5 |
| Number of USB Type-C upstream ports quantity | 2 |
| Number of USB Type-B upstream ports quantity | 1 |
| Number of upstream ports | 9 |
| USB upstream port type | USB Type-A, USB Type-B, USB Type-C |
| USB hub version | 2.0 / 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Network | |
|---|---|
| Remotely operated | Yes |
| Ethernet LAN | Yes |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ergonomics | |
|---|---|
| On Screen Display (OSD) | Yes |
| Height adjustment | No |
| Wall mountable | Yes |

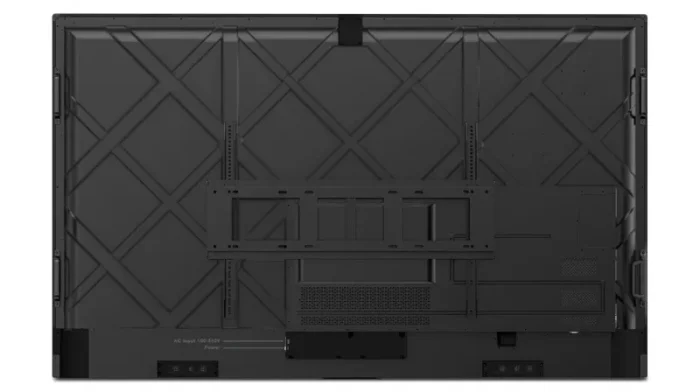

| Panel mounting interface | 800 x 600 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (max) | 410 W |
| Power consumption (typical) | 350 W |
| Energy consumption (SDR) per 1000 hours | 193 kWh |
| Energy efficiency class (SDR) | G |
| Weight & dimensions | |
|---|---|
| Bezel width (side) | 1.88 cm |
| Weight (without stand) | 68 kg |
| Height (without stand) | 1209.2 mm |
| Depth (without stand) | 92 mm |
| Width (without stand) | 1982 mm |
| Packaging data | |
|---|---|
| Package weight | 88 kg |
| Package height | 1353 mm |
| Package depth | 275 mm |
| Package width | 2119 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Stylus included | Yes |
| Remote control batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC, HDMI, USB Type-A to USB Type-B |
| General | |
|---|---|
| Product family | ThinkVision |
| Other features | |
|---|---|
| Certification | RoHSTÜV Rheinland Flicker FreeTÜV Rheinland Low Blue Light |
