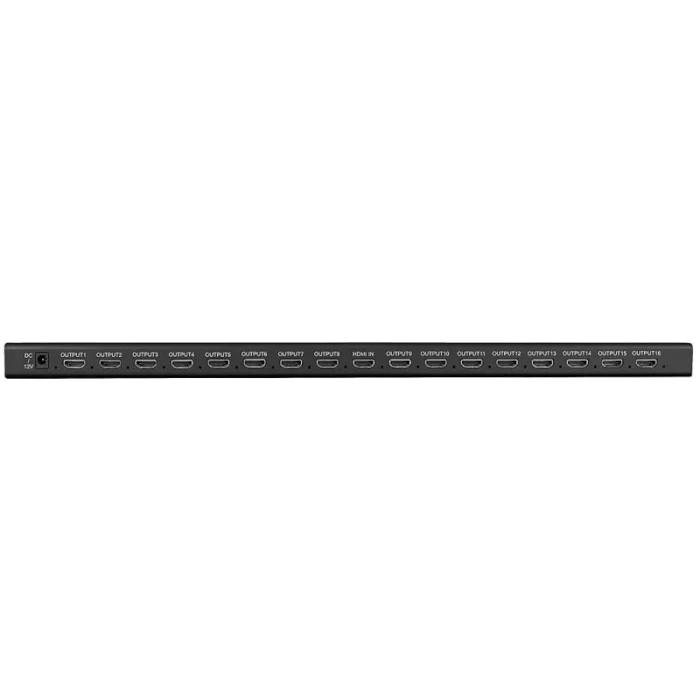

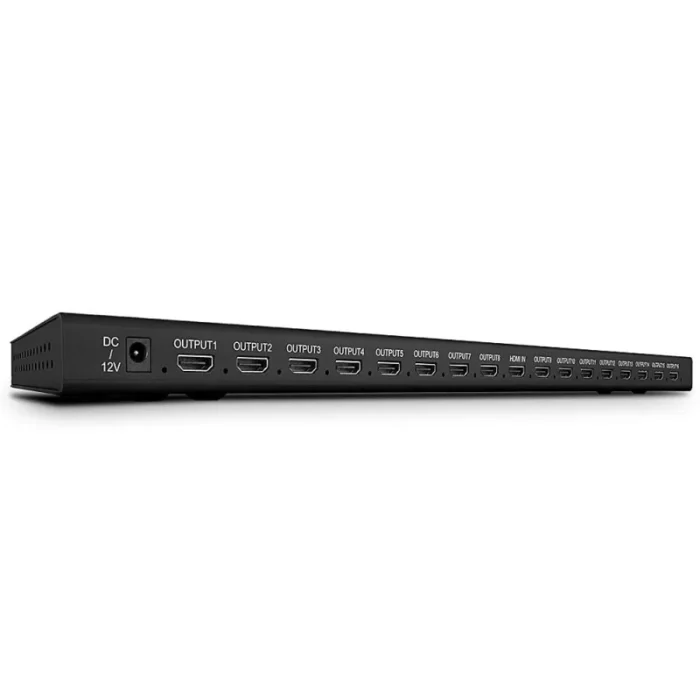

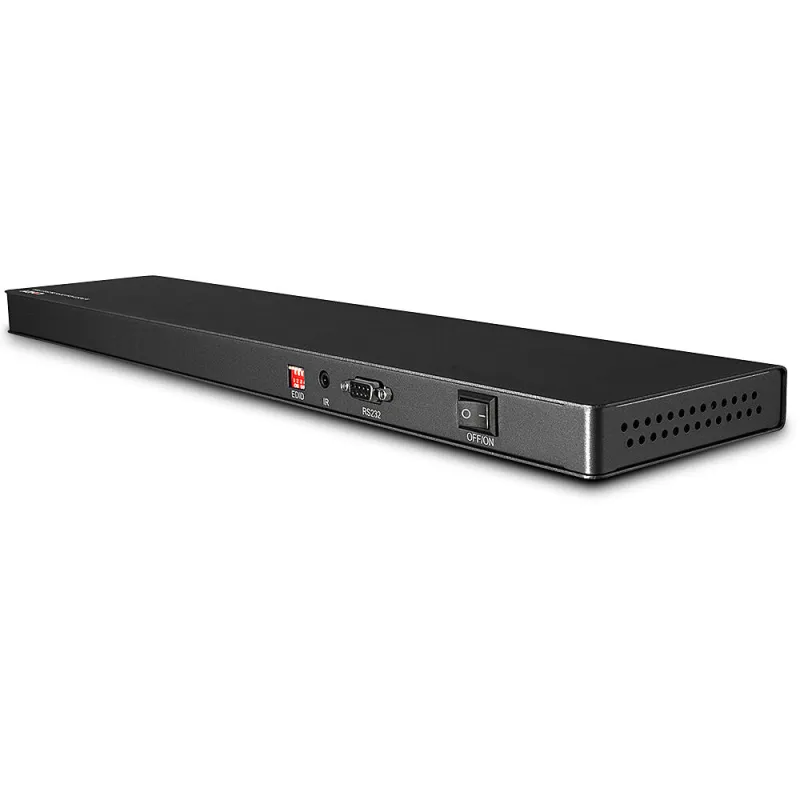

Lindy 16 Port HDMI 2.0 18G Splitter
- Distributes content from a single HDMI source across 16 HDMI displays
- Supports resolutions up to 4K@60Hz, with additional support for HDR
- HDCP 2.2 for enhanced compatibility with 4K content
- Smart EDID Management control to ensure the optimum video performance
Distributes content from a single HDMI source across 16 HDMI displays
Supports resolutions up to 4K@60Hz, with additional support for HDR
HDCP 2.2 for enhanced compatibility with 4K content
Smart EDID Management control to ensure the optimum video performance
2 year warranty
HDMI splitters are high quality solutions for distributing identical content simultaneously across several HDMI displays.
The Lindy 16 Port HDMI Splitter is a professional solution for distributing high quality HDMI content simulateneously across 16 seperate displays, when connected to a single HDMI source such as media players, PCs or set top boxes.
With support for full 4K@60Hz resolutions and HDR, content can be viewed in superior quality with a wider colour gamut and greater contrast. The splitter is perfect for creating eye-catching digital signage in retail, hospitality, conference rooms, transport hubs or impressive residential installations. HDCP 2.2 support also ensures seamless playback of 4K and Full HD content including video games, Blu-rays and on-demand video.
The splitter also includes a smart EDID dip switch for ensuring the optimum resolutions possible are shown on the connected displays.
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Serial ports quantity | 1 |
| HDMI version | 2.0 |
| Video out | 16x HDMI |
| Video port type | HDMI |
| Video ports quantity | 17 |
| Features | |
|---|---|
| Certification | CE, FCC, REACH |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| HDCP | Yes |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Housing material | Metal |
| Product colour | Black |
| Power | |
|---|---|
| Output current | 3 A |
| Output voltage | 5 V |
| Weight & dimensions | |
|---|---|
| Weight | 1.55 kg |
| Height | 25 mm |
| Depth | 105 mm |
| Width | 482 mm |
| Packaging data | |
|---|---|
| Package weight | 2.12 kg |
| Package height | 55 mm |
| Package depth | 178 mm |
| Package width | 340 mm |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Included power plug types | AU, EU, NA, UK |
| Manual | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -15 – 50 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
