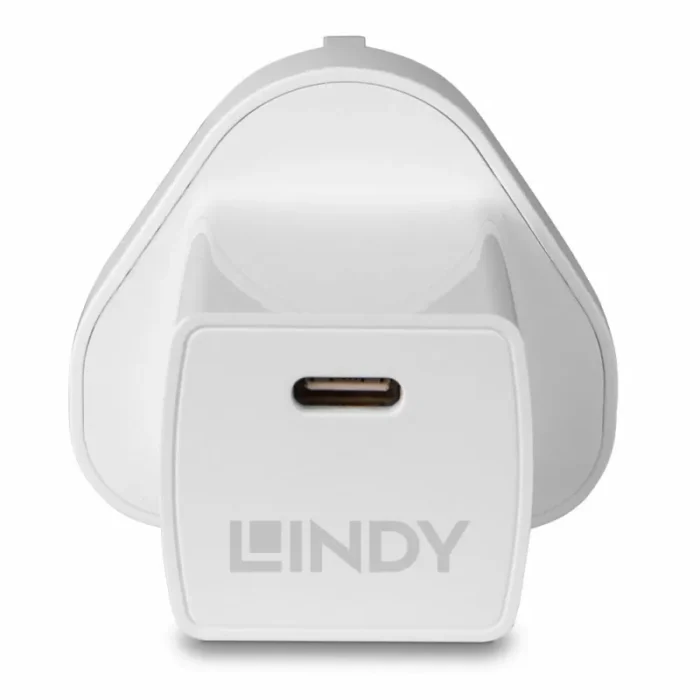

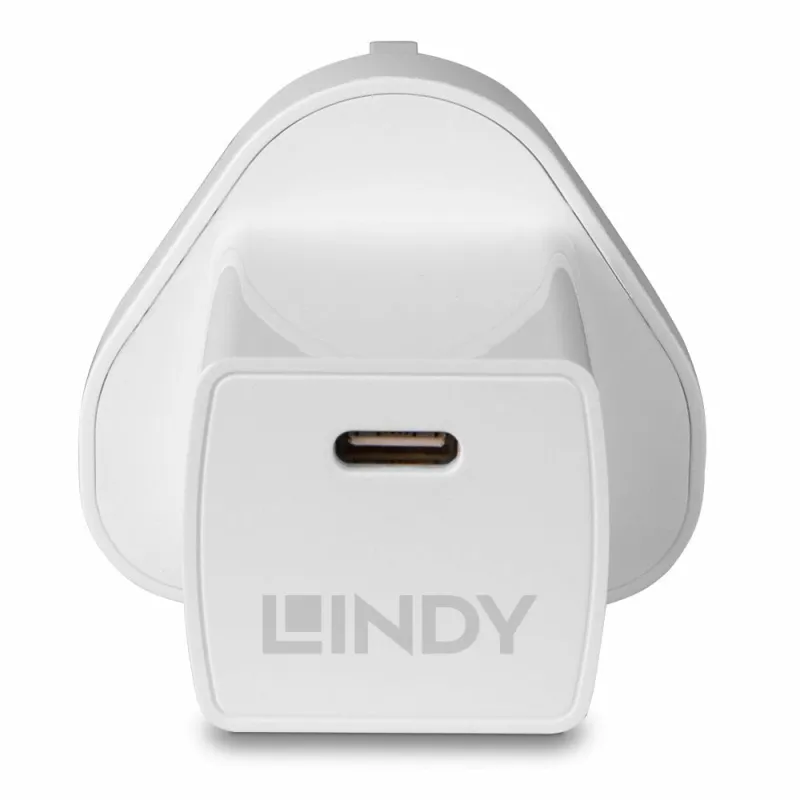

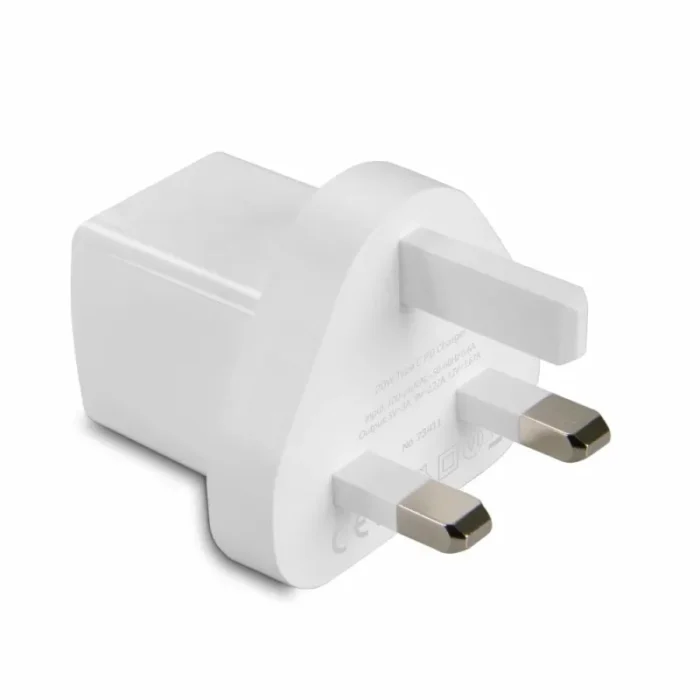

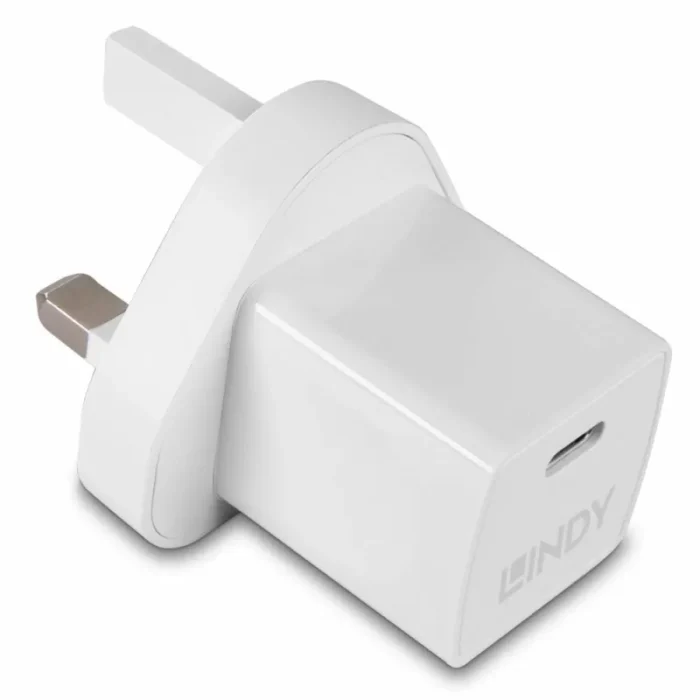

Lindy 20W USB Type C GaN Charger
- Charges and powers a device via one USB Type C port
- 20W GaN technology provides fast charging for smartphones, tablets, laptops and other mobile devices
- Compact design and lightweight for maximum mobility
- Built-in safety features as overvoltage and overcurrent protection
The Lindy 20W USB Type C PD Charger is a compact, efficient solution for charging many devices. It provides fast charging for USB Type C PD and PPS-enabled devices. Thanks to the small design the charger can easily be carried and is always available when power is needed.
Featuring a single Type C female USB port this charger is ideal for use with most popular smartphones and iOS devices. Supporting power delivery of 20W, connected devices can be provided with faster charging than what is possible from a standard Type C charger supplied with many devices.
For safe charging the device includes overcharge, overcurrent, overtemperature and short circuit protection.
| Performance | |
|---|---|
| Power protection features | Over current, Over voltage, Overheating, Short circuit |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery (USB PD) | Yes |
| Number of simultaneously connected devices (max) | 1 |
| Fast charging technology | GaN, Power Delivery 3.0 |
| Fast charging | Yes |
| USB Type-C ports quantity | 1 |
| Power source type | AC |
| Charger compatibility | Universal |
| Charger type | Indoor |
| Design | |
|---|---|
| Gallium nitride (GaN) transistors | Yes |
| Connector material | Copper |
| Housing material | Polyvinyl chloride (PVC) |
| Product colour | White |
| Power | |
|---|---|
| Compatible power plug types | UK |
| Average active efficiency | 5V 83.37%, 9V 87.32%,12V 86.40% |
| Efficiency at low load (10%) | Yes |
| Power consumption (no load) | 0.075 W |
| Output current (12V) | 1.67 A |
| Output current (9V) | 2.22 A |
| Output current (5V) | 3 A |
| Output voltage accuracy (±) | 5% |
| Minimum output voltage | 5 V |
| Maximum output voltage | 12 V |
| Maximum power | 20 W |
| Input current | 0.5 A |
| Input frequency | 50 – 60 Hz |
| Input voltage | 100 – 240 V |
| Weight & dimensions | |
|---|---|
| Weight | 40 g |
| Height | 29.6 mm |
| Depth | 31 mm |
| Width | 28 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 60 g |
| Package height | 45 mm |
| Package depth | 100 mm |
| Package width | 80 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 90% |
| Storage temperature (T-T) | -20 – 80 °C |
| Operating temperature (T-T) | 0 – 25 °C |
| Packaging content | |
|---|---|
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Certificates | |
|---|---|
| Compliance certificates | CE, REACH, RoHS, UKCA |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
