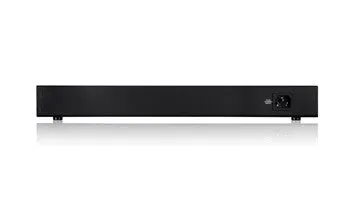

Linksys LGS124P-UK network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 1000BASE-T, 100BASE-TX, 10BASE-T
- MAC address table: 8000 entries
- 1U Rack mounting
- Power over Ethernet (PoE)
Features:
– Wired connection speed up to 1,000 Mbps
– 24 Gigabit Ethernet autosensing ports
– Quality of Service (QoS) traffic prioritization
– Power over Ethernet (PoE) support
– Easy plug & play connection
| Management features |
| Quality of Service (QoS) support |
Yes |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Gigabit Ethernet (copper) ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
| Auto-sensing |
Yes |
| Flow control support |
Yes |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-TX, 10BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Data transmission |
| Throughput |
1.488 Mpps |
| MAC address table |
8000 entries |
| Design |
| Number of fans |
1 fan(s) |
| LED indicators |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| Power |
| Power consumption (typical) |
17.65 W |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Number of power supply units |
1 |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
120 W |
| Power over Ethernet plus (PoE+) ports quantity |
12 |
| Power over Ethernet (PoE) |
Yes |
| Other features |
| Bandwidth |
48 Gbit/s |
| Operational conditions |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Weight & dimensions |
| Weight |
2.76 kg |
| Height |
44 mm |
| Depth |
200 mm |
| Width |
440 mm |
| Certificates |
| Certification |
FCC Class A, CE, UL, CB |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
