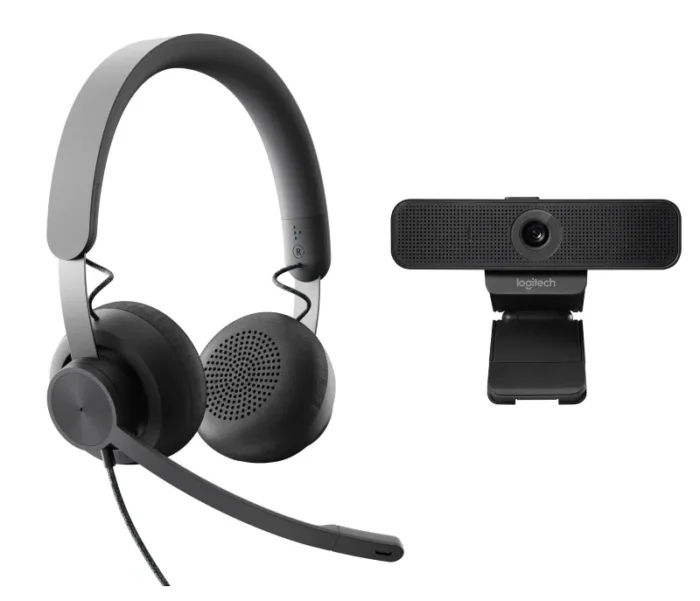

Logitech Zone Wired UC
- Zone Wired is designed with generously-sized 40 mm drivers to deliver full-bodied bass, crisp higher frequencies and incredibly low distortion creating amazing sound for video call and music
- By isolating your voice from any acoustic clutter around you, the noise-cancelling dual mic technology accurately suppresses distracting sounds to deliver superbly clearer audio for calls and video meetings
- The Teflon-coated stainless steel headband features a silicone head cushion and memory-foam ear pads that provide a comfortable fit throughout the workday in a lightweight, contemporary style
- Intuitive in-line controls on the tangle-free cable that are always at your fingertips to adjust volume, mute, answer/end/reject calls, and play/pause music
- The Logi Tune Desktop mini app provides full EQ and sidetone control, quickly tests mic/speaker audio levels, and lets you set mic gain at whatever volume works best for you
- Compatible with popular calling platforms such as Microsoft® Teams, Skype for Business, Google Voice. Compatible with integrated mute controls for Zoom. Works with other applications to ensure compatibility and seamless integration
| Performance | |
|---|---|
| Tripod mounting supported | Yes |
| Product colour | Graphite |
| Number of persons | 1 person(s) |
| Product type | Personal video conferencing system |
| Video | |
|---|---|
| Resolution at capture speed | 1280×720@30fps, 1920×1080@30fps |
| Video formats supported | H.264 |
| Maximum frame rate | 30 fps |
| Supported video modes | 720p, 1080p |
| Maximum video resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Audio | |
|---|---|
| Driver diameter | 4 cm |
| Maximum input power (headphone) | 30 mW |
| Line-out impedance | 32 Ω |
| Frequency range | 20 – 16000 Hz |
| Built-in speaker(s) | Yes |
| Network | |
|---|---|
| Ethernet LAN | No |
| Camera | |
|---|---|
| White balance | Auto |
| Focus adjustment | Auto |
| Field of view (FOV) angle | 78° |
| Digital zoom | 1.2x |
| Zoom capability | Yes |
| Megapixel (approx.) | 3 MP |
| Microphone | |
|---|---|
| Microphone direction type | Unidirectional |
| Microphone frequency | 100 – 16000 Hz |
| Microphone sensitivity | -48 dB |
| Features | |
|---|---|
| Telepresence | No |
| Computer system | |
|---|---|
| Other operating systems supported | Linux |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Logistics data | |
|---|---|
| Master (outer) case gross weight | 3.92 kg |
| Master (outer) case length | 351 mm |
| Master (outer) case width | 335 mm |
| Master (outer) case height | 220 mm |
| Harmonized System (HS) code | 85176990 |
| Power | |
|---|---|
| Power source type | USB |
| Weight & dimensions | |
|---|---|
| Package weight | 877 g |
| Package height | 86 mm |
| Package depth | 326 mm |
| Package width | 203 mm |
| Ear pad dimensions (W x D x H) | 65.84 x 18.75 x 65.84 mm |
| Receiver dimensions (WxDxH) | 15.4 x 7.9 x 21.5 mm |
| Weight | 211 g |
| Height | 165.9 mm |
| Depth | 66.8 mm |
| Width | 179.7 mm |
| Headset dimensions (WxDxH) | 179.73 x 66.77 x 165.93 mm |
| Camera weight | 170 g |
| Camera dimensions (WxDxH) | 126 x 45 x 73 mm |
| Packaging content | |
|---|---|
| Packaging content | Zone Wired headset with inline controller and USB-C connectorUSB-A adapterTravel Bag for headsetC925e WebcamUser documentation for headset & webcam |
| Microphone included | Yes |
| Manual | Yes |
| Camera included | Yes |
| Power cable length | 1.83 m |
| Cables included | USB |
| Headset included | Yes |
