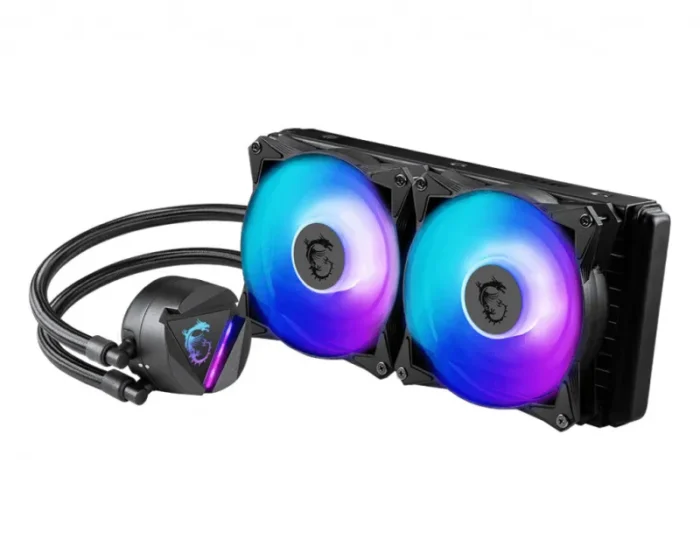

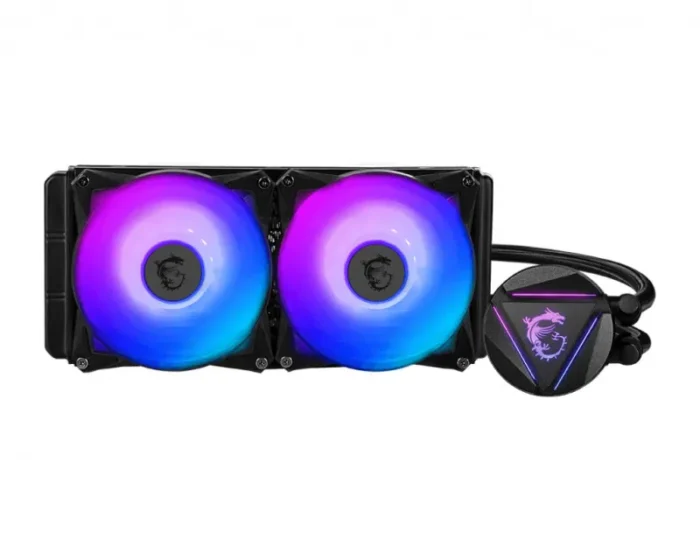

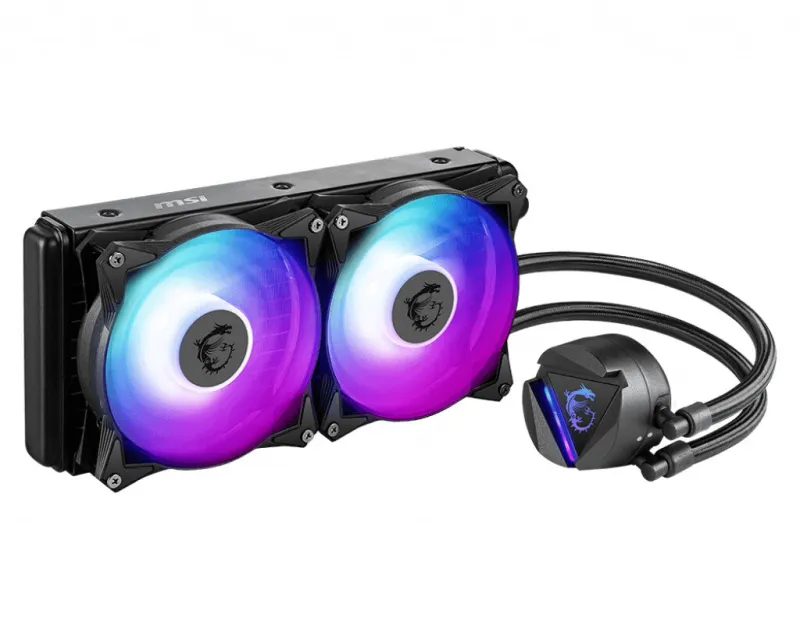

MSI MAG CORELIQUID 280R Liquid CPU Cooler ‘280mm Radiator, 2x 140mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms’
- Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
- The pump has been integrated into the radiator for sound dampening and noise reduction
- Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
- A split liquid pathway through the radiator rapidly dissipates heat. Cooled liquid is then pumped back into the loop
- Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2
CONQUER THE BATTLEFIELD
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
The newly introduced MAG CORELIQUID has everything you’re looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump’s life expectancy by moving it away from the heat source.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
MORE SILENCE THAN EXPECTED
MAG CORELIQUID 280R’s noise level is significantly lower than that of competitor’s by 14%.
EXTENSIVE COMPATIBILITY
Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
| Performance | |
|---|---|
| Pump motor speed | 4200 RPM |
| Fan speed (max) | 1800 RPM |
| Fan static pressure | 2.29 mmH2O |
| Fan speed (min) | 500 RPM |
| Fan bearing technology | Double ball bearing |
| Fan noise level (max) | 33.28 dB |
| Fan noise level (min) | 14.8 dB |
| Pulse-width modulation (PWM) support | Yes |
| Minimum airflow (imperial) | 84.36 cfm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Type | All-in-one liquid cooler |
| Suitable location | Computer case |
| Design | |
|---|---|
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 2 fan(s) |
| Radiator material | Aluminium |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Fan voltage | 12 V |
| Fan current | 0.19 A |
| Pump current | 0.34 mA |
| Pump power consumption | 4.08 W |
| Fan power consumption | 2.28 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Waterblock height | 4.86 cm |
| Waterblock depth | 6.68 cm |
| Waterblock width | 8.06 cm |
| Radiator height | 2.7 cm |
| Radiator depth | 14 cm |
| Radiator width | 31.2 cm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
